HUAWEI eKitOptiX FG630 XGS-PON Edge ONT Terminal, 4x Gigabit Ethernet, 10G Downstream, biela, Europäischer Adapter 50088947

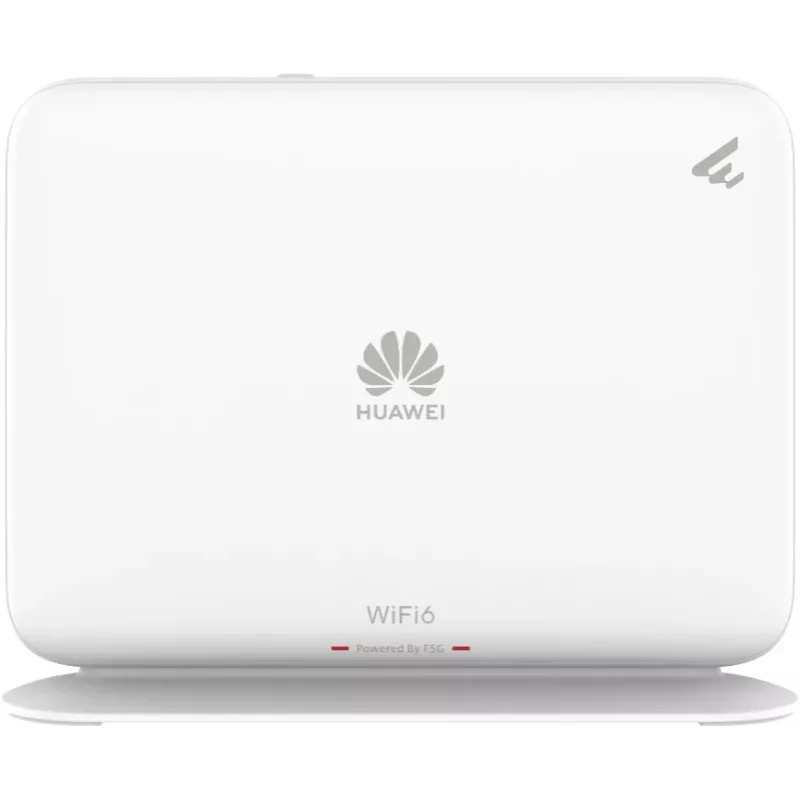

The HUAWEI eKitOptiX FG630 stands apart from typical ONTs by delivering full 10 Gbps symmetrical XGS-PON performance in a compact, white desktop or wall-mount enclosure. Designed for fiber-to-the-home and small-office deployments, it bridges the gap between carrier-grade reliability and straightforward local management. With four Gigabit Ethernet ports and an SC/UPC fiber interface, this edge terminal is ready for high-bandwidth services like 4K streaming, cloud gaming, and large file transfers without the complexity of a full router.

Highlights

• XGS-PON WAN interface with 10 Gbps downstream and upstream data rates
• Four 10/100/1000 Mbps RJ-45 Ethernet ports for wired devices
• SC/UPC fiber connector for standard single-mode fiber drops
• Supports bridge mode for integration with existing routers or firewalls
• Managed via OMCI or local web UI for flexible provisioning
• White shell with European standard 12V DC power adapter included
• Low power consumption under 8 W, suitable for always-on operation

In daily use

Installation is straightforward: connect the fiber patch cord to the SC/UPC port, plug in the included European power adapter, and link your devices to any of the four Gigabit LAN ports. The front-panel LEDs for power, PON, LOS, and LAN give instant status feedback. In bridge mode, the FG630 passes traffic transparently to your own router, preserving your network design. VLAN tagging (802.1Q) and QoS based on 802.1p/DSCP ensure that voice, video, and data can be prioritized correctly. IPv6 support future-proofs your deployment, while the operating temperature range of 0°C to 40°C and 5% to 95% non-condensing humidity cover most indoor environments.

Full specifications

• PON interface: XGS-PON, 1 x SC/UPC
• Ethernet ports: 4 x Gigabit Ethernet (RJ-45)
• Downstream data rate: 10 Gbps
• Upstream data rate: 10 Gbps
• Power supply: 12V DC, European standard adapter
• Max power consumption: < 8 W
• Management: OMCI, Web UI
• Operating temperature: 0°C to 40°C
• Operating humidity: 5% to 95% RH (non-condensing)
• Mounting: Desktop or wall-mount
• LED indicators: Power, PON, LOS, LAN
• VLAN support: IEEE 802.1Q
• QoS: Based on 802.1p and DSCP
• IPv6 support: Yes
• Operating mode: Bridge mode
• Product colour: White

Final note

The HUAWEI eKitOptiX FG630 is a dependable edge ONT for service providers and advanced users who need maximum fiber throughput with minimal overhead. Its 10G XGS-PON capability and four Gigabit LAN ports make it a future-ready choice for bandwidth-intensive applications.
