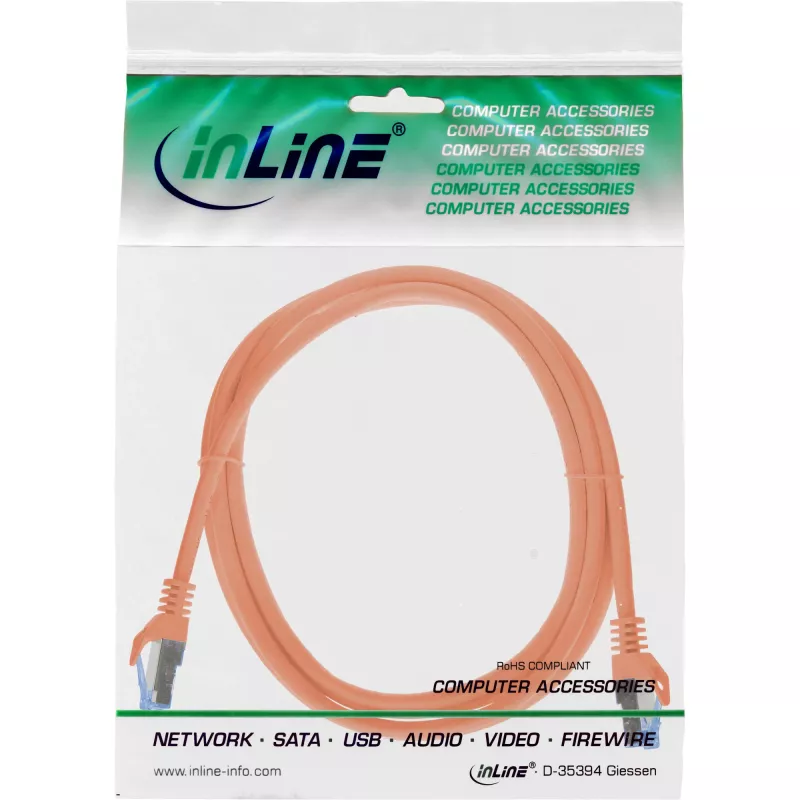

InLine 72602O sieťový kábel oranžový 2 m Cat6a S/FTP (S-STP)

Cost-efficient network solution with high-quality CCA alloy:40% copper content for improved conductivity and reduced signal loss.
Powerful for modern networks:Supports up to 10 Gbit/sand a bandwidth of 500 MHzfor stable connections.
4PPOE support for maximum efficiency:PoE, PoE+ and PoE++ with up to 90 watts of powerfor network devices such as cameras, access points or VoIP telephones.
Flexible, flame-retardant cable sheath:The TPE sheath (LSZH)offers high flexibility for tight installation conditions and reduces smoke development in the event of fire.
Safe & interference-free connection:S/FTP shielding (pair and overall shielding) reliably protects against electromagnetic interference.

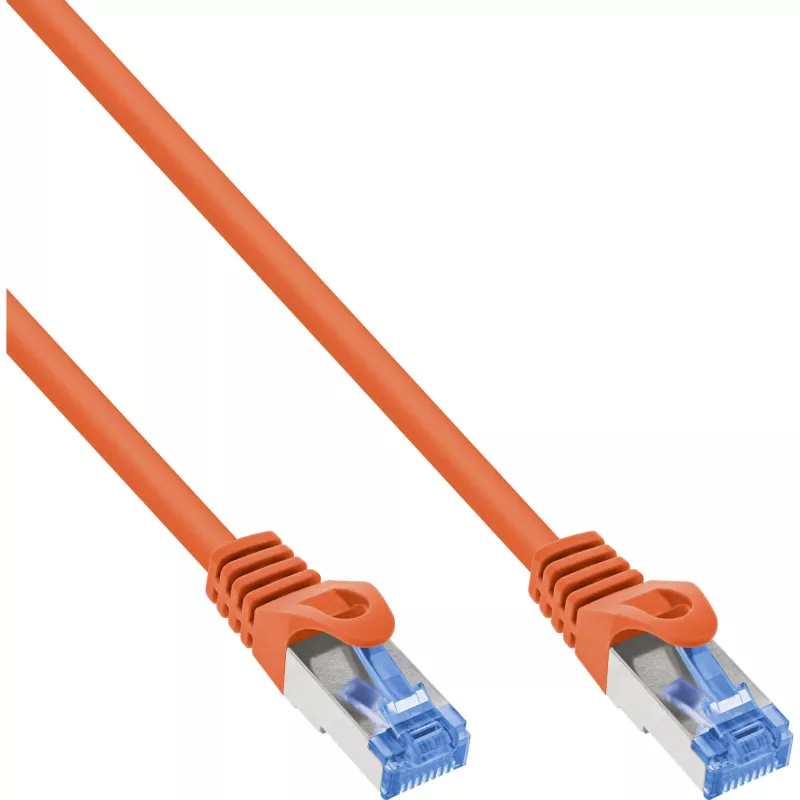

The InLine® Cat.6A S/FTP patch cable is the perfect choice for network infrastructures that require high performance at an economical price. Thanks to a high-quality CCA alloy of copper-clad aluminum conductors with 40% copper content, it offers improved conductivity compared to conventional CCA cables. This reduces electrical resistance and enables stable transmission at up to 10 Gbit/s over distances of up to 10 meters.
Another advantage: the cable is 4PPOE-capable and supports PoE, PoE+ and PoE++ with up to 90 watts of power. This means that IP cameras, VoIP telephones and access points can be efficiently supplied with power via the network cable - a cost-effective solution for professional applications.The double shielding (S/FTP) minimizes interference and ensures a stable connection even in demanding environments such as data centers, industrial halls or office buildings. The halogen-free TPE jacket (LSZH) is not only flame-retardant, but also particularly flexible – ideal for installations with limited space.
Please note:Due to the material properties of CCA, this cable is limited to lengths of up to 10 meters. For longer distances, we recommend our copper patch cables, which guarantee consistent signal quality.
Additional technical specifications:

Conductor material: High-quality CCA alloy made from copper-clad aluminum conductors (40% copper)
Sheath material: TPE (LSZH – flame retardant, halogen-free, flexible)
Operating temperature: -20 to +75 °C
Outlet diameter: 6.0 mm
Population: 1:1 according to T568B
PoE support: 4PPOE, compatible with PoE/PoE+/PoE++ (up to 90 W)

InLine 72602O. Cable length: 2 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Orange

How to use

Connect one RJ-45 connector to your network device (switch, router, patch panel or workstation) and the other end to the corresponding port. Ensure connectors are fully inserted until a click is felt to secure the connection. Route the cable to avoid sharp bends and mechanical stress; retain a service loop where access is required. For optimal performance, use within Cat6a-compliant patching systems and avoid running the cable parallel to power lines for extended distances.

Recommendations

For installations demanding maximum interference protection, pair this S/FTP Cat6a cable with shielded RJ-45 ports and properly grounded patch panels. Verify compatibility with PoE/4PPoE equipment when powering devices over Ethernet; CCA conductors have different electrical characteristics than pure copper, so consult equipment specifications for power delivery limits.
