InLine 92504C Káblový adaptér Micro USB / svorkovnica, 5-pólová čierny, zelený

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry:For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

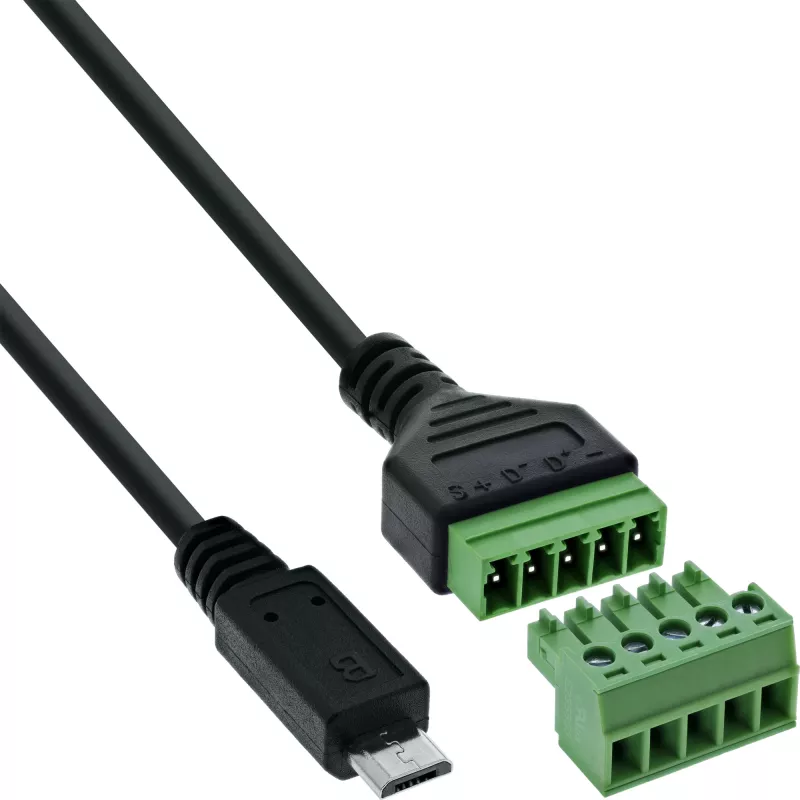

The InLine® Micro USB 2.0 terminal block adapter with 5-wire connection cable combines the advantages of a plug-in USB connection with the flexibility of open signal wiring. The micro USB connector is directly connected to a 5-pin screw terminal – ideal for test stations, diagnostic devices, embedded systems, or laboratories.

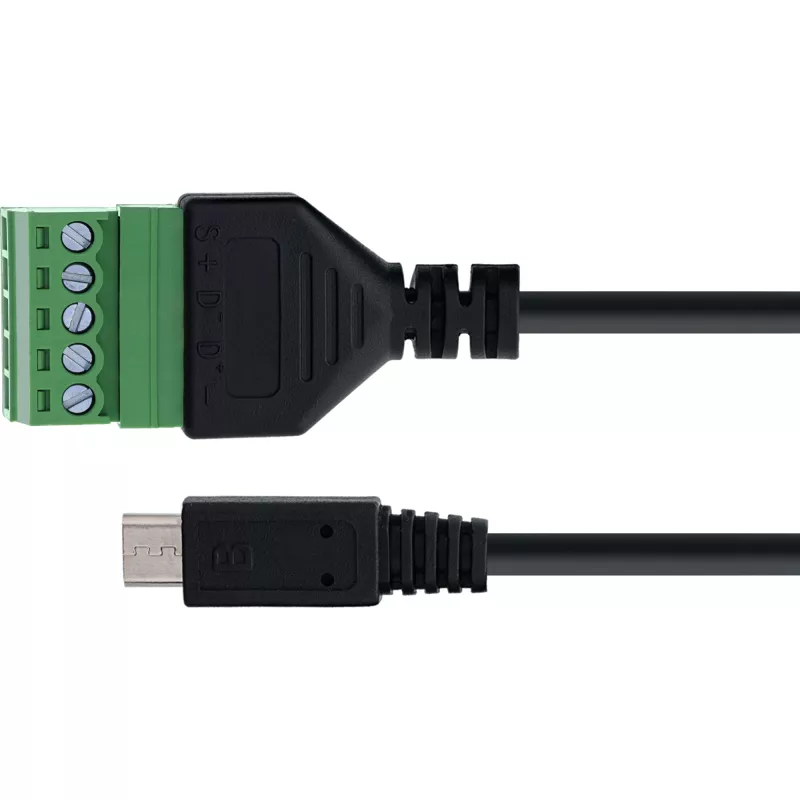

The terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and enable clear and reliable signal assignment. The connection range of 16–26 AWG is covered by pressure plate screw terminals with a 5.0 mm grid dimension. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The integrated connection cable (1 m) reduces wiring effort and increases mobility – e.g., for mobile test devices, development boards, or machine connections. An EVA insulation layer provides additional protection when mounting on conductive surfaces.

USB interface: Micro USB 2.0, plug
Cable length:approx. 1 m (PVC, permanently integrated)
Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS):5 V DC
Test voltage (insulation resistance):300 V AC / 1 minute
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

InLine 92504C. Connector(s): Micro USB / Terminal block, 5-pin, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 20 x 1000 x 11 mm, Weight: 31 g, Cable length: 1 m. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

How to use

Connect the micro USB plug to the host or device. Strip the conductor ends within the specified 16–26 AWG range, insert them into the corresponding labeled terminal positions (1 through 5) and secure each conductor by tightening the screw terminal with a flat‑head screwdriver (≤ 2.5 mm). Ensure the cable routing and the EVA insulated underside do not contact sharp conductive edges. The permanently integrated cable removes the need for additional connectors or soldering.

Recommendations

Use the adapter for temporary or semi‑permanent connections in test, diagnostic or prototyping environments. For continuous high‑current applications choose appropriate USB wiring and verify that 0.7 A per pin meets your power requirements. Avoid exposing the connector and terminals to liquids and verify connections before applying power.
