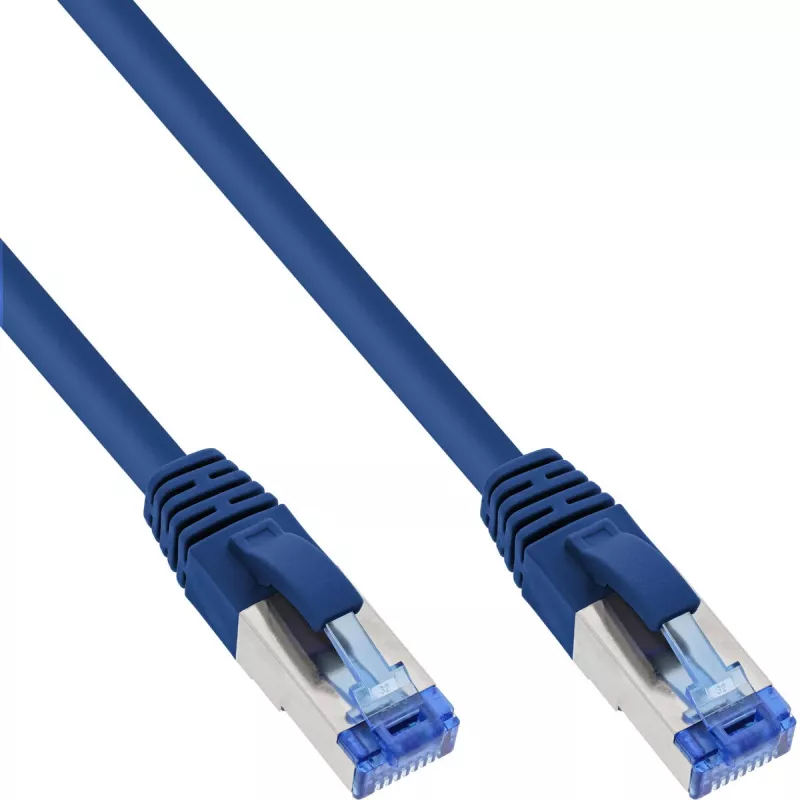

InLine B-76814B Cat6A S/FTP (PiMF) bezhalogénový prepojovací kábel, 1,5 m, modrý, balenie 50 ks

The InLine B-76814B is a Cat6A S/FTP (PiMF) halogen-free patch cable in blue, supplied as a 50-pack. It features a halogen-free LSZH jacket and RJ45 connectors with 50µ" gold-plated contacts and snap-in protection.

Key features

• Cat6A S/FTP (PiMF) construction
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts and snap-in protection
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• PoE/PoE+/PoE++ support

Specifications

• Brand: InLine
• MPN: B-76814B
• Product colour: Blue
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper wire
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free (LSZH), compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector type: RJ45 plug straight (both ends)
• Assignment: 1:1
• Conductor material: CU (copper)
• Length: 1.50 m
• Outer diameter: 6.2 mm
• Diameter: AWG 26
• Operating temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Max. supported data transfer rate: 10 Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W

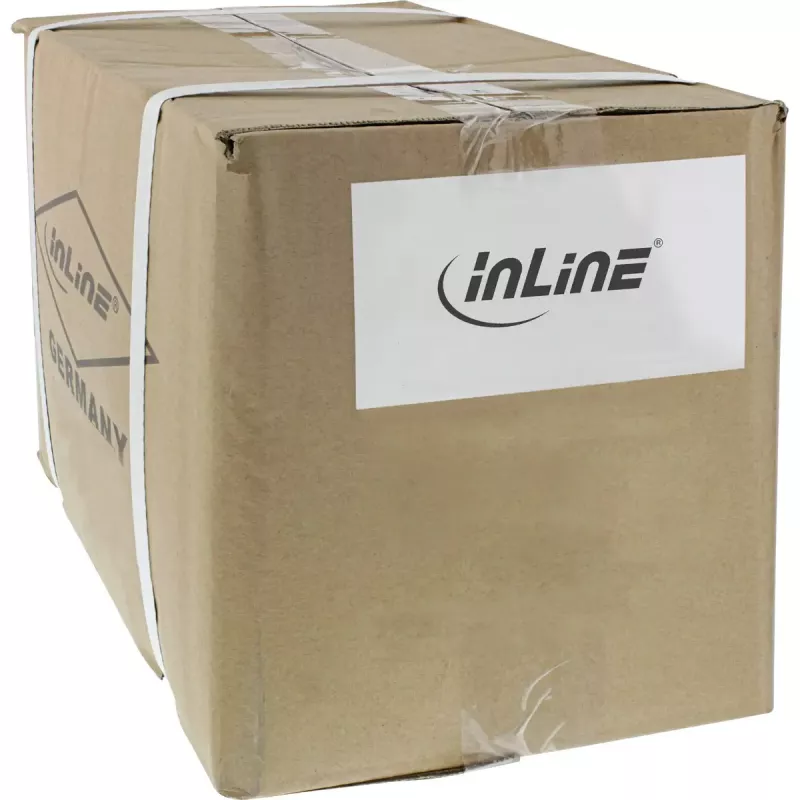

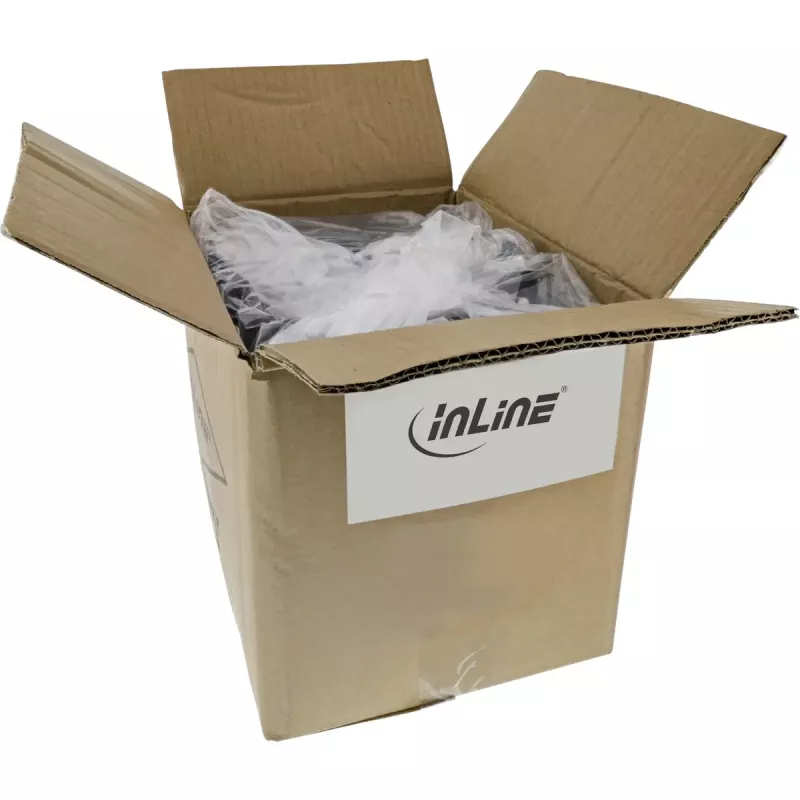

• Packaging: Bulk EcoPack (50 pieces in a PE bag)
