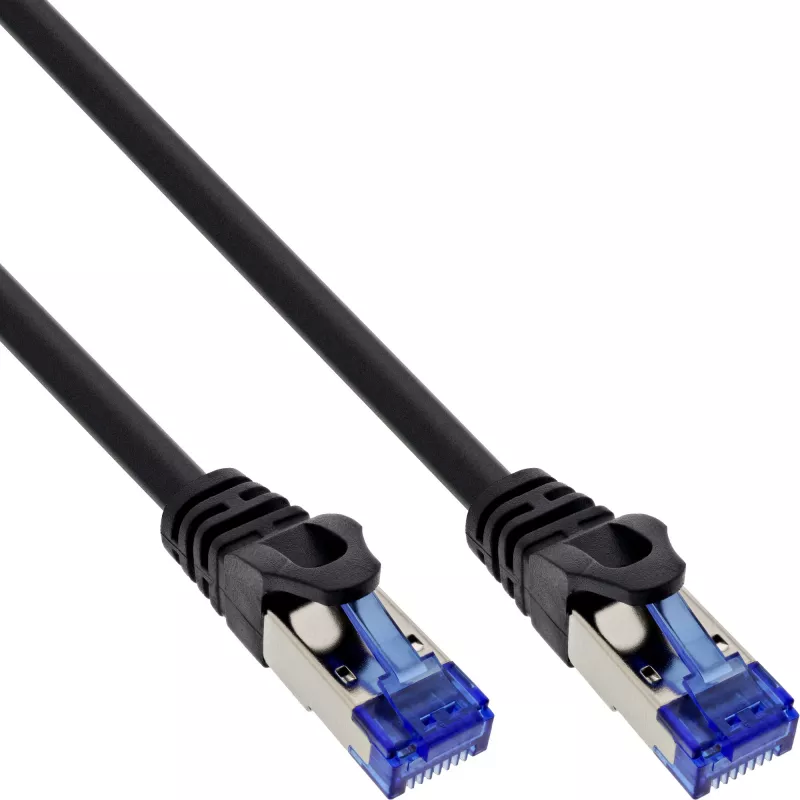

InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m

InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
InLine patch kábel armovaný, U/FTP, Cat.6A, čierny, 15m
76,38 €
PDF
PDF
Sklad 82 Kód 1427828 Model 75515S Záruka 2 roky

Doprava a vrátenie tovaru

Predpokladané doručenie štvrtok 3. decembra
O stave zásielky Vás budeme priebežne informovať prostredníctvom nášho podrobného systému sledovania zásielok
Možnosti platby
Platobná kartaVisaMastercardPayPalApple PayGoogle PayBankový prevod

Položte otázku – AI asistent odpovie hneď.

Popis

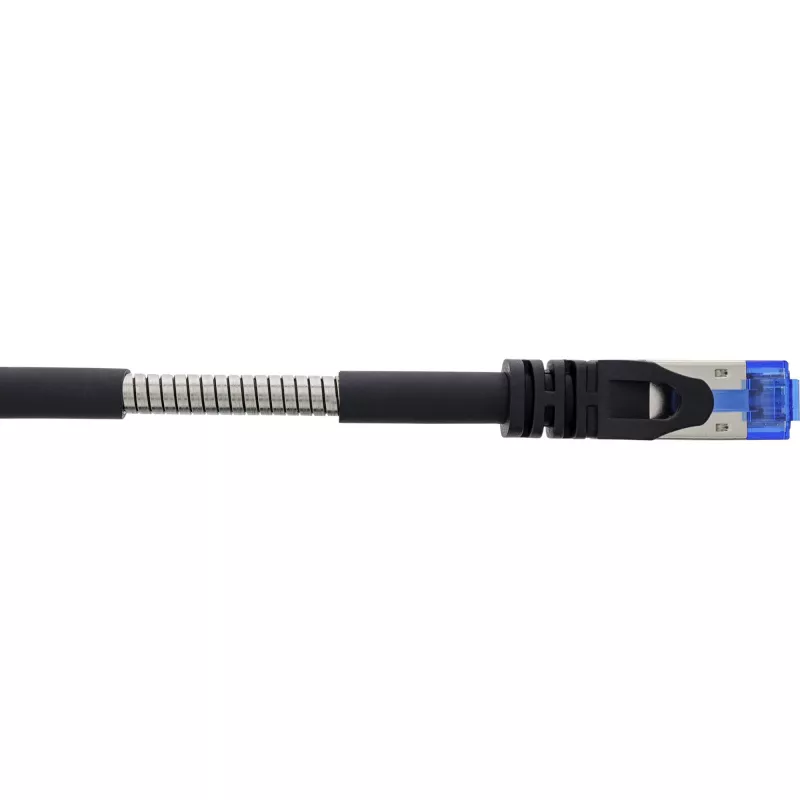

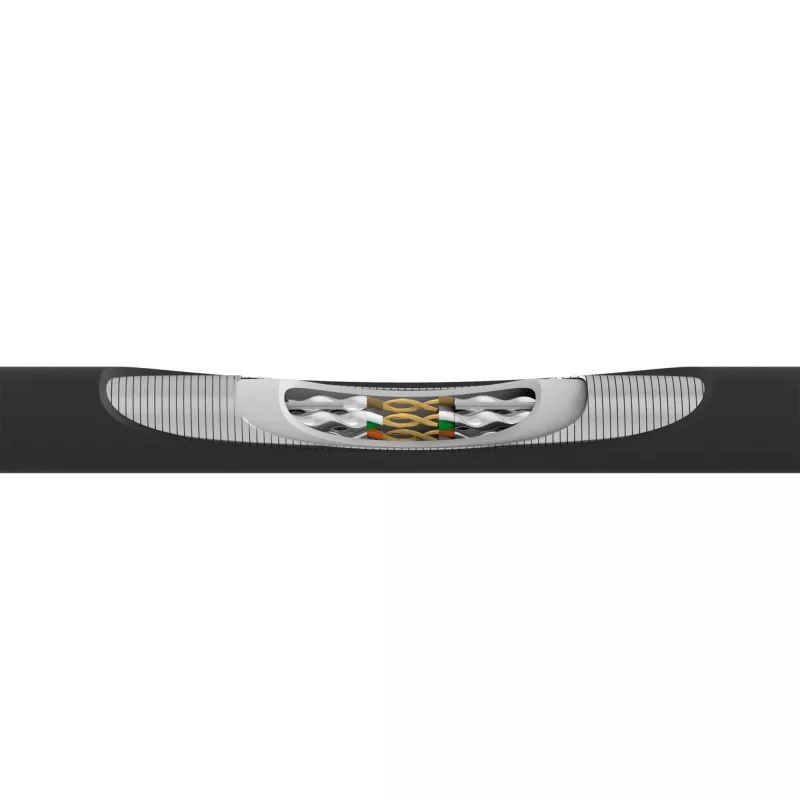

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.

Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:

Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)

Certification: Passes Fluke DSX 8000 channel test

InLine Patch cable armoured, U/FTP, Cat.6A, black, 15m. Cable length: 15 m, Cable standard: Cat6a, Cable shielding: S/UTP (STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Black

How to use

Connect the RJ‑45 plugs to corresponding network ports ensuring the connectors are fully inserted and the shielding continuity is maintained when used with shielded jacks or patch panels. Route the cable to avoid sharp bends and avoid exceeding the specified bending radius. For outdoor or exposed installations, secure the cable with appropriate clamps and protect connectors from direct water ingress. Follow local cabling standards and the device manufacturer’s installation guidelines for PoE equipment.

Recommendations

For long‑term reliability in harsh or high‑traffic locations, use shielded RJ‑45 patch panels and grounding where required. Inspect connector terminations periodically and avoid repeated mechanical stress at connector ends to maintain performance.

Hlavné vlastnosti
  • Outdoor event cabling (shows, concerts)
  • Billboards and advertising signs
  • Industrial and harsh‑environment network runs
  • Backbone and horizontal cabling where extra mechanical protection is required
  • Cable type: Cat.6A U/FTP
  • Length: 15 m
  • Conductor: 28 AWG
  • Insulation: HDPE
  • Inner jacket: SUS204 stainless steel
  • Outer sheath: highly elastic PVC
  • Outer diameter: 7.3 mm
  • Connector: 8P8C (RJ‑45) fully shielded, 50 µ" gold‑plated contacts
  • Bandwidth: 500 MHz
  • Rated voltage: 30 V
  • PoE/PoE+/PoE++ support: up to 90 W
  • Force resistance (short pressure): 2000 N; (sustained): 500 N
  • Temperature range: installation 0 to 50 °C; operation -20 to 60 °C
  • Electrical: DC resistance ≤ 28.4 Ω/100 m; impedance 100 Ω; capacitance 5600 pF/100 m; propagation delay ≤ 545 ns/100 m; delay skew ≤ 45 ns/100 m
  • Certification: Passes Fluke DSX 8000 channel test

Parametre

Parametre
Celkový výkon Power over Ethernet (PoE)
90 W
Certifikáty zhody
RoHS
Dĺžka kábla
15 m
Farba produktu
Čierna
Frekvencia
500 MHz
Hĺbka
15000 mm
Hĺbka balenia
330 mm
Hmotnosť
1.35 kg
Hmotnosť balenia
1.36 kg
Konektor 1
RJ-45
Konektor 2
RJ-45
Materiál plášťa
Polyetylén s vysokou hustotou (HDPE), nehrdzavejúca oceľ, polyvinylchlorid (PVC)
Množstvo v balení
1 pc(s)
Napájanie cez Ethernet (PoE)
Áno
Norma kábla
Cat6a
Podporovaný typ Power over Ethernet (PoE)
PoE+, PoE++ (4PPoE)
Pohlavie konektora 1
Samec
Pohlavie konektora 2
Samec
Pokovovanie kontaktov konektora
Zlato
Prevádzková teplota (T-T)
-20 - 60 °C
Rozmery (ŠxVxH)
11 x 15000 x 14 mm
Šírka
11 mm
Šírka balenia
305 mm
Tienenie kábla
U/FTP (STP)
Tvar kábla
Okrúhly
Typ balenia
Polyetylénové vrecko
Veľkosť vodiča AWG
28
Vonkajší priemer
7.3 mm
Výška
14 mm
Výška balenia
60 mm
