InLine PCI Multi I/O radič karta 2 DB9 sériové porty

Reliable expansion for serial communication:Easily add two RS232 interfaces to your desktop system for industrial applications, legacy hardware and special projects.
Compatible with industry standards:Supports UART protocols (16C450/550/552) and ensures maximum flexibility when integrating into existing systems.
High transfer speed:The integrated CH351Q chipset enables stable data rates of up to 2 Mbps when both ports are used simultaneously.
Universal operating system support:Compatible with Microsoft Windows 98SE and above, as well as modern Linux kernels from 2.4.x for versatile use.
Easy installation in PCI systems:Thanks to the PCI V2.2 standard, you can install the card quickly and easily in almost any desktop system.

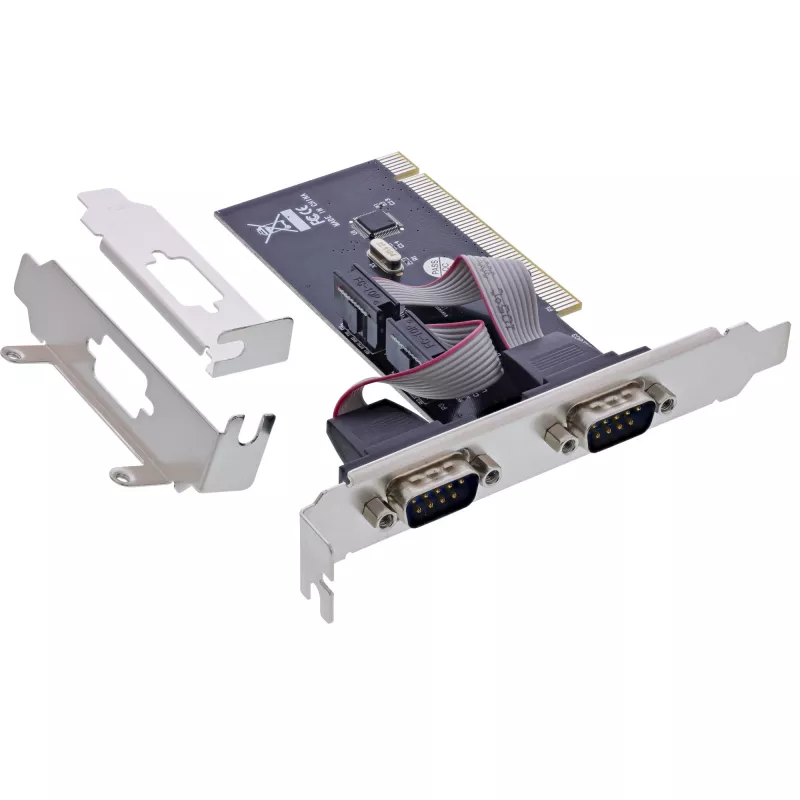

InLine® interface card, 2x 9-pin serial, PCI – Reliable expansion for your communication needs

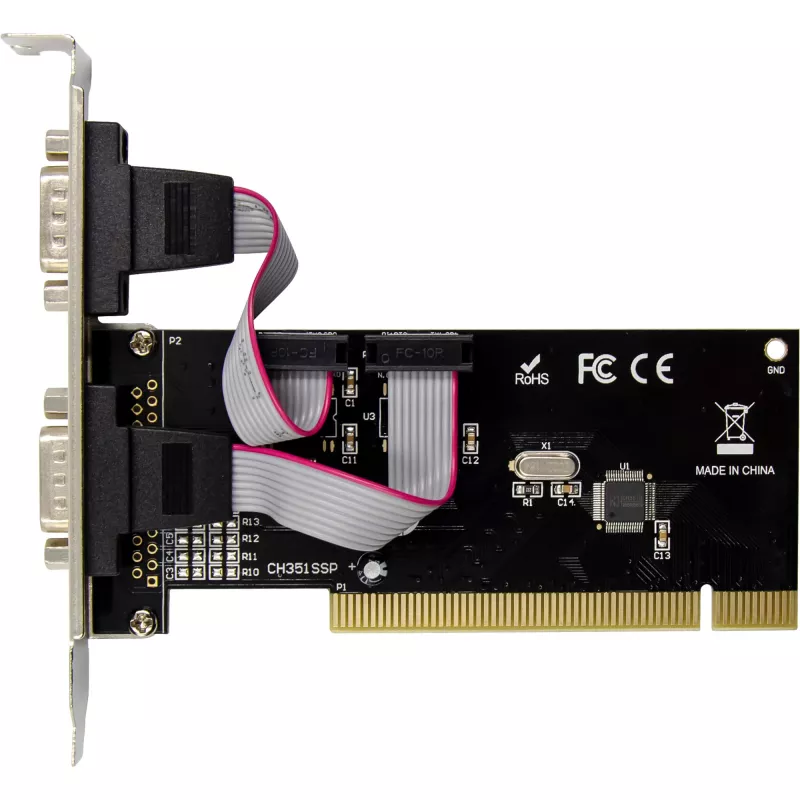

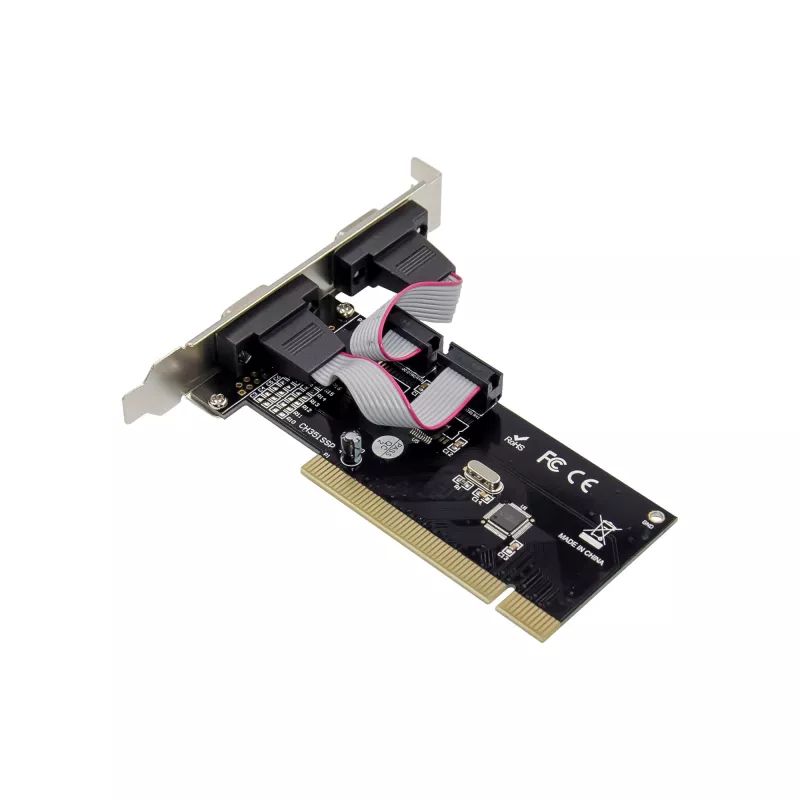

The InLine® PCI interface card offers a simple and reliable way to expand your desktop systems with two additional RS232 serial interfaces. Based on the proven CH351Q chipset, the card supports high transfer rates of up to 2 Mbps and ensures stable data communication – ideal for industrial control systems, older printing systems, serial networks and specialised hardware projects.

Chipset: WCH CH351Q
Bus interface: PCI V2.2
UART compatibility: 16C450, 16C550, 16C552
FIFO: 16 bytes for sending and receiving per connection
Maximum transfer rate: up to 2 Mbps
Supported modes: SPP, PS/2, EPP, ECP (IEEE1284 compatible)
Supported serial formats: 5-6-7-8 bits
Stop bits: 1 or 2
Flow control: CTS/RTS hardware handshake
Operating systems: Microsoft Windows 98SE or newer, Server 2003 or newer, Linux Kernel 2.4.x or newer
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine PCI Multi I/O Controller Card 2 DB9 Serial Ports. Host interface: PCI, Output interface: Serial, Host interface gender: Male. Country of origin: China. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 98SE, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2003, Windows Server 2007, Windows Server 2008, Windows Server 2012, Windows Server.... Width: 125 mm, Depth: 1.35 mm, Height: 125 mm. Package width: 140 mm, Package depth: 150 mm, Package height: 30 mm

How to use

Power down the PC, open the case and insert the card into a free standard PCI slot. Secure the card to the chassis and close the case. Boot the system and install the appropriate drivers for your operating system if they are not detected automatically. Connect serial devices to the DB9 ports using standard serial cables and configure port parameters (baud rate, parity, data bits, stop bits) in the operating system or application to match the connected devices.

Recommendations

Use shielded serial cables and proper grounding for industrial environments to reduce electrical interference. Verify driver compatibility with your specific Windows or Linux distribution and test communication settings with the target device before deploying in production.
