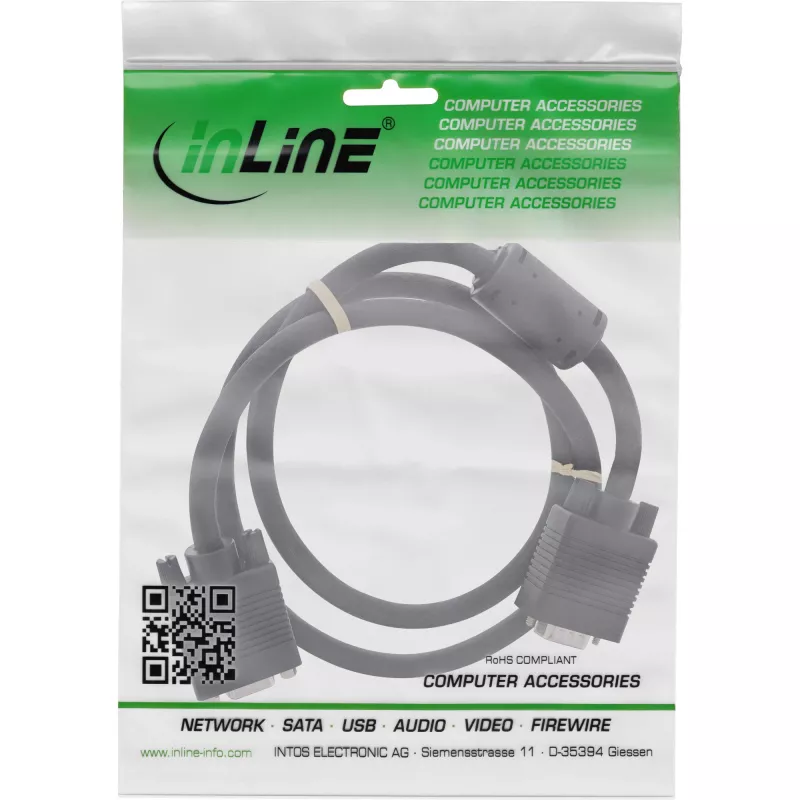

InLine S-VGA predlžovací kábel 15HD konektor samec / samica čierny 0,5 m

Reliable VGA extension:1:1 interconnected cable with HD15 plug to HD15 socket for clear signal transmission.
High-quality signal quality:Three coaxial cables (RGB) and seven data cores ensure stable image transmission.
Effective protection against interference:Overall and individual shielding and ferrite core reduce electromagnetic interference.
Easy installation:Color-coded die-cast connectors in accordance with the PC99 standard support error-free cabling.
Rugged workmanship:The robust connector design and precise pin assignment enable long-lasting use.

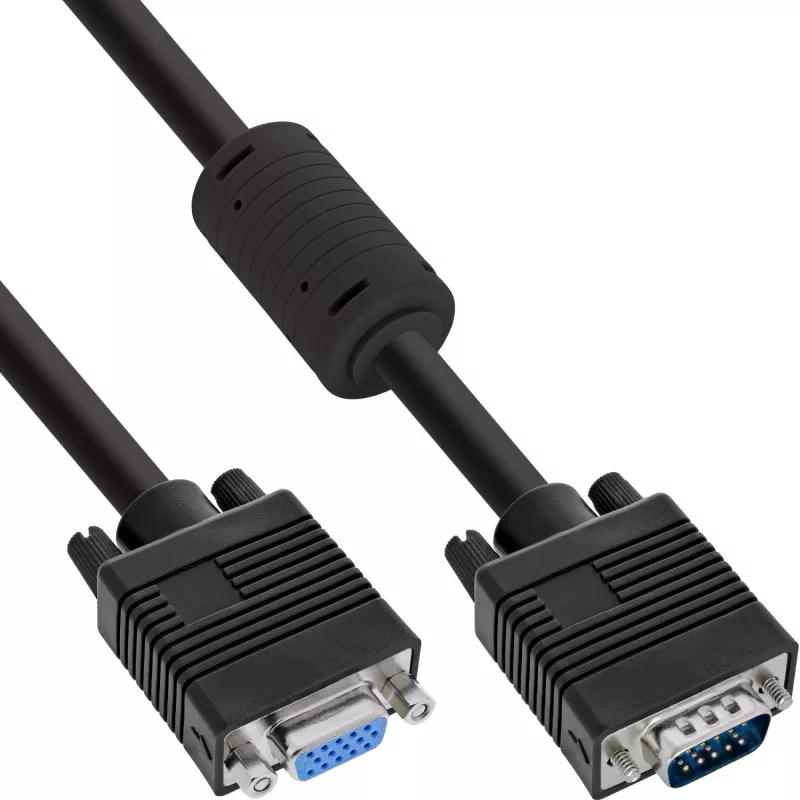

The InLine® S-VGA extension with HD15 plug to HD15 socket is a professional solution for extending analog image signals between monitors, projectors and computers. It provides a reliable connection for devices with a VGA connection, especially in presentation environments, educational institutions and office installations.
The cable has three single-shielded coaxial lines for RGB signal transmission and seven additional data lines. Thanks to the double shielding - consisting of overall and individual shielding - and the integrated ferrite core, the signal is effectively protected against electromagnetic interference.
The 1:1 pin assignment without PIN 9 ensures standard-compliant and stable transmission. The blue coloring of the die-cast connectors complies with the PC99 standard and makes it easier to correctly identify the connection ports. The robust design ensures high mechanical resilience even with frequent use.

Plug type: HD15 plug to HD15 socket
Pin assignment: 1:1 (without PIN 9)
Shielding: Overall and individual shielding
Cable construction: 3x coax (RGB) + 7x data cores
Special feature: ferrite core, PC99 color coding
Color: black

InLine S-VGA Extension Cable 15HD male / female black 0.5m. Cable length: 0.5 m, Connector 1: VGA (D-Sub), Connector 2: VGA (D-Sub). Weight: 121 g, Package volume: 900 cm³. Package width: 175 mm, Package depth: 225 mm, Package height: 22 mm

How to use

Plug the male 15-pin SVGA connector into the VGA output of your computer or video source and connect the female 15-pin connector to the monitor or projector cable. Ensure connectors are aligned and secure the thumbscrews to prevent accidental disconnection. Use the 0.5 m length where a short extension is needed to bridge a small gap between devices.

Recommendations

For optimal video quality, avoid routing the cable near high-power electrical equipment or strong RF sources. If longer runs are required, consider a cable with appropriate specifications for distance to preserve signal quality.
