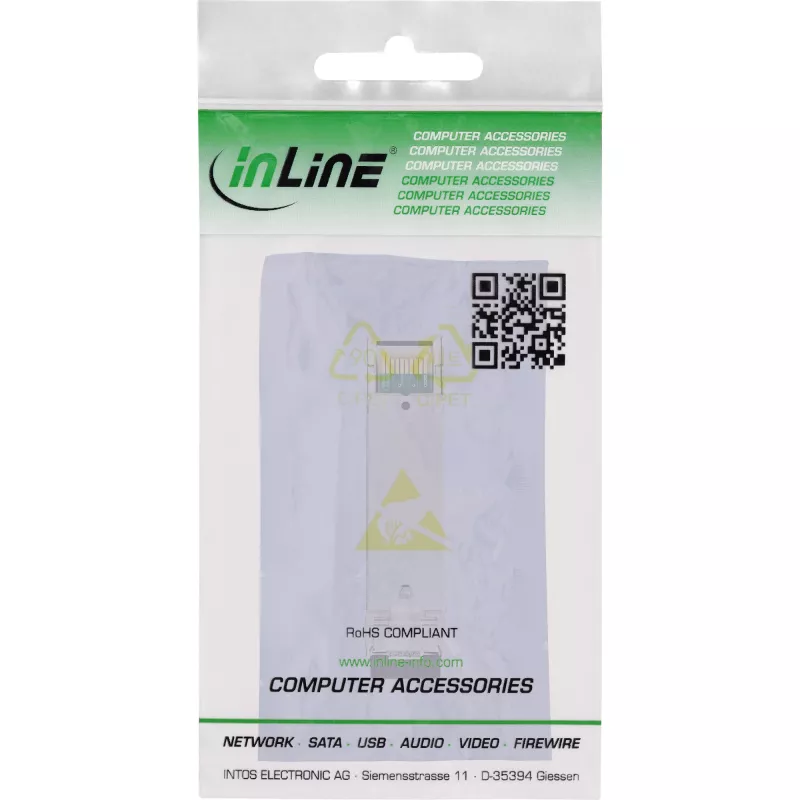

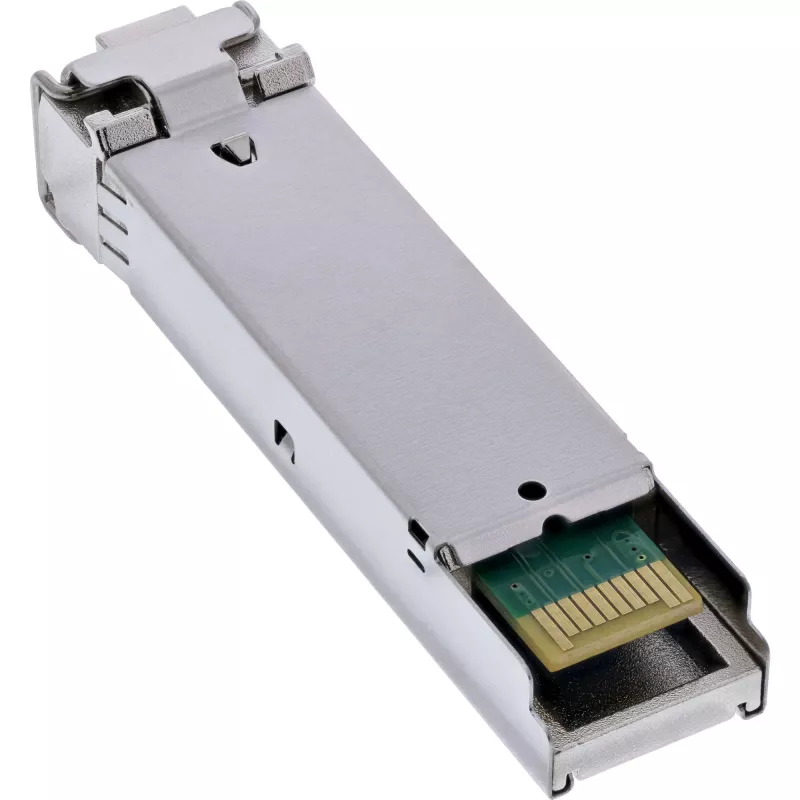

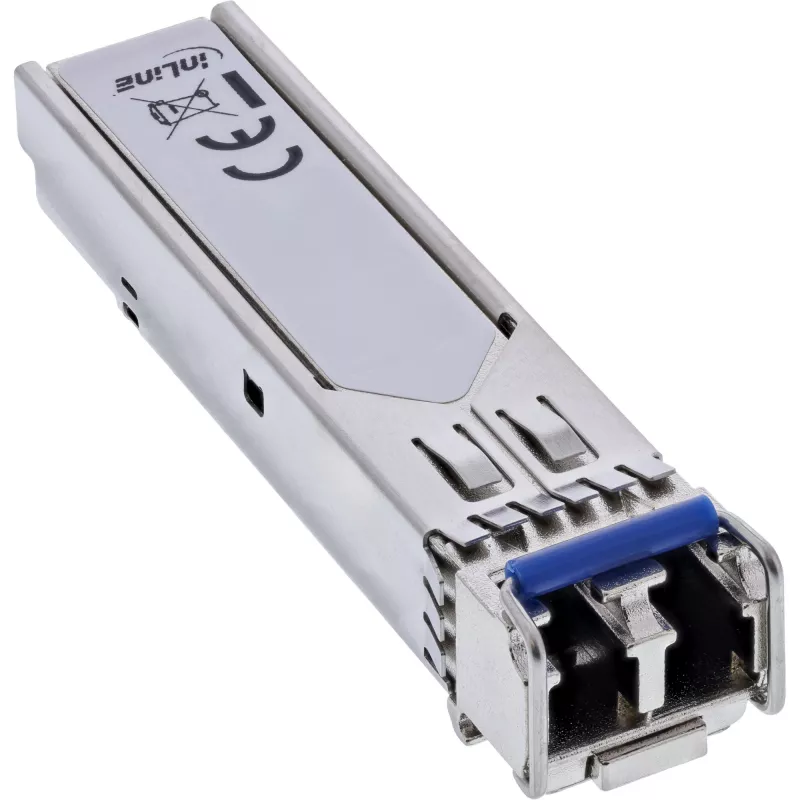

InLine SFP modul Fiber LX 1310nm Singlemode s LC konektormi samica, 20 km, 1,25 Gb/s

The InLine SFP Module Fiber LX 1310nm singlemode (MPN 32335N) is a small form-factor pluggable transceiver designed for long-distance Gigabit connections. It supports full-duplex 1.25 Gb/s transmission over singlemode fiber with LC connectors and is suitable for installation in compatible SFP ports, including the InLine 32324P InLine® PoE+ Gigabit Network Switch 24 Port.

Advantages

This SFP module offers singlemode operation at 1310 nm, LC connector convenience, and support for up to 1.25 Gb/s data rate. The compact SFP form factor allows easy hot-plug installation into standard SFP slots. It is engineered for stable long-range links and interoperability with a range of networking equipment that accepts standard SFP modules.

Suitable for

• Long-distance Gigabit links up to singlemode fiber ranges
• Connections to the InLine 32324P PoE+ Gigabit switch and other devices with SFP ports
• Fiber backbone extensions and point-to-point fiber links

Key specifications

• Interface type: SFP
• Wavelength: 1310 nm (singlemode)
• Maximum data transfer rate: 1250 Mbit/s (1.25 Gb/s)
• Connector type: LC
• Manufacturer model (MPN): 32335N
• EAN: 4043718277858

How to use

Insert the SFP module into a compatible SFP port on your switch or transceiver slot while the device is powered on or off according to the host device manual. Connect singlemode LC fiber patch cords to the module's LC sockets, ensuring correct transmit/receive orientation. Configure the host device network settings for Gigabit full-duplex operation if required. Verify link and activity LEDs on the host device to confirm a successful connection.

Recommendations

Use singlemode fiber patch cords rated for the intended distance and avoid bending the fiber below the minimum bend radius. Check compatibility with the host device's supported SFP modules and firmware notes before installation. For best results, test the link after installation and keep spare modules for quick replacement if needed.
