InLine Sklenené simplexné vlákno FTTH SC/APC 8° na SC/APC 8° 9/125µm OS2 15 m

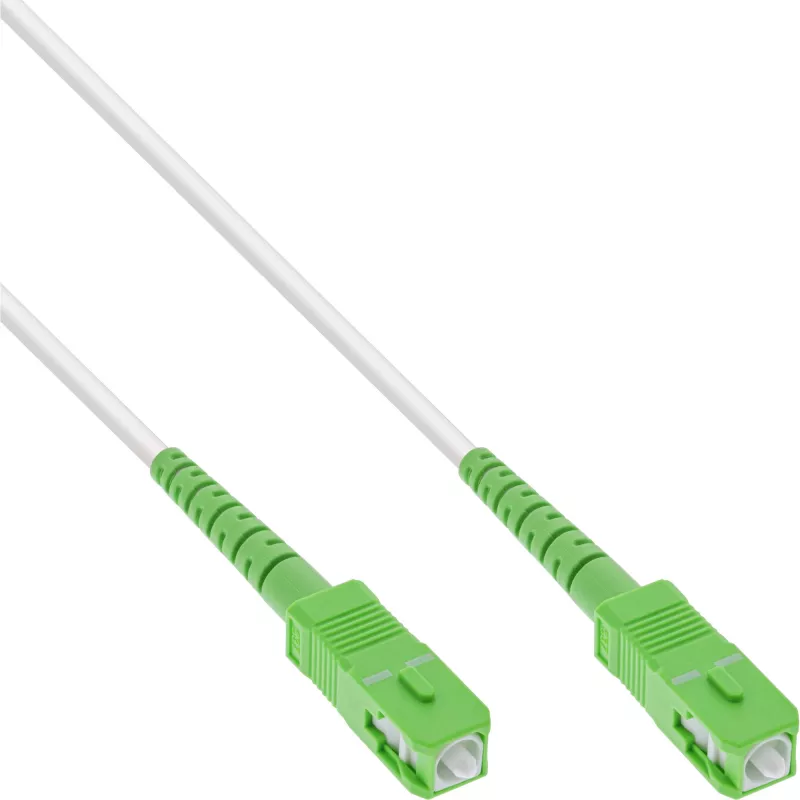

InLine Fiber Optical Simplex Cable FTTH SC/APC 8° to SC/APC 8° 9/125µm OS2 15 m is a single-mode patch cable designed for fibre-to-the-home (FTTH) installations and short- to medium-distance optical links. The cable features OS2 single-mode fibre (9/125 µm) with SC/APC 8° connectors on both ends, a white outer sheath and a 15 m length suitable for connecting the building transfer point to a fibre modem or for in-home optical extensions and patching. The cable construction includes an armoured structure and a reinforced inner tubing that improves mechanical robustness compared with very thin provider-supplied leads.

Advantages

The armoured 3.0 mm (±0.2 mm) outer diameter and stainless-steel spiral reinforcement provide higher mechanical stability and resistance to accidental damage than typical 1.6 mm provider cables. Use of OS2 single-mode fibre ensures compatibility with long-distance single-mode networks, while SC/APC 8° polished connectors deliver low reflectance and predictable insertion loss. The cable is halogen-free and delivered with a test report confirming typical insertion loss and return loss characteristics.

Suitable for

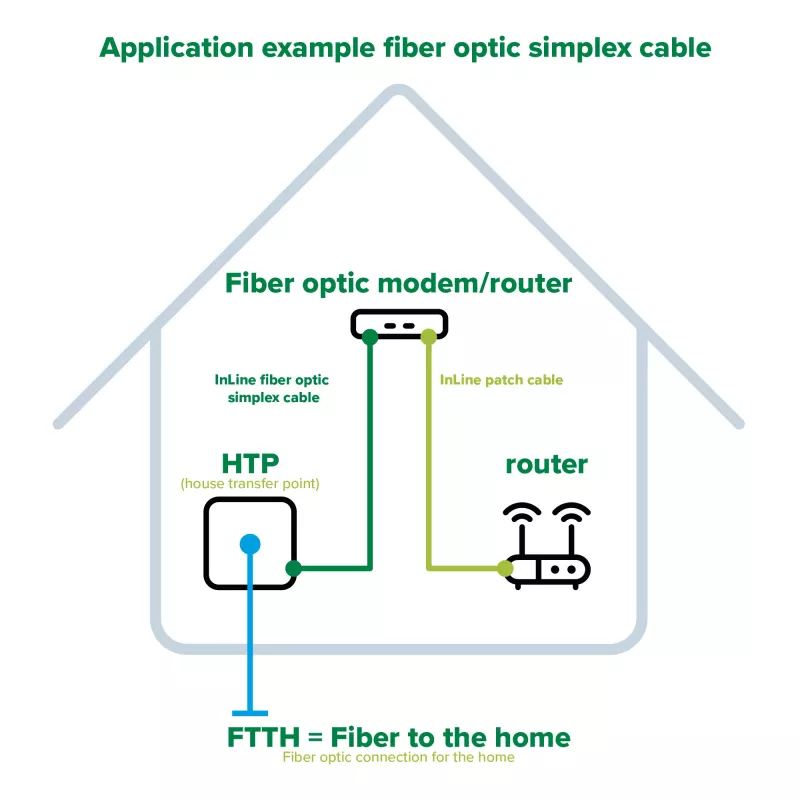

• FTTH connections between the house transfer point and an optical modem or ONT
• In-home optical patching and network extensions in residential and small enterprise environments
• Single-mode links requiring SC/APC 8° connectors and OS2 9/125 µm fibre

When it may not be suitable

This cable is single-mode with SC/APC connectors and is not intended for multimode equipment or connector types other than SC/APC without adapters. It is designed for indoor FTTH and in-building use; it does not replace outdoor, direct-burial or duct-rated fibre cables that are specified for long-term external installations.

Key specifications

• Fibre type: OS2 single-mode, 9/125 µm
• Connector types: SC/APC 8° to SC/APC 8°
• Cable length: 15 m
• Outer diameter: approximately 3.0 mm ±0.2 mm (armoured)
• Outer sheath colour: white
• Typical insertion loss: <0.20 dB (typical); maximum IL <0.30 dB
• Return loss: >60 dB
• Operating temperature range: -40 °C to +85 °C
• Construction: armoured cable with flexible metal tubing (stainless-steel spiral)

How to use

Route the 15 m InLine FTTH simplex cable between the building transfer point and the optical modem or ONT, taking care to avoid sharp bends and crushing. Align SC/APC connectors with the device ports and insert until the connector latch engages; ensure the 8° APC polish faces are not contaminated before connection. If necessary, use short dust caps during transport or when ports are not in use. If adapter or connector conversion is required, use suitable SC/APC to desired connector adapters without forcing mismatched plugs.

What to consider before purchase

• Confirm that your equipment uses single-mode fibre and SC/APC connectors (8° polish)
• Ensure 15 m length is sufficient for routing between the transfer point and the modem or plan for a different available length
• Consider whether an indoor armoured cable is appropriate or if outdoor/duct-rated cabling is required for your installation

Recommendations

Keep connector end faces clean and protected with dust caps when not connected; avoid tight bends below the cable's minimum bend radius and secure the cable to avoid mechanical stress. Use the supplied test report to verify insertion and return loss after installation.
