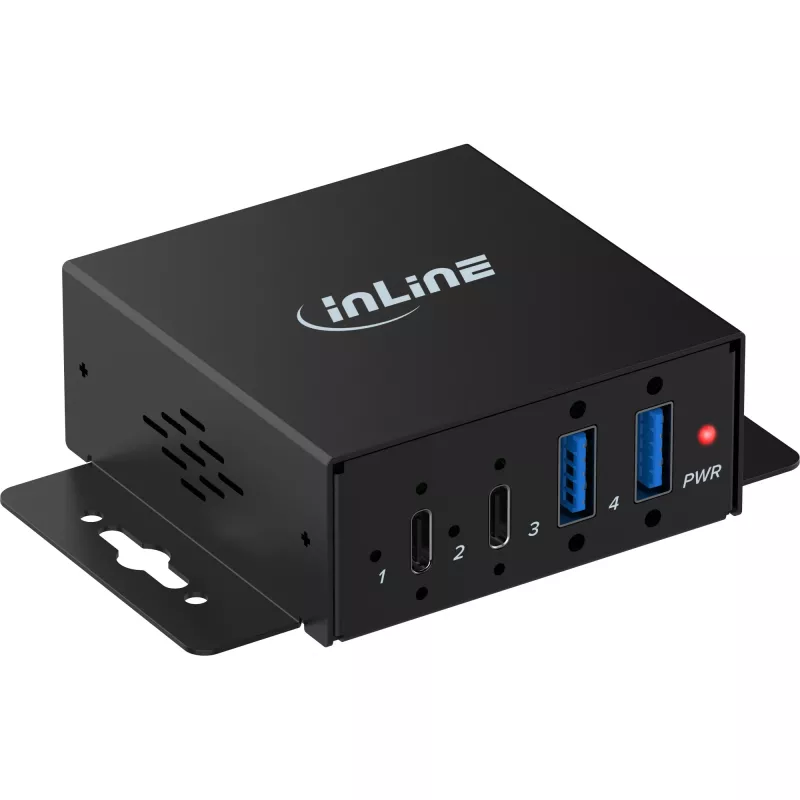

InLine USB 3.2 Priemyselný hub, 4-portový, 2x USB-A, 2x USB-C (35396H)

The InLine USB 3.2 Industrial Hub, 4-Port, 2x USB-A, 2x USB-C (35396H) expands a single USB-C port into four additional ports: two USB-A and two USB-C. It supports USB 3.2 Gen.1 transfer rates up to 5 Gb/s and features a robust metal housing for demanding environments.

Key features

• 4-port USB-C industrial hub with 2x USB-A and 2x USB-C
• Metal housing, black
• Up to 5 Gb/s data transfer rate
• Supports 12–24 V DC input and BC1.2 charging (max. 5 V / 1.5 A per port)
• Lockable USB-C port with screw lock
• Wall mounting or desktop use
• LED indicator
• Plug & Play: no drivers required
• Protection mechanisms: short circuit, overcurrent, overvoltage
• ESD/antistatic protection: 4 kV / 8 kV / 350 W

Specifications

• Brand: InLine
• MPN: 35396H
• Chipset: VL817
• Inputs: 1x USB-C port for connection to host computer (screw lock compatible), 1x DC input (5.5 x 2.5 mm), 1x alternative 2-pin terminal connection
• Supported input voltage: 12–24 V DC
• Outputs: 2x USB-A 3.2 Gen.1 ports (5 Gb/s), 2x USB-C 3.2 Gen.1 ports (5 Gb/s)
• BC1.2 - USB Battery Charging Specification 1.2 (max. 5 V / 1.5 A per port)
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +125 °C
• Operating humidity: 10–85% (non-condensing)
• Storage humidity: 5–90% (non-condensing)
• Operating systems: Windows, macOS, Linux
• External power supply (power adaptor) Type: external plug-in power adaptor (optional)
• External power supply input voltage: 100–240 V AC, 50/60 Hz
• External power supply output voltage: 12.0 V DC
• External power supply output current: 2.0 A
• External power supply output power: 24.0 W
• Average efficiency during operation: 87.45%
• Efficiency at low load (10%): 84.07%
• Power consumption at no load: 0.07 W
• Contents: 1x InLine USB 3.2 Gen.1 industrial hub, 4-port, 2x USB-A / 2x USB-C; 1x lockable USB-A to USB-C cable, 1 m; 1x mounting kit; 1x external power supply 12 V / 2 A; 1x user manual (German/English)
• Weight: 0.455 kg
• Special feature: Aluminum
• Number of ports: 4
• Card reader: No
• Connection: USB-A / USB-C
• USB specification: USB 3.2 Gen.1
• Article width: 7.60 cm
• Article height: 2.60 cm
• Article length: 9.50 cm
• Net weight: 0.152 kg
• Device type: Industrial Hub
• Ports: 2x USB-C + 2x USB-A
• Transmission rate: 5 Gb/s
• Country of origin: China
