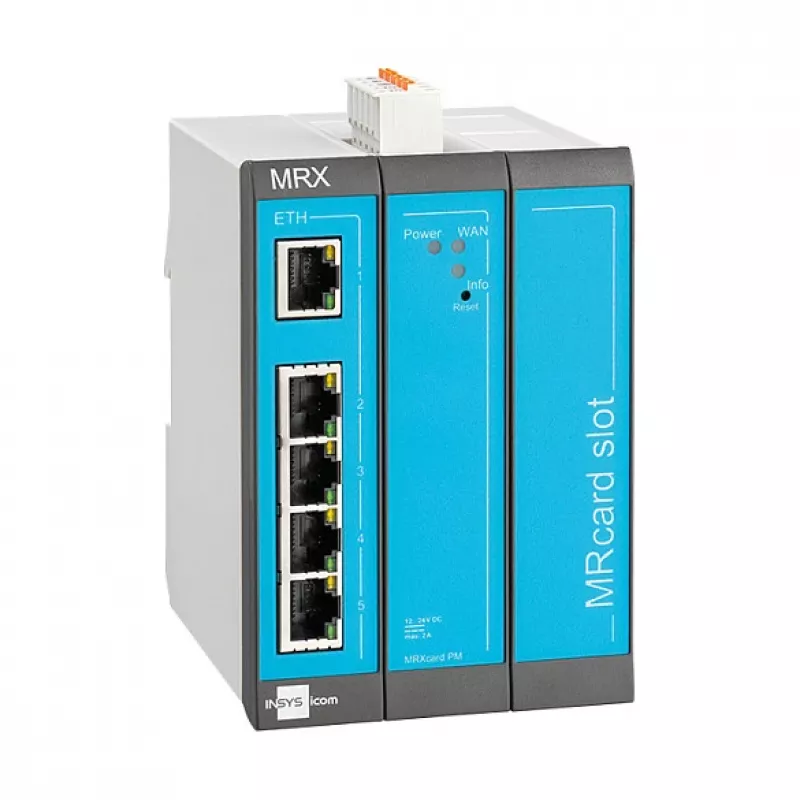

INSYS icom icom MRX3 LAN — Fast Ethernet 10/100 Mbit/s, BGP/OSPF/RIP, IPSec, RADIUS, CE certifikát

INSYS icom icom MRX3 LAN is a LAN router with Fast Ethernet interfaces supporting 10/100 Mbps data rates. The device provides dynamic routing protocols BGP, OSPF, RIP and RIP-2, and integrates security functions including IPSec VPN, SNMP monitoring and SSH remote management together with RADIUS authentication. The router is CE certified and designed for industrial and enterprise network routing, secure remote access and integration into managed network environments. The MRX series adds modularity and expandability through plug-in cards, two digital inputs and two housing width options to adapt to changing application requirements.

Advantages

The MRX3 LAN combines hardware-level reliability with software features for routing and security, enabling continuous operation in industrial or business settings. Fast Ethernet 10/100 interfaces provide predictable throughput for LAN links while support for BGP, OSPF and RIP enables flexible integration into both internal and multi-site network topologies. Built-in IPSec and authentication via RADIUS deliver encrypted tunnels and centralized user control. The modular MRX concept allows later functional expansion by adding MRcards, supporting tailored interface configurations and technology upgrades.

Suitable for

Key specifications

How to use

Install the MRX3 LAN in a suitable rack or control cabinet and connect power and network links to the Fast Ethernet ports. Configure IP addressing and routing according to your network plan and enable the required dynamic routing protocols (BGP, OSPF or RIP) via the device administration interface. Set up IPSec tunnels for secure site-to-site or remote access connections and configure RADIUS for centralized user authentication. Use SNMP and SSH for monitoring and secure management of the router.

Recommendations

For reliable operation, keep router firmware up to date and apply manufacturer security guidelines. When deploying in industrial environments, verify grounding and EMC requirements and select MRcards only after confirming interface needs and housing space. Use IPSec with strong encryption profiles and centralized RADIUS policies for consistent access control.
