Inteligentný spínač Shelly WAVE 2PM čierny (Shelly) — bezdrôtový Z-Wave, 16 A, 110–240 V, 868,4 MHz

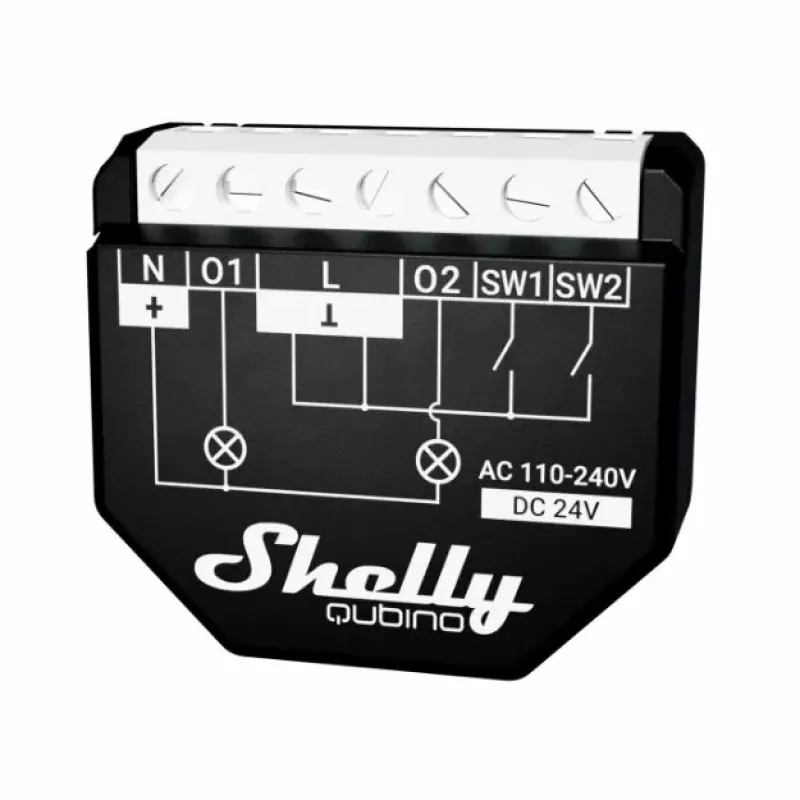

The Shelly Qubino WAVE 2PM Black Wireless 16A is a compact smart switch for controlling electrical circuits remotely. Designed for in-wall or behind-switch installation, it supports an AC input voltage range of 110–240V and a breaking capacity of 16A. The device has a small footprint (42mm width, 16mm depth, 37mm height) and a durable plastic enclosure that fits into tight electrical boxes while providing reliable electrical switching for lights, outlets, and other household or light-commercial loads.

Advantages

The Shelly Qubino WAVE 2PM integrates wireless connectivity with a high switching current, enabling control of medium-power loads without bulky hardware. Its compact dimensions allow installation behind wall switches or inside junction boxes, preserving the aesthetics of interiors. The durable plastic housing provides electrical insulation and longevity, and the broad input voltage range ensures compatibility with common residential and commercial power systems.

Suitable for

• Remote switching of lighting circuits
• Controlling wall sockets and small appliances
• Integration with home automation systems for scheduled or scene control
• Installation in bathrooms, kitchens, and confined electrical boxes

Key specifications

• AC input voltage: 110–240 V
• Maximum switching/breaking current: 16 A

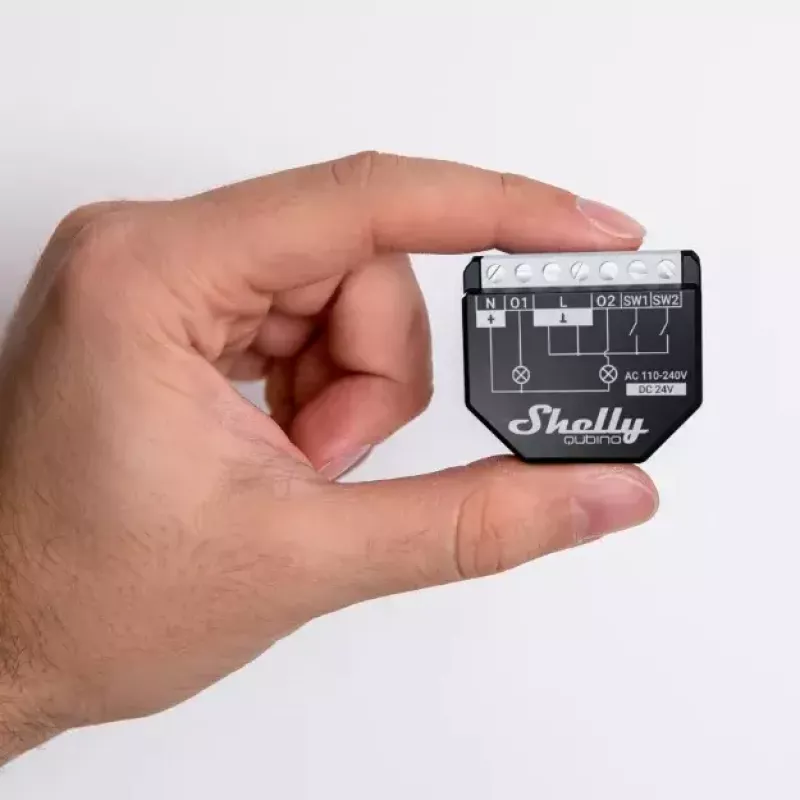

• Dimensions: 42 mm (W) × 16 mm (D) × 37 mm (H)
• Material: durable plastic enclosure
• Wireless operation: supports standard home wireless integration (protocol details depend on installation)

How to use

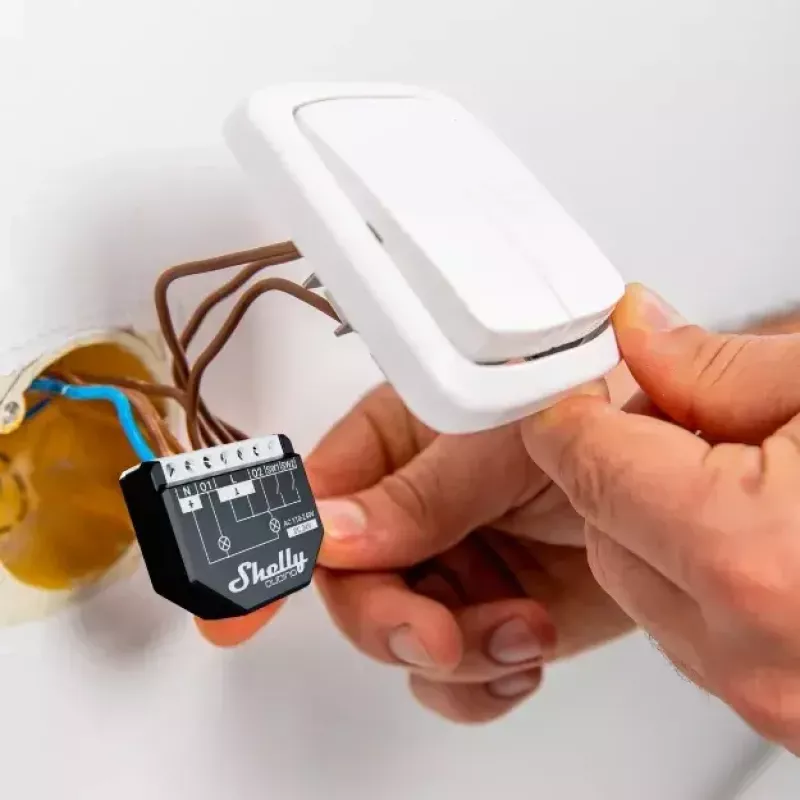

Install the Shelly Qubino WAVE 2PM behind an existing switch or inside a junction box following local wiring regulations and safety standards. Connect the input and output conductors to the appropriate live and load terminals and ensure the neutral is connected where required. After wiring, power the circuit and pair the device with the chosen wireless controller or app according to the manufacturer's pairing procedure. Configure switching behavior, schedules, or scenes through the app or automation platform to suit your needs.

Recommendations

Use the device within the specified voltage range and do not exceed the 16 A breaking capacity. Ensure installation is performed by a qualified electrician. Keep the unit inside an appropriate enclosure if installed in damp or dust-prone locations, and follow the home automation platform guidelines for secure wireless setup.
