Intellinet multifunkčný tester káblov, RJ-45 a RJ-11, UTP/STP/FTP, tienený a netienený

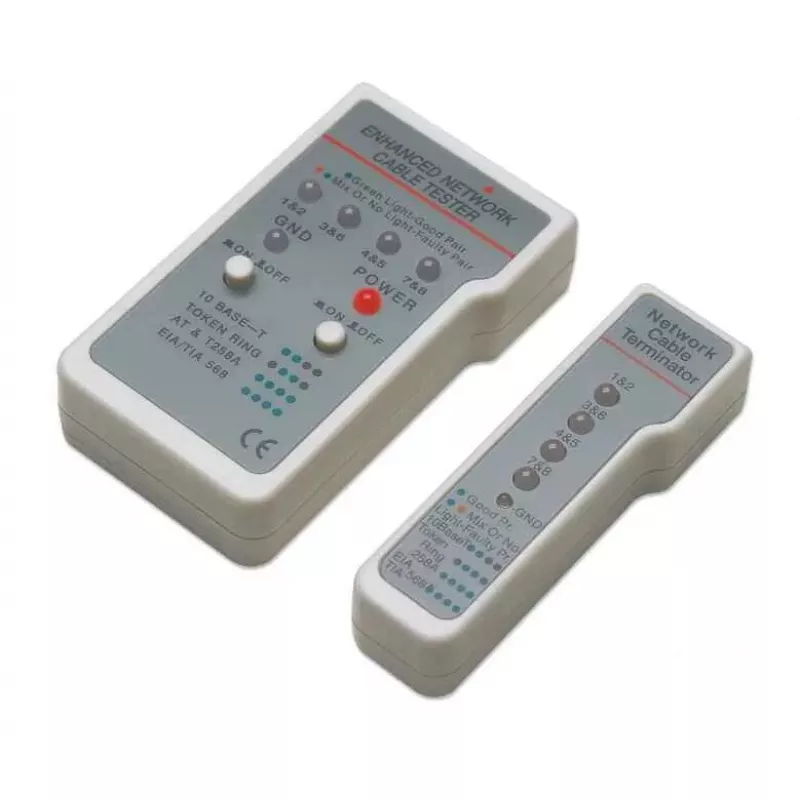

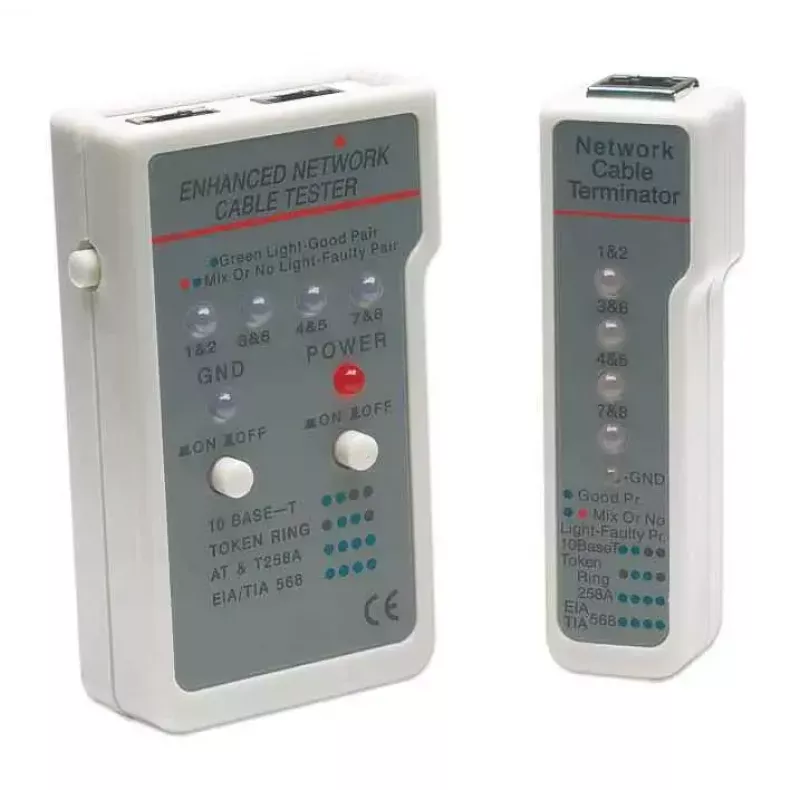

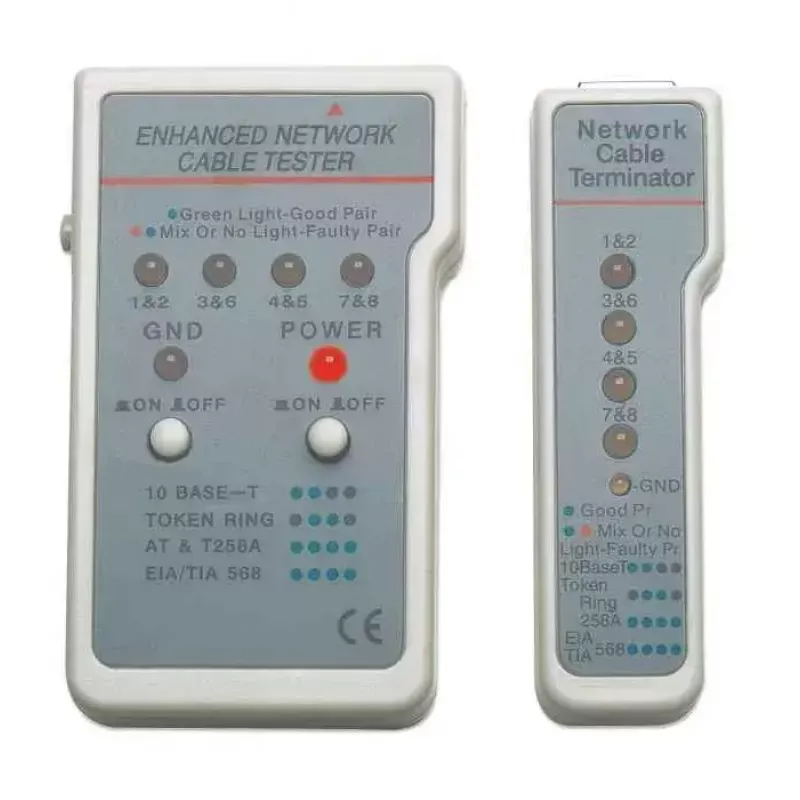

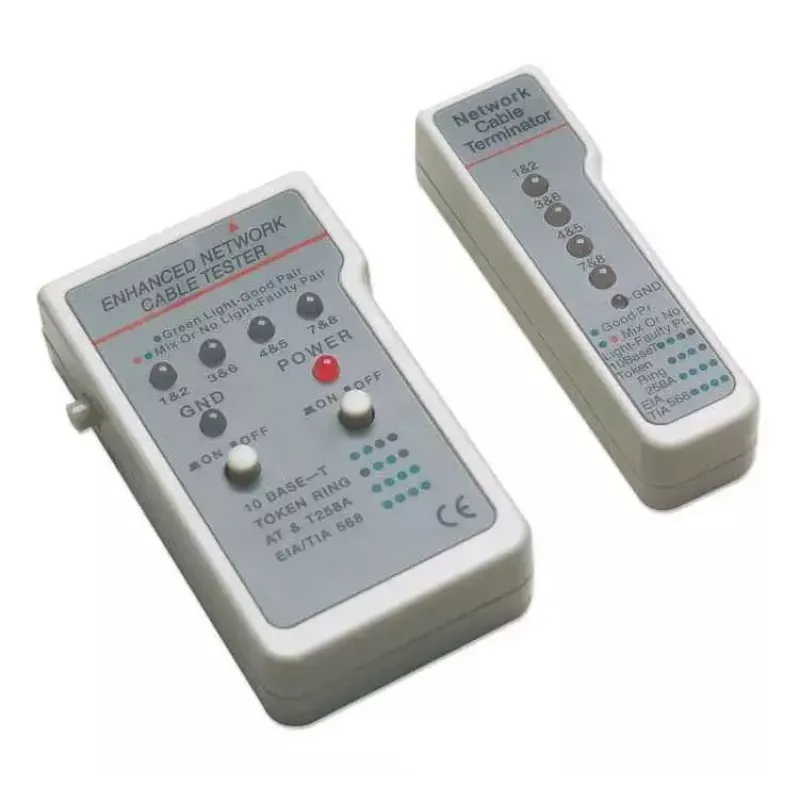

The Intellinet 351898 multifunction cable tester checks RJ-45 and RJ-11 connections and supports UTP, STP and FTP cable types. It provides testing for both shielded and unshielded ethernet and telephone cables and is powered by a 9V alkaline battery. The compact housing (90 x 25 x 105 mm) makes the tester convenient for field and workshop use when verifying cable continuity and identifying wiring faults.

Advantages

The tester supports testing of RJ-45 and RJ-11 connectors and is compatible with UTP, STP and FTP cables. It offers straightforward detection of open circuits, short circuits and wiring order problems. Battery operation allows portable use without external power, and the small dimensions make storage and transport easy.

Suitable for

• Installing and verifying Ethernet (RJ-45) cabling
• Testing telephone and modem cables (RJ-11)
• Field technicians and network installers needing a compact continuity tester
• Troubleshooting wiring faults in shielded and unshielded cables

Key specifications

• Supported connectors: RJ-45, RJ-11
• Supported cable types: UTP, STP, FTP
• Power supply: 9V alkaline battery (not included)
• Dimensions (W × D × H): 90 × 25 × 105 mm
• Brand: INTELLINET, MPN: 351898

How to use

Connect one end of the cable to the main unit and the other end to the remote unit or corresponding connector. Power the tester with a 9V alkaline battery and select the appropriate test mode for RJ-45 or RJ-11. Observe the indicator sequence or display to verify continuity, shorts and correct pair mapping. If the tester indicates a fault, inspect wiring and connectors and repeat the test after repairs.

Recommendations

Use a fresh 9V alkaline battery for reliable results, avoid testing live circuits, and store the tester in a dry place. For consistent diagnostics, test both ends of long runs and retest after replacing connectors or patch panels.
