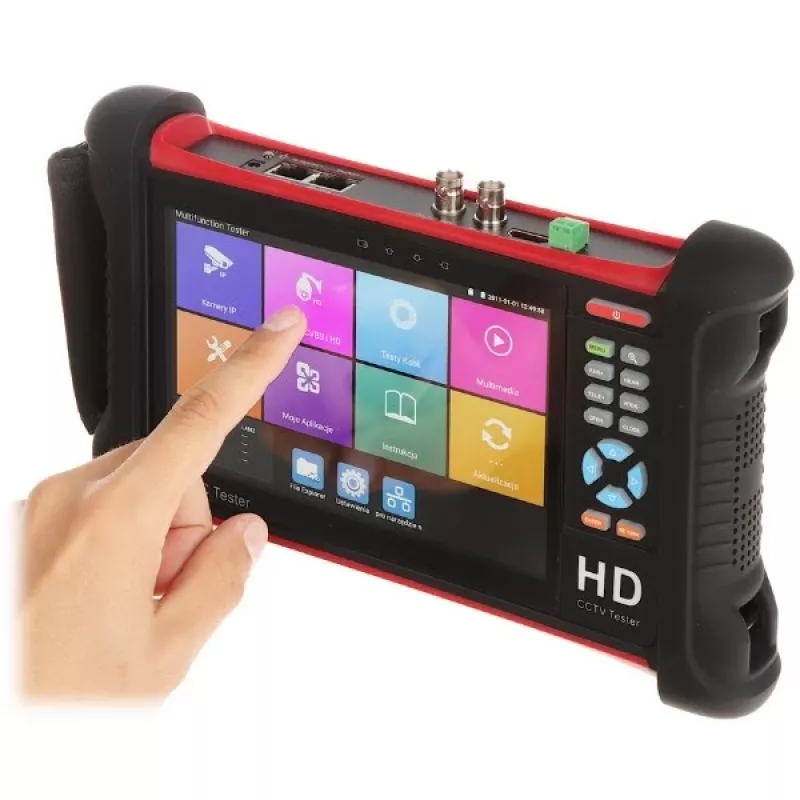

Multifunkčný CCTV tester CS-H8-70H Delta Tester

The CS-H8-70H is a professional multi-function CCTV tester designed for installation, maintenance, and troubleshooting of analog and IP camera systems. With a 7-inch IPS touchscreen, it supports 4K IP cameras and 8MP HD analog formats (AHD, HD-TVI, HD-CVI). Built-in PoE output (48V, 25.5W) and DC power supply (12V/3A, 5V/2A USB) allow direct camera testing. The 7000mAh battery provides up to 12 hours of operation. Network tools include Ping, IP Scan, Port Scan, DHCP, Traceroute, and Wi-Fi analysis. Cable testing covers UTP and coaxial cables with TDR. PTZ control via RS485 with multi-protocol support. Android-based OS for easy operation.

Advantages

All-in-one solution for CCTV installers: combines analog and IP camera testing, PoE power supply, cable testing, and network diagnostics in a portable device. High-resolution 7-inch IPS touchscreen for clear image preview. Long battery life ensures all-day fieldwork. Supports the latest 8MP HD analog formats and 4K IP cameras.

Suitable for

• Security system installers and technicians
• Facility maintenance professionals
• Network engineers deploying IP cameras
• Field service technicians

Key specifications

• Display: 7-inch IPS touchscreen, 1920x1200 resolution
• IP Camera Support: ONVIF, RTSP, H.265/H.264, up to 4K (8MP)
• Analog Formats: CVBS (NTSC/PAL), AHD (8MP), HD-TVI (8MP), HD-CVI (8MP)
• PoE Output: 48V, max 25.5W
• DC Output: 12V/3A, 5V/2A (USB)
• Battery: 7000mAh Li-Po, up to 12 hours
• Network Tools: Ping, IP Scan, Port Scan, DHCP, Traceroute, Wi-Fi Analysis
• Cable Test: UTP cable test, TDR for coaxial/UTP
• PTZ Control: RS485, Pelco-D/P support
• Video Inputs: 1x BNC (CVBS/AHD/TVI/CVI), 1x RJ45 (IP), 1x HDMI
• Video Outputs: 1x BNC (CVBS), 1x HDMI
• Audio: 1-ch input, 1-ch output
• Storage: MicroSD card slot
• Operating System: Android-based

Recommendations

Ideal for professionals who need a versatile tester for both analog and IP CCTV systems. The built-in PoE and DC outputs eliminate the need for separate power supplies. The comprehensive network and cable testing tools make it a valuable asset for any installation toolkit.
