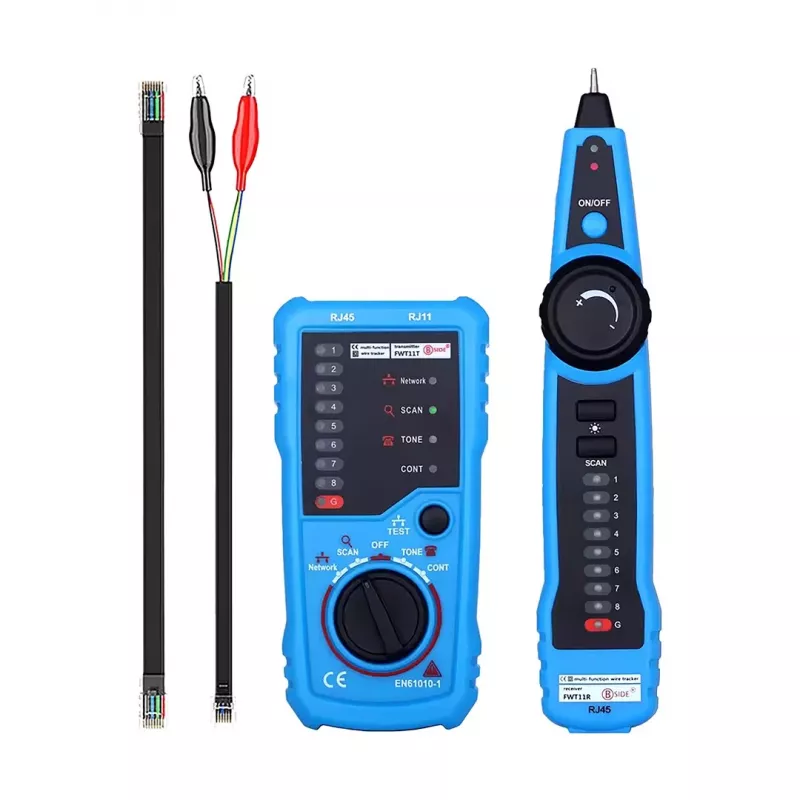

BSIDE FWT11 E6244 vyhľadávač káblov sieťový tester káblov s PoE detekciou a tónovým generátorom

The BSIDE FWT11 E6244 stands apart from typical cable testers by combining wire tracking, cable mapping, PoE detection, and non-contact voltage sensing in one compact tool. Instead of juggling separate devices for each task, you get a transmitter and receiver pair that covers RJ45 and RJ11 lines up to 300 meters, with a clear LED flashlight and headphone jack for noisy environments. The 130 kHz tone is easy to trace, while the receiver's low-battery indicator prevents surprises mid-job. This model is built for technicians who need reliable results without unnecessary complexity.

Highlights

• Wire pair finder with tone generator for tracing cables behind walls or in bundles
• Tests RJ45 Ethernet and RJ11 telephone cables for open, short, cross, and normal wiring
• PoE detection shows voltage and polarity to verify power-sourcing equipment
• Non-contact voltage (NCV) detection adds safety when working near live circuits
• Receiver includes LED flashlight and headphone jack for dark or loud workspaces
• Supports tracking up to 300 meters with a 130 kHz tone

In daily use

Whether you're mapping a patch panel, verifying PoE on an access point, or locating a break in a long run, the FWT11 E6244 gives you clear feedback. The transmitter sends a tone that the receiver picks up with adjustable sensitivity, so you can isolate a single cable among many. The cable mapping function instantly identifies miswires and shorts, saving time on troubleshooting. Because the receiver runs on three AAA batteries and the transmitter on a 9V battery (both not included), you can easily swap in fresh cells when the low-battery indicator lights up. The compact dimensions—126 x 64 x 30 mm for the transmitter and 175 x 42 x 27 mm for the receiver—fit easily in a tool bag.

Full specifications

• Product type: Network cable tester & wire tracker
• Supported cable types: RJ45 (Ethernet), RJ11 (Telephone)
• Test type: Open, short, cross, normal wiring
• PoE detection: Yes (voltage & polarity identification)
• NCV detection: Yes
• Tone frequency: 130 kHz
• Maximum tracking distance: 300 m
• Transmitter power supply: 1x 9V 6F22 battery (not included)
• Receiver power supply: 3x 1.5V AAA batteries (not included)
• Low battery indicator: Yes
• LED flashlight: Yes (on receiver)
• Headphone jack: Yes (on receiver)
• Port types: RJ45, RJ11
• Safety compliance: CE, RoHS
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 50°C
• Transmitter dimensions: 126 x 64 x 30 mm
• Receiver dimensions: 175 x 42 x 27 mm

Final note

The BSIDE FWT11 E6244 is a practical choice for network installers and maintenance staff who need a reliable, all-in-one cable tester and tracker. Its clear feedback and robust feature set make daily troubleshooting faster and more accurate.
