Interaktívne rameno Ergotron VHD 152,4 cm (60")

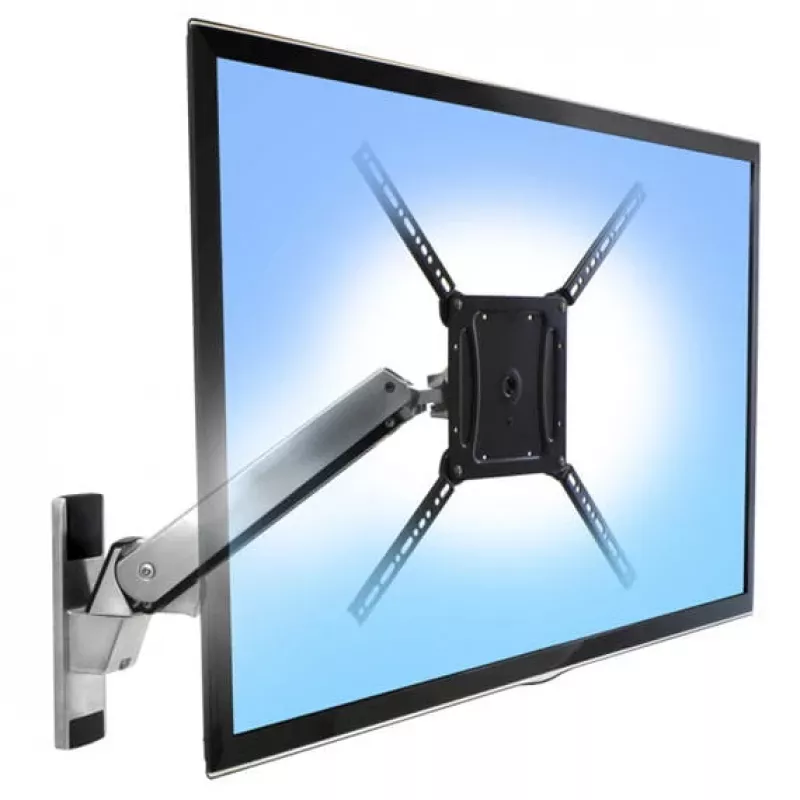

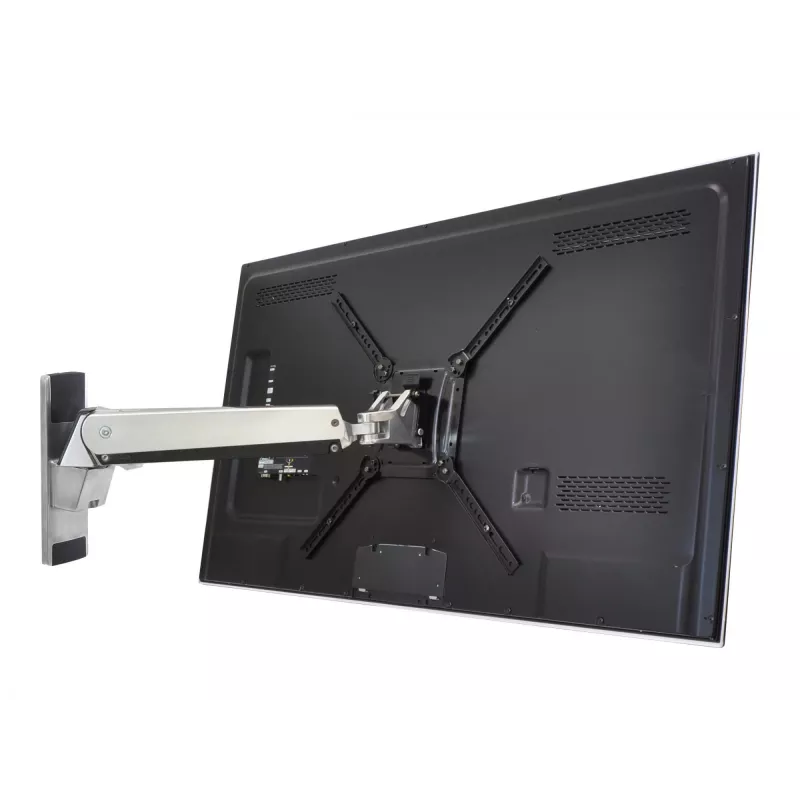

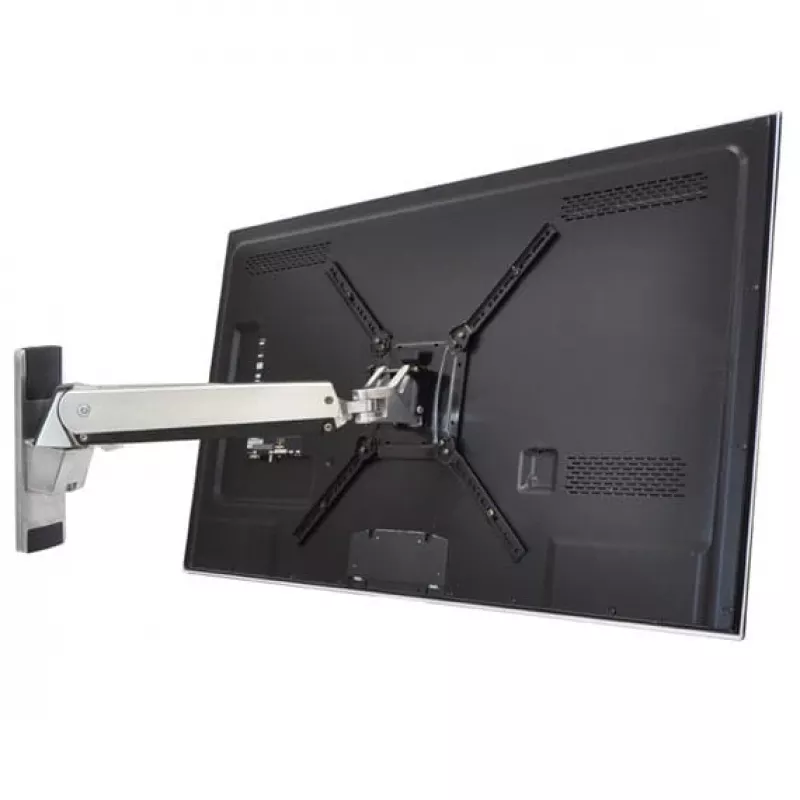

The Interactive Arm Ergotron VHD 152.4 cm (60") is a polished-aluminium and black-trim mount designed for displays from 30" up to 60" with a maximum load of 31.8 kg. It extends smoothly from a compact retracted depth of 6.5" (17 cm) to a full reach of 28" (71 cm) and supports height adjustment plus tilt from 0° to 25°. The arm is compatible with VESA patterns from 200 x 100 mm up to 600 x 200 mm and includes cable-management clips beneath the arm for neat wiring.

Advantages

Constant Force technology allows light-touch adjustments and continuous, smooth movement of the TV or display in all directions, including vertical and horizontal shifts. A gravity pivot provides tilt without knobs or levers, while post-installation rotation offers ±5° leveling. Constructed from polished aluminium with black trim, the arm combines high strength with a clean aesthetic and integrates cable routing to hide wires.

Suitable for

• Home theatre setups where the screen needs to move for optimal viewing
• Gaming stations requiring flexible screen positioning
• Exercise or workout areas with adjustable screen placement
• Wall-mounted displays in meeting rooms or open workspaces

Key specifications

• Compatible screen sizes: 30"–60"
• Maximum weight capacity: 31.8 kg
• VESA compatibility: 200 x 100 mm to 600 x 200 mm
• Extension range: 6.5" (17 cm) retracted to 28" (71 cm) extended
• Tilt range: 0°–25° (gravity pivot)
• Post-installation rotation: ±5° for leveling
• Product weight: 14.3 kg
• Colour: Polished aluminium and black trim

How to use

Mount the arm to a suitable solid wall following the manufacturer’s installation instructions and ensure the chosen VESA pattern matches your display. Attach the display to the arm and verify the weight does not exceed 31.8 kg. Use light-touch adjustments enabled by Constant Force technology to move the screen to the desired position; the gravity pivot will provide tilting without additional knobs. Route cables along the underside of the arm and secure them with the integrated clips.

Recommendations

Check wall type and fasteners before installation, and if uncertain consult a professional installer. Do not exceed the maximum weight capacity. Periodically inspect mounting hardware and cable clips for wear and re-tighten fasteners if necessary.
