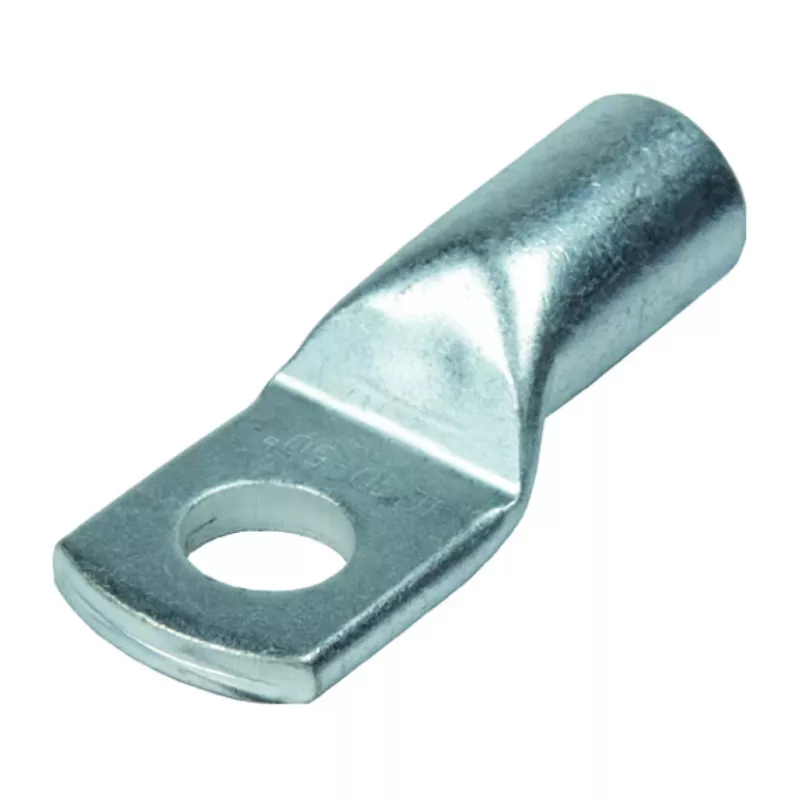

Intercable ICR12012 rúrková káblová koncovka 120mm² M12 pocínovaná R-séria

With a conductor cross-section capacity of 120 mm² and an M12 bolt hole, this tubular cable lug from Intercable's R-Series delivers industrial-grade performance for high-current connections. Constructed from electrolytic copper and finished with a tin plating, it offers excellent conductivity and corrosion resistance, making it a reliable choice for demanding electrical installations.

Overview

The Intercable ICR12012 is a crimp-type tubular cable lug designed to terminate stranded copper conductors of 120 mm² cross-section. Its funnel entry facilitates easy conductor insertion, while the tin-plated surface ensures a durable, low-resistance connection. Compliant with DIN 46235, it meets stringent quality standards for electrical connections. The lug is uninsulated and features a single bolt hole for secure fastening.

What stands out

• High conductivity electrolytic copper with tin plating for corrosion resistance
• Funnel entry design simplifies cable insertion during crimping
• Wide operating temperature range from -55°C to +150°C
• DIN 46235 compliance ensures compatibility and reliability
• Optimized for use with Intercable crimping tools

Technical details

• Cable cross-section: 120 mm²
• Bolt hole diameter: 12 mm (M12)
• Material: Electrolytic copper, tin-plated
• Connection method: Crimp
• Lug type: Tubular (Rohrkabelschuh)
• Series: R-Series
• Standard compliance: DIN 46235
• Conductor compatibility: Stranded copper conductors
• Insulation: Uninsulated
• Operating temperature: -55°C to +150°C
• Voltage rating: Up to 1000 V
• Entry style: Funnel entry
• Number of bolt holes: 1
• Colour: Metallic silver
• RoHS compliant: Yes

Our verdict

Built for heavy-duty applications, the Intercable ICR12012 combines robust construction with precise engineering. Its tin-plated copper body and DIN compliance make it a trustworthy component for professionals who demand reliable, long-lasting electrical connections.
