Interný M.2 adaptér DeLOCK 62704

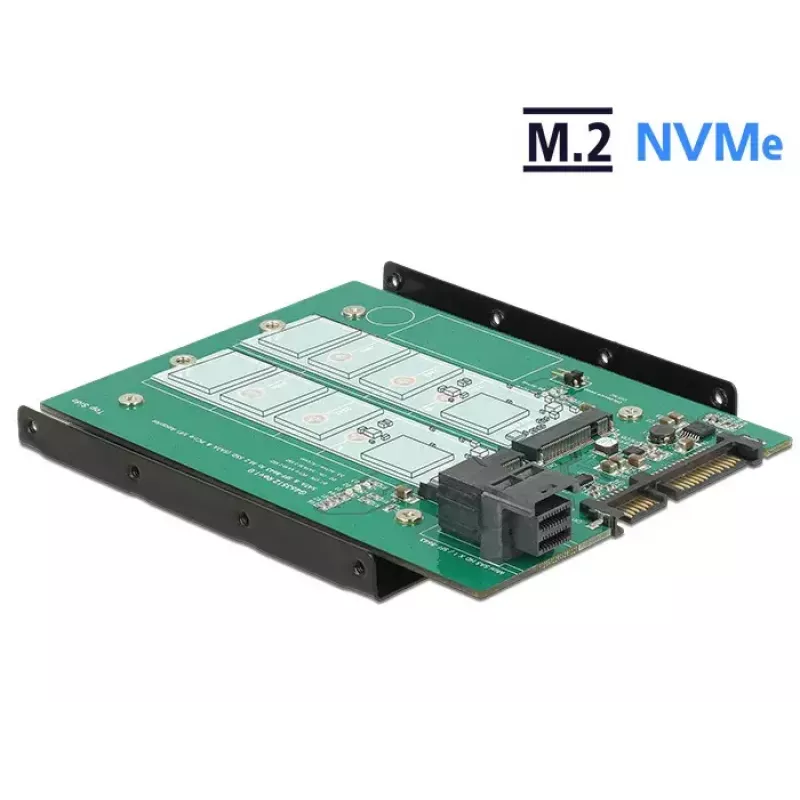

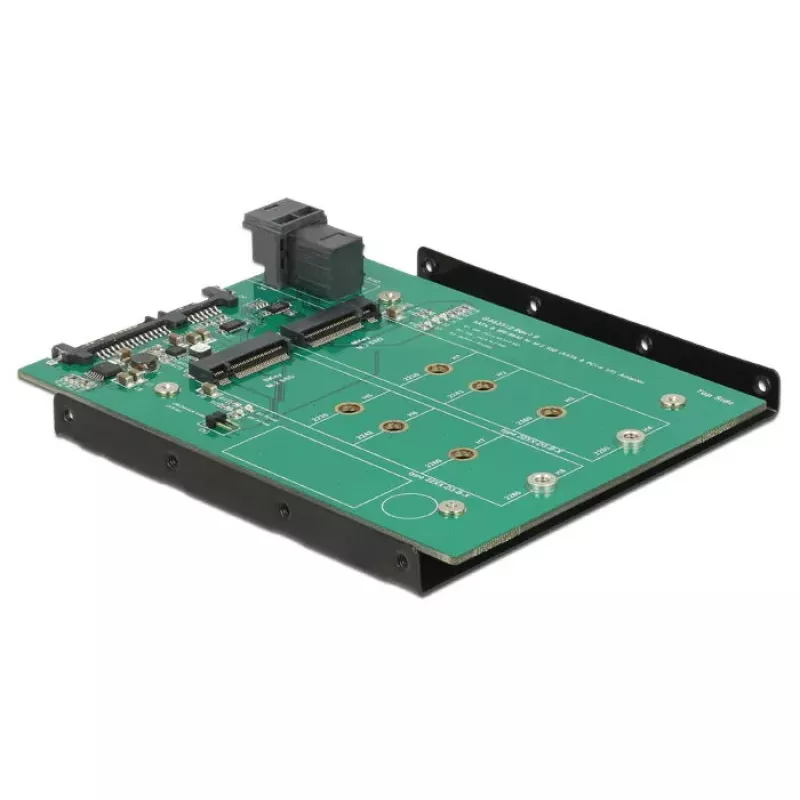

The DeLOCK 62704 internal M.2 adapter enables installation of two M.2 NGFF SSDs (sizes 2280, 2260, 2242 and 2230) with key B and key M. It supports simultaneous use of one M.2 SATA SSD and one M.2 PCIe SSD by providing the appropriate interfaces: a SATA 22‑pin connection for a SATA M.2 drive and an SFF‑8643 connection for a PCIe M.2 drive. The adapter is designed for internal installation in a compatible system.

Advantages

The adapter allows installation of multiple M.2 form factors (2280/2260/2242/2230) and supports both SATA‑based and PCIe‑based M.2 SSDs, enabling flexible storage configurations. It uses standard internal interfaces (SATA 22‑pin and SFF‑8643) for reliable connectivity and supports data transfer rates up to 6 Gbit/s when operating over the SATA interface. The compact internal design simplifies integration into desktop systems.

Suitable for

• Upgrading a desktop PC to add an M.2 SATA SSD via internal SATA connection
• Adding an M.2 PCIe SSD using SFF‑8643 (host system must provide SFF‑8643)
• Systems requiring support for multiple M.2 sizes (2280/2260/2242/2230)

Key specifications

• Brand: DELOCK
• Model: 62704
• Supported M.2 sizes: 2280, 2260, 2242, 2230 (key B and key M)
• Host interface: SATA (SATA 22‑pin) and SFF‑8643 for PCIe M.2
• Output interface: M.2
• Internal installation: Yes
• Maximum SATA transfer rate: 6 Gbit/s (SATA interface)
• MPN: 62704
• EAN: 4043619627042

How to use

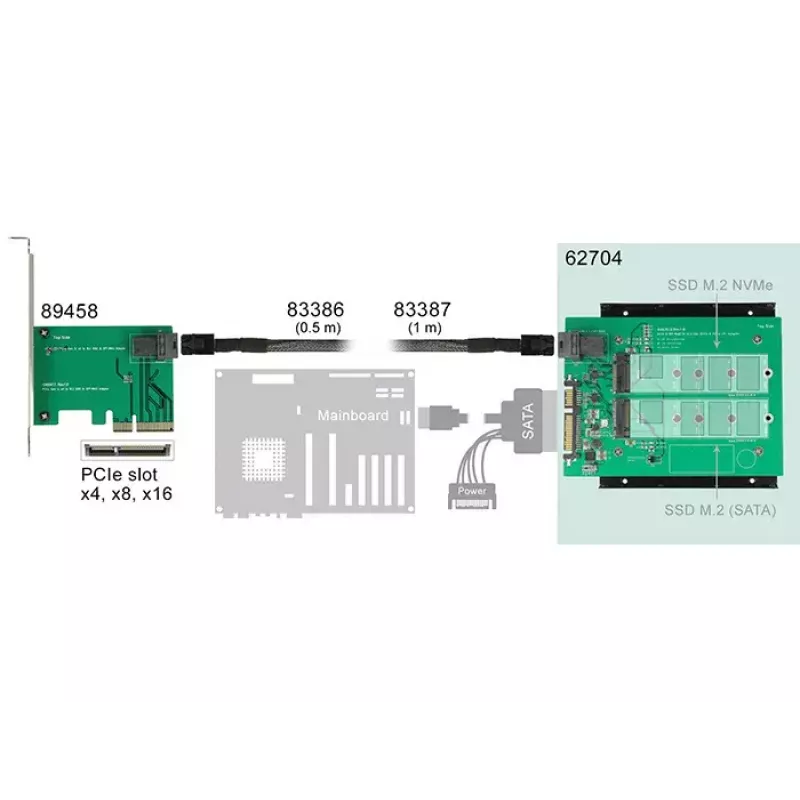

Install the adapter internally in your system and secure it according to your chassis layout. Insert an M.2 SSD (2280/2260/2242/2230) with the appropriate key into the corresponding M.2 slot on the adapter. Connect a SATA 22‑pin cable from the host SATA port to the adapter when using a SATA‑based M.2 SSD, or connect an SFF‑8643 cable from a PCIe host port when using a PCIe‑based M.2 SSD. Ensure the system BIOS/UEFI recognises the connected drive and install any necessary drivers or initialize the disk within the operating system.

Recommendations

Use compatible M.2 SSDs with the correct keys (B for SATA, M for PCIe) and ensure your host system provides the required internal interfaces (SATA 22‑pin for SATA M.2 or SFF‑8643 for PCIe M.2). Verify BIOS/UEFI settings and back up data before modifying drives.
