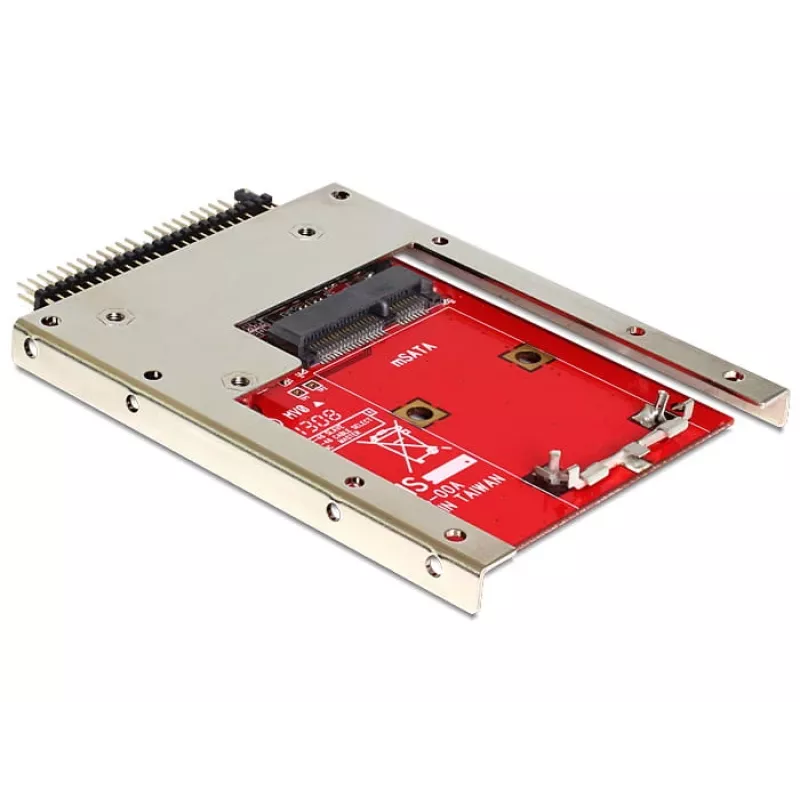

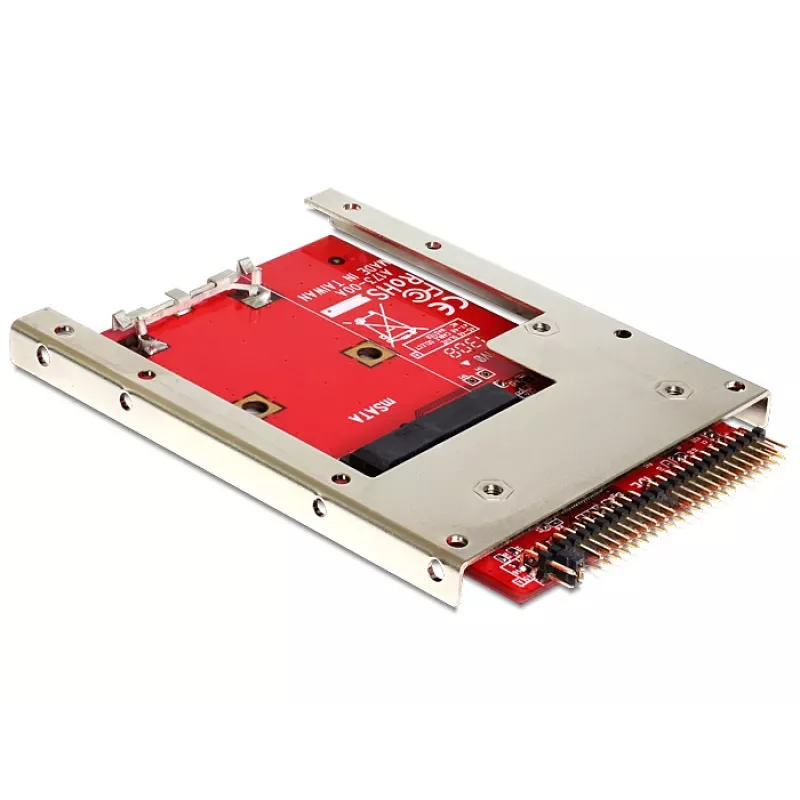

Interný mSATA adaptér DeLOCK 62495

The DeLOCK 62495 internal mSATA adapter allows installation of a full‑size mSATA SSD into systems with a 44‑pin IDE host interface. With compact dimensions (98 × 70 × 7 mm), the adapter converts an mSATA module to behave like a 2.5" HDD for internal mounting, enabling integration of mSATA storage where IDE connections are required.

Advantages

The adapter provides a straightforward mechanical and electrical conversion from mSATA to IDE, saving space with its slim profile. It is designed for internal installation and supports standard mSATA SSD modules without additional brackets or external enclosures.

Suitable for

• Upgrading older systems that only offer a 44‑pin IDE connection
• Replacing or adding internal storage using mSATA SSDs
• Embedded or compact devices where a slim internal adapter is needed

Key specifications

• Brand: DELOCK
• Model: 62495
• Host interface: IDE (44‑pin)
• Output interface: mSATA
• Internal installation: Yes
• Dimensions: 98 mm × 70 mm × 7 mm

How to use

Install an mSATA SSD onto the adapter’s mSATA connector and secure it according to the SSD manufacturer’s instructions. Insert the adapter into the system’s IDE 44‑pin connector and fasten the adapter inside the chassis using appropriate mounting points. After connection, power on the system and verify that the mSATA drive is detected by the BIOS/operating system as an internal 2.5" storage device.

Recommendations

Ensure the host system supports IDE devices and that the IDE connector is correctly aligned before powering on. Use anti‑static precautions when handling the mSATA SSD and adapter. For optimal results, confirm BIOS settings for IDE mode and update drivers or firmware if necessary.
