Interný U.2 adaptér DeLOCK 90169

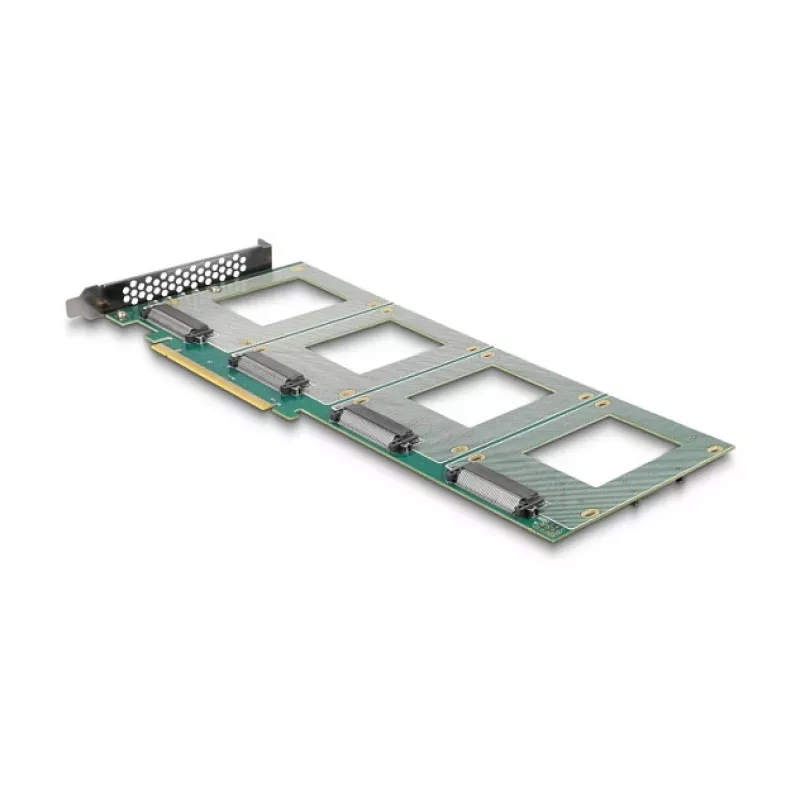

This Delock PCI Express card adds four U.2 interfaces to a computer and allows connection of up to four 2.5" U.2 SSDs. It is designed for systems where multiple U.2 drives are required for high-capacity or high-performance storage configurations.

Advantages

The card provides four SFF-8639 (U.2) ports on a single PCIe slot, enabling simultaneous connection of multiple 2.5" U.2 SSDs. It is suitable for expanding storage capacity without using additional drive bays and supports common U.2 SSDs used in workstations and servers.

Key specifications

How to use

Install the card into a compatible PCIe slot on the motherboard. Configure PCIe bifurcation in the motherboard BIOS to split the PCIe lanes so that all U.2 ports are active. Connect each 2.5" U.2 SSD to the SFF-8639 ports with compatible U.2 cables. If PCIe bifurcation is not configured or not supported by the motherboard, only the first SFF-8639 port will function.

Recommendations

Ensure your motherboard supports PCIe bifurcation and that BIOS settings are adjusted before installation; consult the motherboard manual for bifurcation options and lane configurations.
