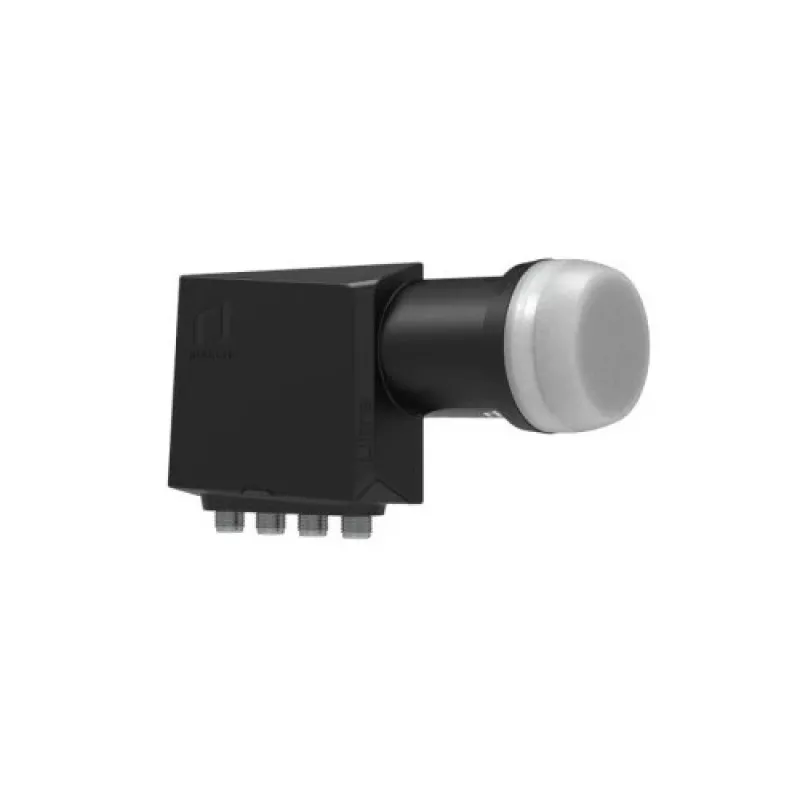

INVERTO QUAD BLACK ULTRA konvertor

The INVERTO QUAD BLACK ULTRA Converter is a high-performance Quad LNB designed for satellite reception. It features four independent outputs, enabling connection to multiple receivers or a single multi-tuner device. With ultra-low noise figure and wide frequency coverage, it ensures excellent signal quality for both standard and high-definition content, including UHD 4K.

Advantages

This LNB offers superior signal reception with a noise figure of only 0.2 dB, ensuring minimal signal degradation. Its robust weatherproof housing guarantees reliable operation in harsh outdoor conditions. The quad output design provides flexibility for multi-room installations without additional splitters.

Suitable for

• Satellite TV systems requiring connection of up to four receivers
• Installations with DVB-S, DVB-S2, or UHD 4K compatible equipment
• Outdoor use in temperatures ranging from -30°C to +60°C

Key specifications

• LNB Type: Quad LNB
• Number of Outputs: 4
• Input Frequency Range (Low Band): 10.7 - 11.7 GHz
• Input Frequency Range (High Band): 11.7 - 12.75 GHz
• Output Frequency Range (Low Band): 950 - 1950 MHz
• Output Frequency Range (High Band): 1100 - 2150 MHz
• LO Frequency (Low Band): 9.75 GHz
• LO Frequency (High Band): 10.6 GHz
• Noise Figure: 0.2 dB (typical)
• Conversion Gain: 55 dB (min)
• Cross Polarization Isolation: 22 dB (min)

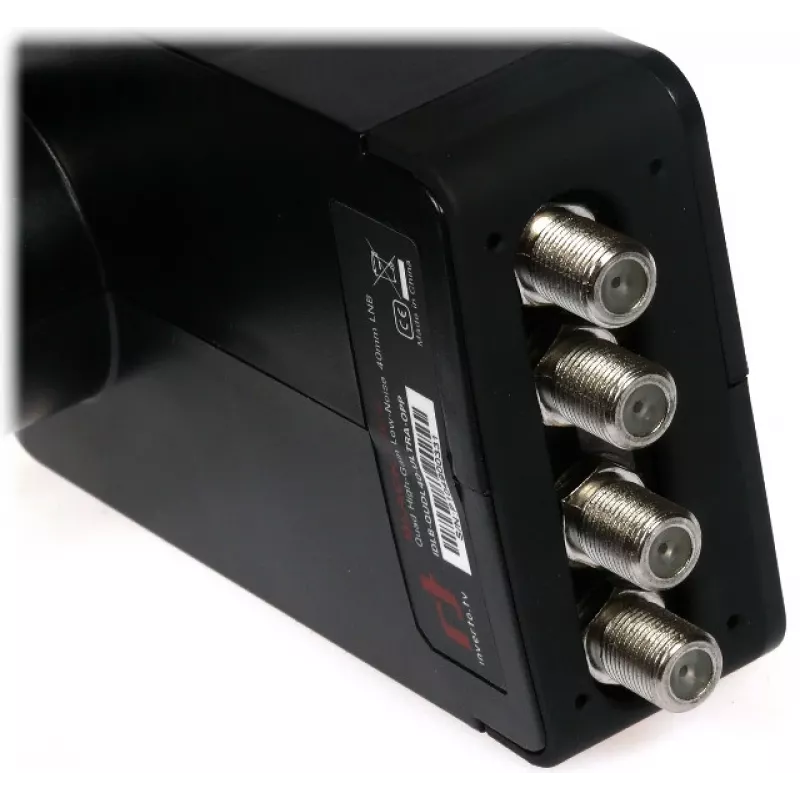

• Output Connector: F-Type
• Feedhorn Diameter: 40 mm
• Current Consumption: 180 mA (max)
• Polarization Switching Voltage (Vertical): 11.5 - 14 V
• Polarization Switching Voltage (Horizontal): 16 - 19 V
• Band Switching: 22 kHz
• Weather Protection: Yes (Waterproof housing)

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper alignment of the satellite dish. This LNB is compatible with most standard satellite receivers and supports UHD 4K signals.
