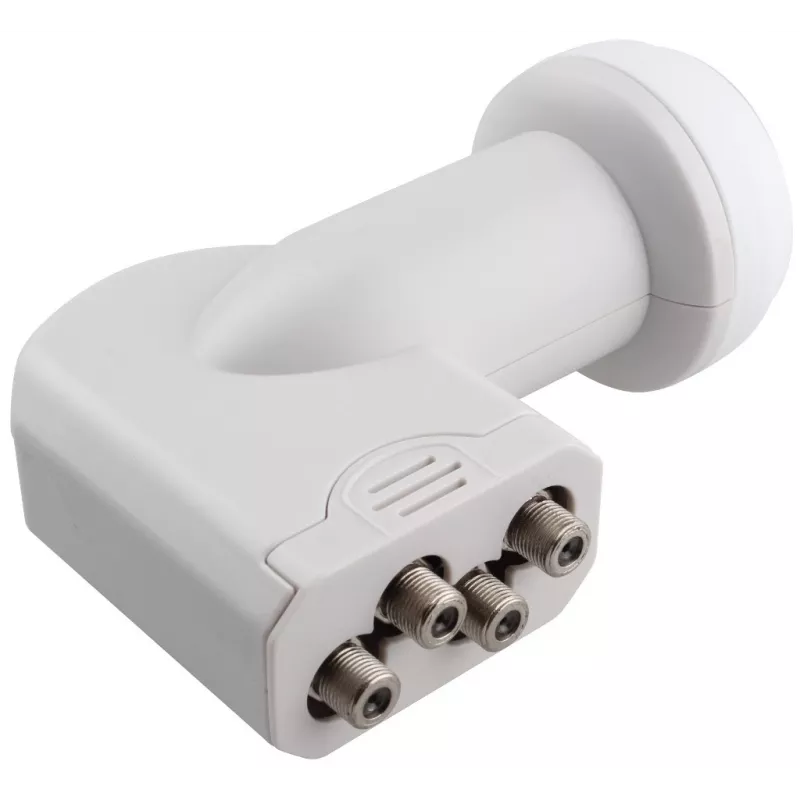

OPTICUM Quad univerzálny LNB LQP-04H 4 výstupy 0,1 dB šumové číslo

The OPTICUM Quad Universal LNB LQP-04H is a high-performance satellite low-noise block downconverter designed for reliable signal reception. With four independent outputs, it supports multiple receivers or recording devices simultaneously. Featuring an ultra-low noise figure of 0.1 dB, it ensures excellent signal quality even in weak signal areas. The LNB is compatible with DVB-S, DVB-S2, HDTV, 3D, and 4K UHD signals, making it ideal for modern satellite installations.

Advantages

Ultra-low noise figure (0.1 dB) for superior signal reception. Quad outputs allow connection of up to four receivers. Integrated retractable shield provides weather protection. Wide operating temperature range (-30°C to +60°C) ensures reliability in various climates. Supports high-definition and 4K UHD content.

Suitable for

• Satellite TV installations requiring multiple receivers
• HDTV, 3D, and 4K UHD satellite systems
• Professional and residential satellite setups
• Areas with weak satellite signals needing high sensitivity

Key specifications

• LNB Type: Universal Quad
• Number of Outputs: 4
• Noise Figure: 0.1 dB
• Input Frequency Range: 10.7 - 12.75 GHz
• LO Frequency (Low Band): 9.75 GHz
• LO Frequency (High Band): 10.6 GHz
• Output Frequency Range: 950 - 2150 MHz
• Conversion Gain: 50 - 65 dB
• Cross Polarization Isolation: >20 dB
• Image Rejection: >40 dB
• Feed Horn Diameter: 40 mm
• Operating Temperature Range: -30°C to +60°C
• Vertical Polarization Control Voltage: 11.5 - 14 V DC
• Horizontal Polarization Control Voltage: 16 - 19 V DC
• Current Consumption: Max. 180 mA
• Output Connector Type: F-Type

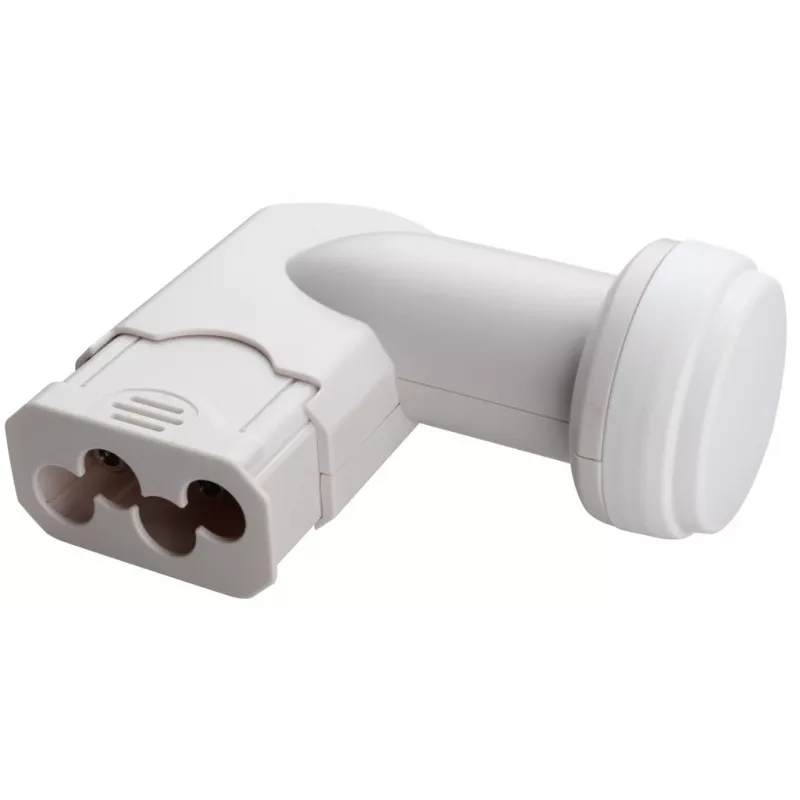

• Weather Protection: Integrated Retractable Shield
• Signal Compatibility: DVB-S, DVB-S2, HDTV, 3D, 4K UHD

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper alignment of the satellite dish. The LNB is compatible with standard F-type connectors. Suitable for use with most satellite receivers supporting Universal LNB.
