IP bezpečnostná kamera Axis 02345-001 Dome 1280 x 720

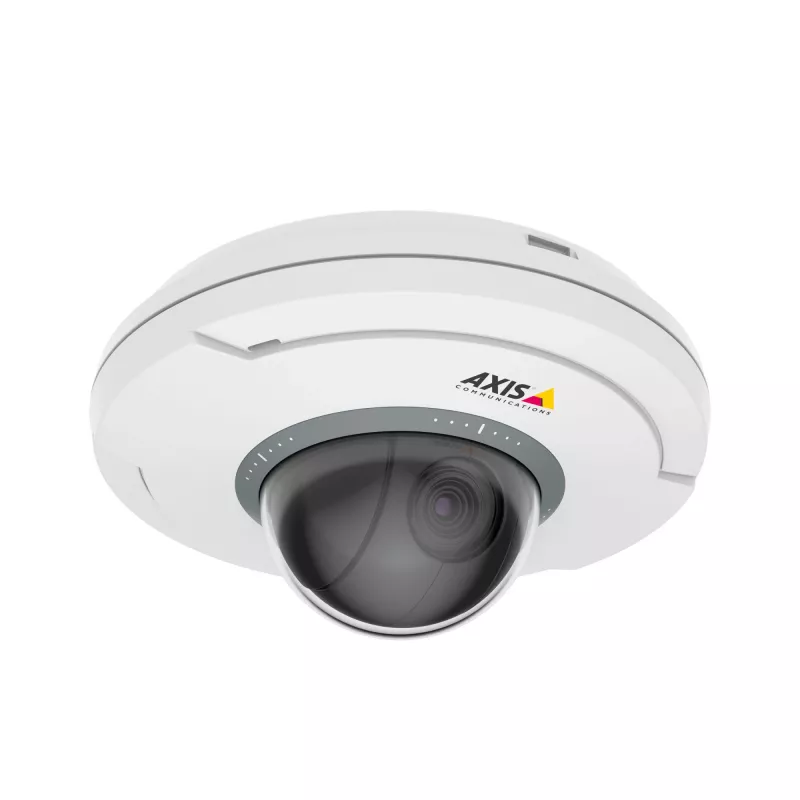

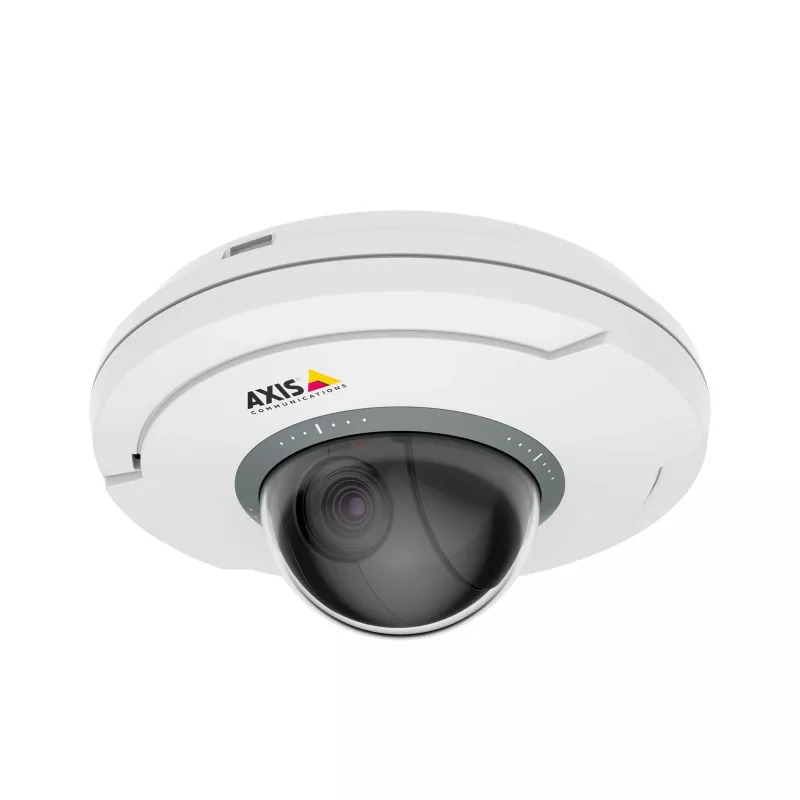

AXIS M5074 is a compact, palm-sized PTZ dome camera for indoor surveillance, delivering HDTV 720p (1280 x 720) resolution. The camera supports 5x optical zoom and 12x digital zoom combined with a focal length range of 2.2–11.0 mm to provide wide overviews and detailed close-ups. It has a dome design for ceiling or wall mounting, wired Ethernet connectivity, a built-in microphone and low-light sensitivity down to 0.1 lx. Tilt range is 0–90° with a tilt speed up to 100 °/s, and the unit weighs approximately 0.38 kg.

Advantages

The device offers PTZ control with fast tilt movement and a dual zoom system for versatile monitoring, plus HDTV 720p image quality for clear detail. Integrated analytics (including scream detection) and built-in cybersecurity features add extra situational awareness and protection against unauthorized access. The compact dome form factor and wired Ethernet connectivity make it suitable for reliable indoor installations where discreet, fixed PTZ monitoring is required.

Suitable for

• Indoor retail spaces and shop floors
• Office corridors and reception areas
• Public indoor facilities such as lobbies or waiting rooms
• Schools and healthcare indoor zones

Key specifications

• Resolution: 1280 x 720 (HDTV 720p)
• Sensor type: CMOS
• Optical zoom: 5x; Digital zoom: 12x
• Focal length: 2.2–11.0 mm
• Frame rate: up to 60 fps
• Minimum illumination: 0.1 lx
• Tilt range: 0–90°; Tilt speed: up to 100 °/s
• Mounting: ceiling or wall
• Connectivity: wired Ethernet (no Wi‑Fi)
• Placement: indoor
• Built-in microphone
• Color: white
• Weight: approx. 0.38 kg

How to use

Mount the dome on a suitable ceiling or wall surface following the manufacturer’s mounting instructions and connect the camera to the network via Ethernet. Configure the camera using its web interface or management software to set resolution, frame rate and PTZ limits. Use the pan/tilt/zoom controls to create patrol presets and define analytics rules such as scream detection. Ensure the built-in microphone is enabled if audio detection is required.

Recommendations

Place the camera at a height and angle that provides unobstructed views of the monitored area. For best image detail at distance, rely primarily on the optical 5x zoom before using digital zoom. Keep firmware updated and restrict network access with the camera’s cybersecurity settings to reduce the risk of unauthorized access.
