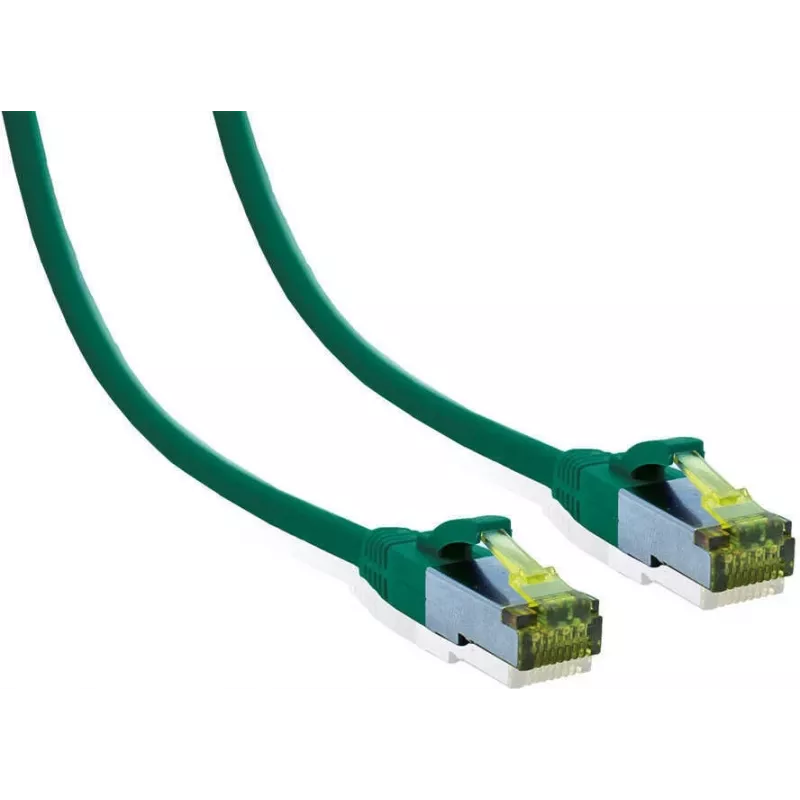

IT-BUDGET Premium patch kábel Cat.6A s Cat.7 surovým káblom - 600 MHz - LSZH - PoE+ - 10 Gbit - zelený - 5 m

The IT-BUDGET Premium Patch Cable is a high-performance network cable designed for demanding data center and LAN applications. It combines Cat.6A performance with a Cat.7 raw cable construction, offering exceptional bandwidth and reliability. The cable is fully made of 100% copper and features S/FTP shielding (PiMF) for excellent protection against electromagnetic interference. With a frequency bandwidth of 600 MHz and support for 10 Gigabit Ethernet (10GBase-T), it ensures fast and stable data transmission. The LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in enclosed spaces, and it supports PoE and PoE+ (IEEE 802.3af/at) for powering devices over the network.

Advantages

This patch cable offers superior performance and durability. The 100% copper conductors ensure optimal signal integrity, while the S/FTP shielding minimizes crosstalk and external interference. The LSZH jacket reduces toxic fumes in case of fire, making it ideal for public and commercial buildings. It is also halogen-free, contributing to environmental safety.

Suitable for

• Data networks and LAN connections
• PoE and PoE+ applications (e.g., IP cameras, access points)
• Data centers and server rooms
• High-speed 10 Gigabit Ethernet networks

Key specifications

• Cable Type: Patch Cable
• Cable Category (Assembled): Cat.6A
• Raw Cable Category: Cat.7
• Frequency Bandwidth: 600 MHz
• Data Transfer Rate: 10 Gbps
• Shielding: S/FTP (PiMF)
• Conductor Material: 100% Copper
• Conductor Construction: Stranded
• Conductor Gauge: AWG 26/7
• PoE Support: PoE, PoE+
• Jacket Material: LSZH (Halogen-Free)
• Connector Type: RJ45 (8P8C) with gold-plated contacts
• Cable Length: 5 m
• Colour: Green
• Wiring Standard: TIA/EIA 568B
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -20°C to 60°C
• Flammability Rating: IEC 60332-1, IEC 61034, IEC 60754-2

Recommendations

For optimal performance, use this cable with compatible 10 Gigabit Ethernet equipment. Ensure proper cable management to avoid physical damage. This cable is ideal for structured cabling systems requiring high reliability and safety.
