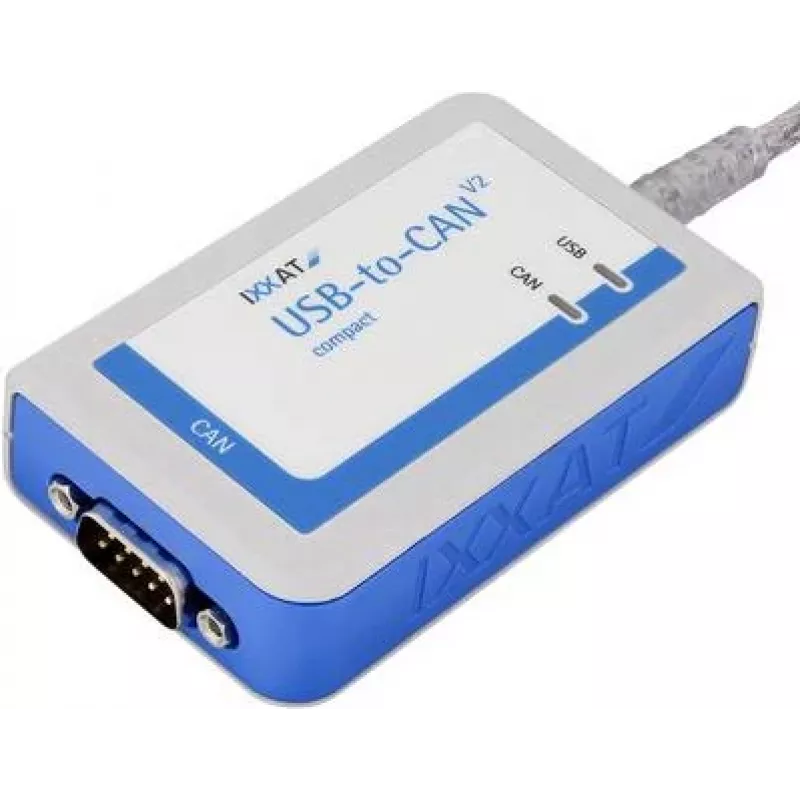

IXXAT USB-to-CAN V2 compact rozhranie, galvanicky oddelené, 1x CAN/CAN FD, USB 2.0, D-Sub 9 1.01.0281.12001

In industrial automation and automotive test environments, engineers need a compact, reliable way to connect a PC to a CAN or CAN FD network. The IXXAT USB-to-CAN V2 compact provides a galvanically isolated USB 2.0 interface with one CAN/CAN FD channel, supporting both CAN 2.0A and 2.0B protocols. It is powered directly from the USB port, making it ideal for mobile diagnostics and field service applications.

Key specifications

• Interface: USB 2.0 (Full Speed) to CAN/CAN FD
• CAN channels: 1
• Protocol support: CAN 2.0A (11-bit ID), CAN 2.0B (29-bit ID)
• CAN FD support: Yes
• Classic CAN data rate: up to 1 Mbit/s
• CAN FD data rate (data phase): up to 8 Mbit/s
• Galvanic isolation: 1 kV between USB and CAN
• CAN connector: D-Sub 9-pin male
• USB connector: USB Type B
• Power supply: USB powered (5 V DC)
• Current consumption: max. 100 mA
• Operating temperature: -20 °C to +70 °C
• Supported OS: Windows 10/8/7, Linux, macOS
• API support: VCI (Windows), NTCAN (Windows/Linux), SocketCAN (Linux)

Why choose it

The galvanic isolation protects your PC from ground loops and voltage spikes, while the compact plastic housing and USB power make it easy to carry and deploy. With broad OS and API support, it integrates quickly into existing toolchains.

Ideal use cases

• CAN/CAN FD network diagnostics and monitoring
• Automotive ECU development and testing
• Industrial automation system commissioning
• Field service and mobile data logging

Good to know

The device includes LED indicators for CAN and USB status. It is certified to CE and FCC standards.
