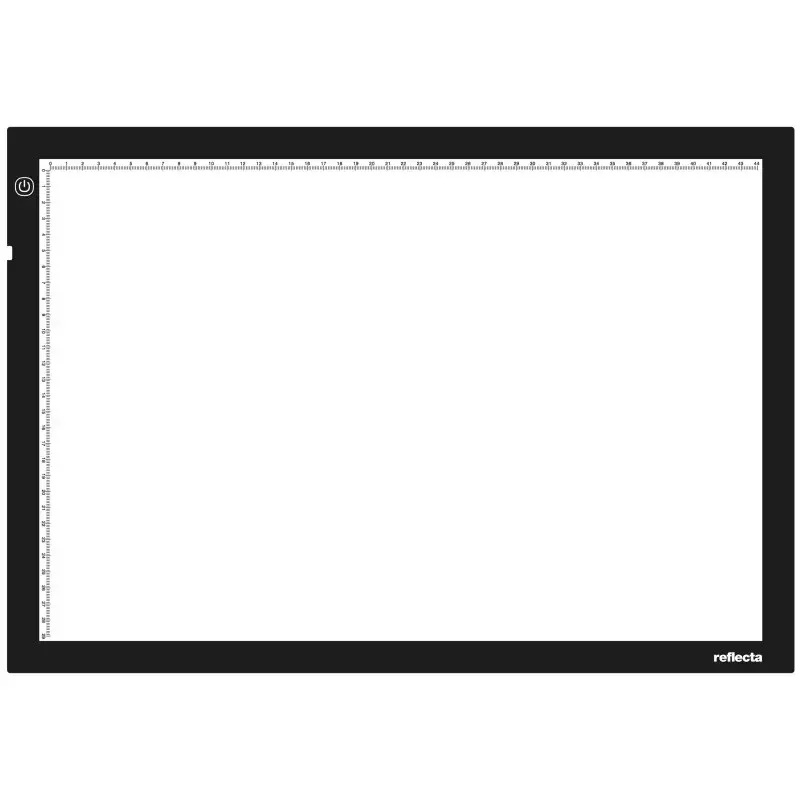

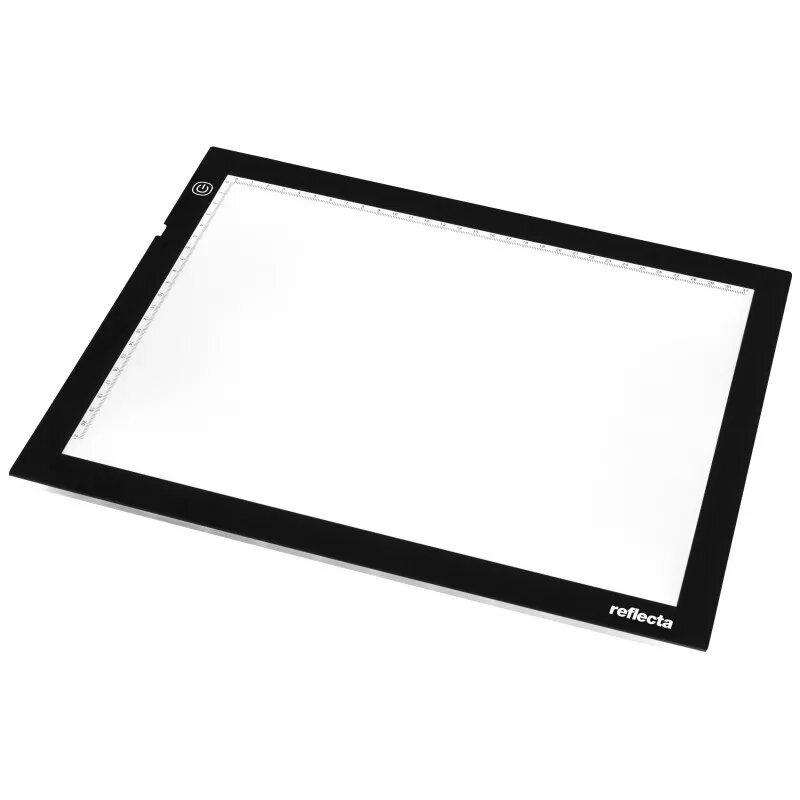

Jednoduchý fotorámik Reflecta LED Light Pad A3 super tenký čierny 44 x 29 cm

Reflecta presents the Super Slim LED Light Pad in A3 format, a black single-picture light pad designed for images up to 44 x 29 cm. The device combines a slim profile and maintenance-free LED technology to provide an evenly illuminated, heat-free working surface suitable for viewing slides, negatives, tracing and overlaying transparent materials. With dimmable LEDs and an approximate life expectancy of 50,000 hours, the pad is suitable for hobby and professional use in photography, film, printing, tattooing and illustration.

Advantages

The A3 Super Slim Light Pad offers uniform illumination across the entire surface including the corners, dimmable brightness control, extremely low profile at 8 mm thickness and a lightweight design of about 1600 g for easy transport and storage. The LED panel is maintenance-free and provides long service life without heat generation, making it suitable for prolonged use with delicate film or paper materials.

Suitable for

• Viewing slides and negatives
• Tracing and refining sketches or illustrations
• Inspecting film and photographic materials
• Tattoo stencil preparation and transfer work
• Overlaying transparencies for layout and print work

Key specifications

• Format: A3 (usable area suitable for approx. 44 x 29 cm images)
• Dimensions (approx.): width 489 mm, depth 339 mm, height 8 mm
• Weight: approx. 1,600 g
• Light source: maintenance-free LEDs, dimmable
• LED life expectancy: approx. 50,000 hours

How to use

Place the Reflecta LED Light Pad on a flat, stable surface and connect the power supply. Position the slide, negative, tracing paper or transparency on the illuminated surface and adjust the brightness using the dimmer control to achieve the desired contrast for viewing or tracing. For multi-layer work, align and fix the transparent sheets before making marks or edits. Turn off and unplug the unit after use.

Recommendations

For best results, start with a low brightness setting and increase gradually to avoid glare. Use on a clean, dust-free surface and handle film or paper by the edges to prevent fingerprints. Store the pad flat or upright in a dry place when not in use to preserve the slim profile and LED panel.
