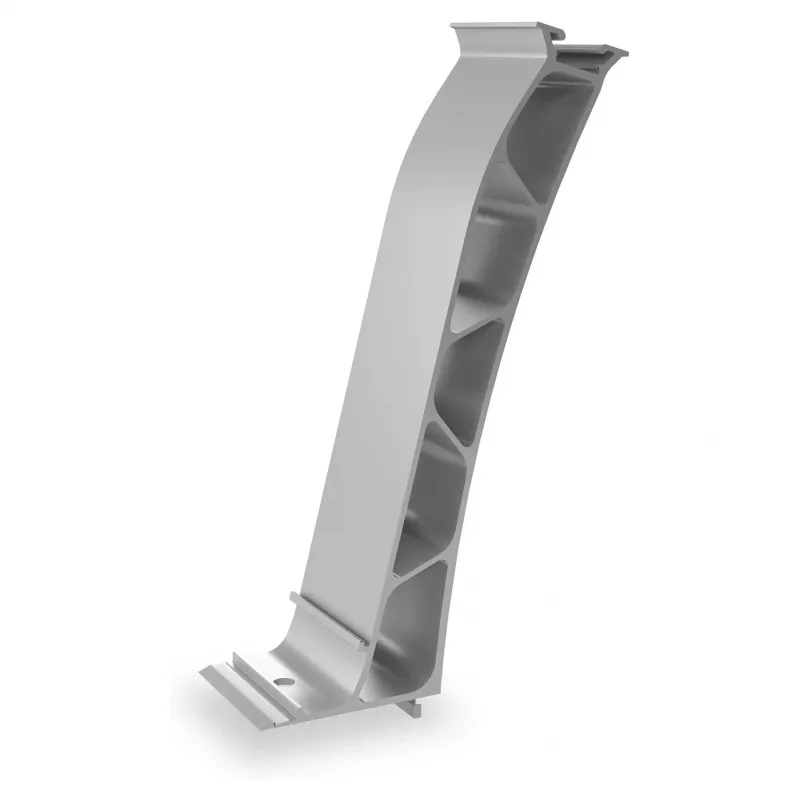

K2 Systems Dome 6.15 Peak základný prvok pre montáž solárnych panelov na plochú strechu (2004174)

With a maximum snow load contribution of up to 5.4 kN/m² and wind load up to 2.4 kN/m², this base element delivers exceptional structural performance for flat-roof solar installations. The screwless click-in design slashes assembly time, while the UV-stabilized polyamide body shrugs off decades of sun, rain, and temperature swings from -30°C to +80°C.

Overview

Part of the K2 Dome 6.15 system, this base element forms the structural foundation for landscape or portrait module orientation. The black, corrosion-proof plastic construction eliminates metal fatigue and grounding concerns, making it ideal for commercial and residential flat-roof PV projects. Fire rating B2 (normal flammability) and recyclable materials align with modern building codes and sustainability goals.

What stands out

• Click-in, screwless mounting – no tools, no corrosion, no loose fasteners.
• High UV resistance keeps the base dimensionally stable for 25+ years.
• Contributes to system certifications including TÜV Rheinland, MCS, and DIBt.
• Supports both landscape and portrait module layouts for design flexibility.
• Lightweight yet rugged: built to handle heavy snow and high wind zones.

Technical details

• Product type: Base element for flat roof system
• System compatibility: K2 Dome 6.15
• Material: UV-stabilized polyamide (PA)
• Colour: Black
• Installation method: Click-in / screwless
• Temperature range: -30°C to +80°C
• Fire rating: B2 (normal flammability)
• Recyclable: Yes
• Max. snow load contribution: up to 5.4 kN/m²
• Max. wind load contribution: up to 2.4 kN/m²

Our verdict

A robust, maintenance-free foundation for K2 Dome 6.15 flat-roof systems, combining tool-free installation with proven load capacity for demanding environments.
