Kábel Schuko Bachmann 5 m H05VV-F 3G 1,50 mm² biely

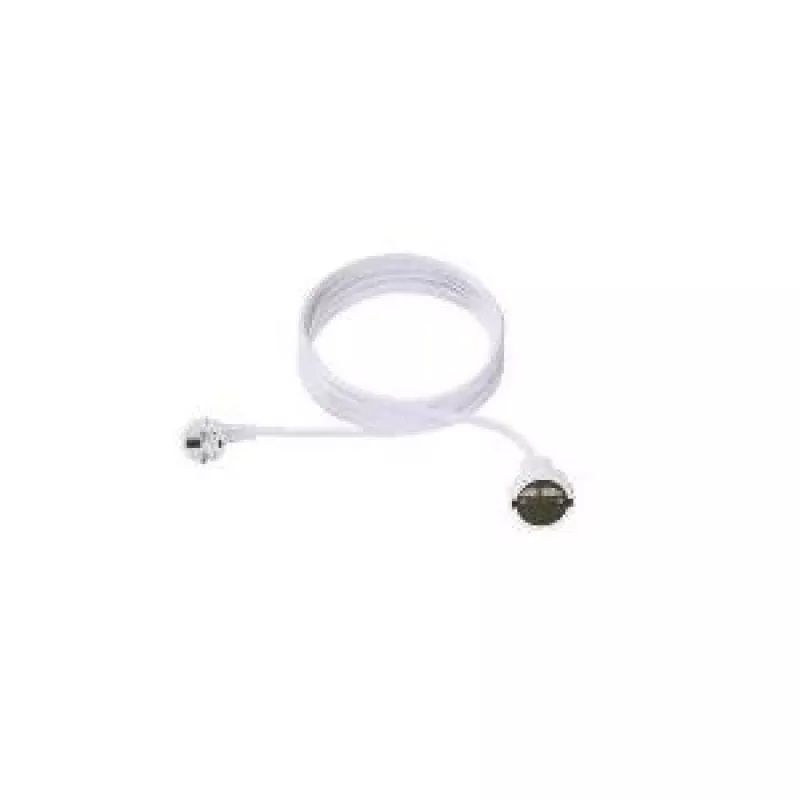

The Bachmann Schuko cable 5 m H05VV-F 3G 1.50 mm² in white provides a grounded power connection for portable equipment and household appliances. It is rated for 250 V and 16 A and uses a PVC-insulated flexible H05VV-F conductor construction. Both ends are moulded: one end has a right-angle plug with a dual earthing contact system and the other end has a moulded earthing contact coupling, suitable for extending grounded Schuko connections.

Advantages

This cable offers reliable grounded protection with a dual earthing contact at the right-angle plug and a matching earthing coupling. The 5 m length gives additional reach for devices without altering the original plug, while the H05VV-F 3G 1.50 mm² construction ensures flexibility and compatibility with household power sockets rated 16 A/250 V. The white PVC jacket provides basic mechanical protection and easy visual integration into domestic environments.

Suitable for

• Extending grounded Schuko power connections for household appliances
• Temporary power supply for portable equipment up to 16 A
• Installation where a right-angle plug reduces strain on the socket

Key specifications

• Cable length: 5 m
• Cable type: H05VV-F, 3G 1.50 mm²
• Rated voltage: 250 V~
• Rated current: 16 A
• Colour: White
• Construction: PVC insulated, moulded right-angle plug and moulded earthing coupling

How to use

Insert the right-angle Schuko plug into a compatible grounded 16 A/250 V socket and connect the device to the earthing contact coupling at the other end. Ensure both plug and coupling are fully inserted and the cable is not pinched or heavily bent near the moulded ends. Do not use the cable if the insulation is damaged or if contacts are loose.

Recommendations

Use indoors in dry environments and avoid exposure to heat sources exceeding 70°C. For continuous or heavy-duty industrial use, select a cable with a higher conductor cross-section and appropriate industrial rating.
