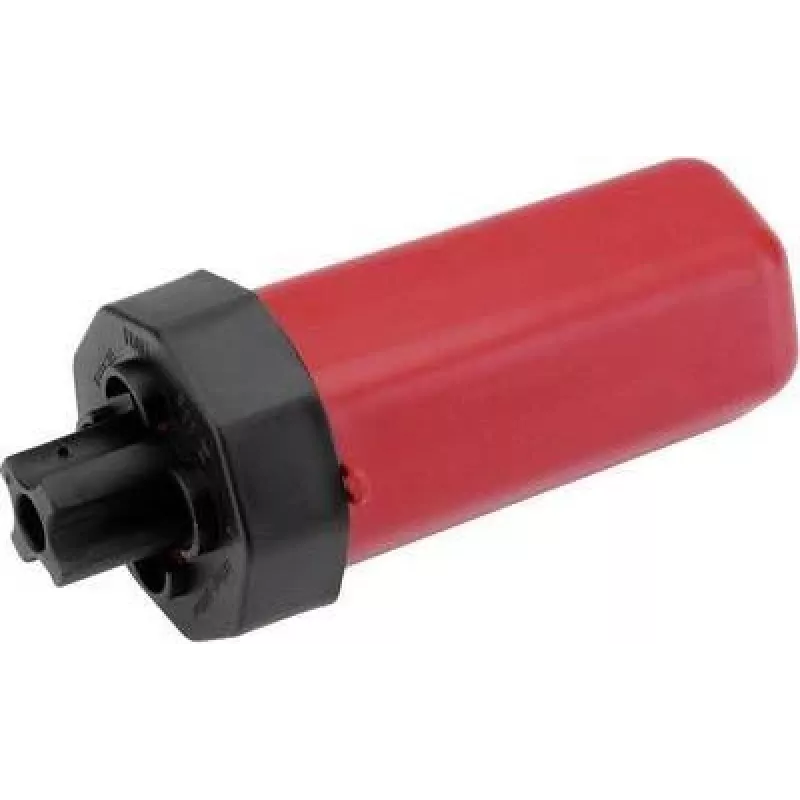

Káblová priechodka CIMCO zásuvková spojka 6–14 mm 184760 TDM 1

CIMCO Dosenmuffe 6–14 mm 184760 TDM 1 is a cable gland designed to secure and seal cables with diameters from 6 to 14 mm. Manufactured by cimco, the part provides strain relief and a reliable entry point for cables into junction boxes and enclosures. It is intended for installation tasks where maintaining cable fixation and preventing loosening or ingress at the entry point are required.

Advantages

The cable gland offers a compact design that fits standard junction boxes and provides mechanical protection and strain relief for single cables. Its construction ensures a tight fit around the cable to reduce movement and wear at the entry point. The product is suitable for repeated use during installation and maintenance operations and simplifies wiring by keeping cables aligned and fixed where they enter enclosures.

Suitable for

Key specifications

How to use

Drill or use an existing knockout in the junction box to match the gland mounting style, then insert the gland into the opening and secure it according to the enclosure type (snap-in or threaded mounting). Pass the cable through the gland and adjust until the sealing element fits snugly around the cable. Ensure the cable is positioned to provide strain relief and tighten any locking feature if present. Verify that the cable is fixed and that no excessive movement is possible after installation.

Recommendations

Choose the correct cable diameter within the 6–14 mm range to ensure an effective seal. Inspect the gland and cable insulation for damage before installation. When used in environments with special requirements (e.g., moisture, oils or mechanical vibration), select compatible enclosure materials and verify suitability for the conditions. Periodic inspection during maintenance helps maintain cable fixation and prevents loosening.
