Káblový konektor D-Sub 25 DeLOCK 66597 modrý

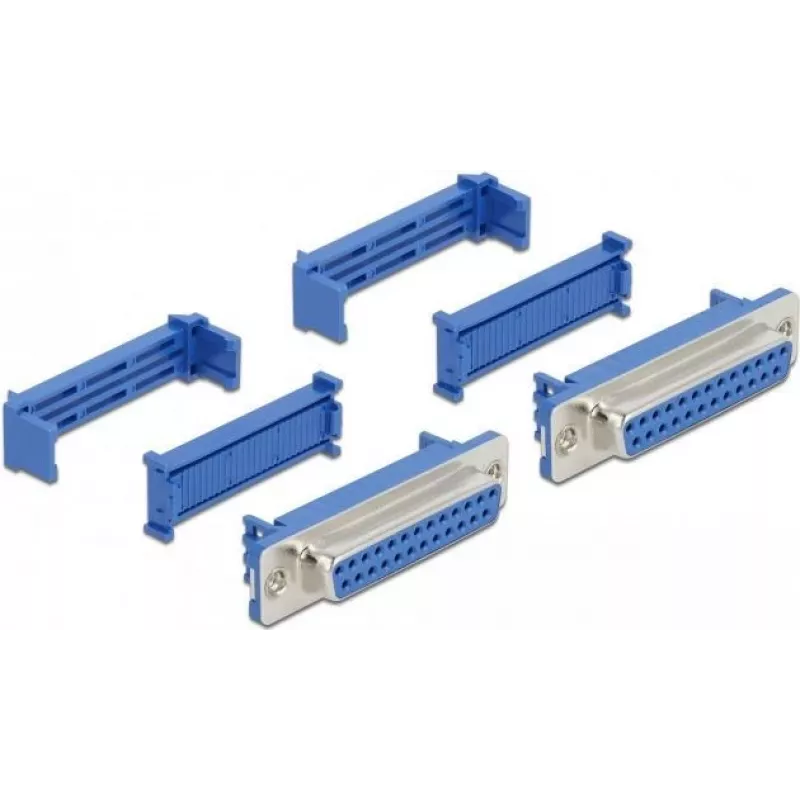

The DeLOCK 66597 Wire Connector is a D-Sub 25 female connector in blue, designed for reliable signal connections in computer and electronic setups. With compact dimensions (53.1 mm width, 17.5 mm depth and 12.8 mm height) the connector is suitable for installations where space is limited. The metal contacts and molded housing provide secure mating and strain relief for wiring in desktop, rack or embedded applications.

Advantages

This D-Sub 25 female connector offers a compact footprint and a standardized interface for 25-pin D-Sub applications. The colored molded housing simplifies identification in multi-connector assemblies. Its measured dimensions make it suitable for use in confined spaces while maintaining reliable mechanical connection and contact alignment. The connector is compatible with standard male D-Sub 25 plugs and intended for straightforward installation into wire harnesses or cable assemblies.

Suitable for

• Serial communications and parallel interface connections using D-Sub 25
• Computer and industrial equipment where a female D-Sub 25 is required
• Cable assemblies, patch panels and cable repair or replacement tasks

Key specifications

• Connector type: D-Sub 25 female (25-pin)
• Colour: Blue
• Width: 53.1 mm
• Depth: 17.5 mm
• Height: 12.8 mm
• Housing: molded profile for strain relief and identification

How to use

Prepare the cable or wire harness according to the required wiring diagram and ensure the mating male D-Sub 25 connector matches the pinout. Insert individual wires into the connector housing as specified by the assembly procedure or solder/contact termination method intended for this type of D-Sub female connector. After termination, verify mechanical fit by mating with a compatible D-Sub 25 male plug and check electrical continuity for each pin before final installation.

Recommendations

Use the connector in environments within the operating limits of the connected equipment, avoid excessive mechanical stress on the housing and cables, and perform continuity and insulation tests after assembly. For identification in multi-connector setups, the blue colour can be used as part of a colour-coding scheme.
