Káblový rozbočovač Extralink EX.0653 modrý biely keramika PVC

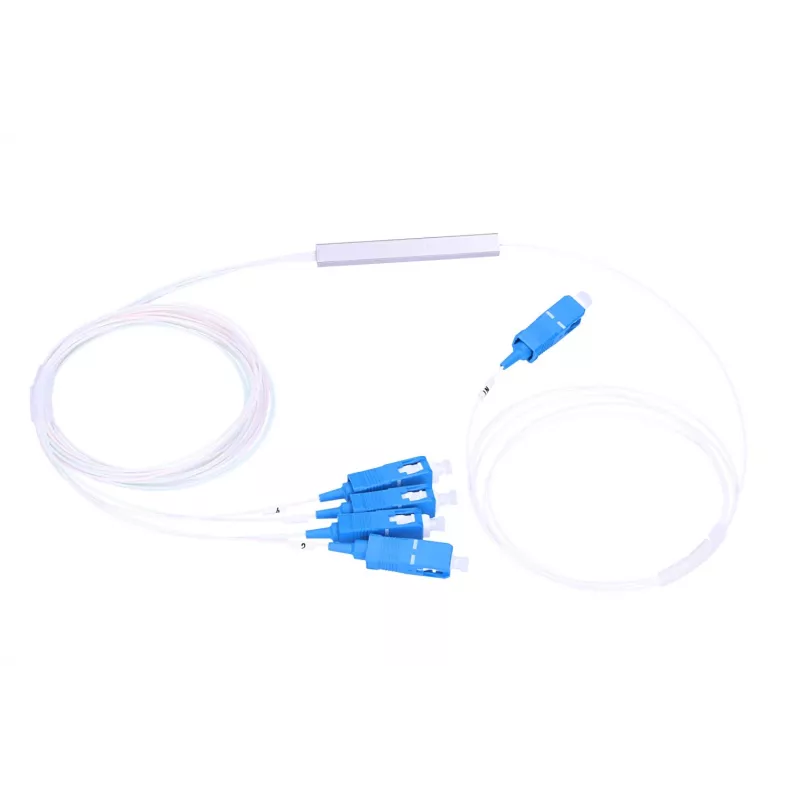

EXTRALINK PLC 1:4 0.9mm fiber optic splitter with SC/UPC connectors is designed for passive optical distribution in FTTH networks. The splitter provides symmetrical 1:4 power distribution and uses a compact steel box housing with SC/UPC connectors. It is built on a 0.9 mm pigtail cable for easy routing and installation, and the unit is packaged in a blister to prevent cable tangling. The product features ceramic and PVC components and is sold under the Extralink brand (model EX.0653, EAN 5902560360653).

Advantages

The PLC splitter offers uniform power splitting across four outputs, compact steel housing for easy mounting in switches and optical enclosures, and SC/UPC connectors for reliable connections. The thin 0.9 mm pigtail cable simplifies routing in fiber organizers, while ceramic connector parts and PVC elements ensure mechanical stability and long service life.

Suitable for

• FTTH (fiber to the home) passive networks
• Splitting optical signals from an OLT or distribution point to multiple subscribers
• Installation inside fiber distribution panels, couplers and small enclosures
• Home and small office fiber installations requiring 1:4 splitting

Key specifications

• Type: PLC splitter, 1:4 symmetrical power distribution
• Pigtail diameter: 0.9 mm
• Connectors: SC/UPC input and outputs
• Housing: compact steel box
• Materials: ceramic connector ferrules, PVC components
• Packaging: blister pack
• Brand / MPN / EAN: Extralink EX.0653 / EX.0653 / 5902560360653

How to use

Connect the input SC/UPC connector to the upstream optical line (for example an OLT or distribution cable). Route and secure the four SC/UPC output pigtails to the subscriber terminations or to patch panels. Mount the compact steel housing inside a switch cabinet, fiber distribution box or organizer as required. Observe standard fiber handling procedures: avoid sharp bends, protect connectors from contamination and ensure proper connector cleaning before mating.

Recommendations

Install the splitter in a dry, dust-free enclosure and use protective dust caps during storage and handling. Follow manufacturer guidelines for insertion loss and link budget when designing FTTH networks to ensure adequate signal levels at end points.
