Káblový rozbočovač Kathrein EBC 110

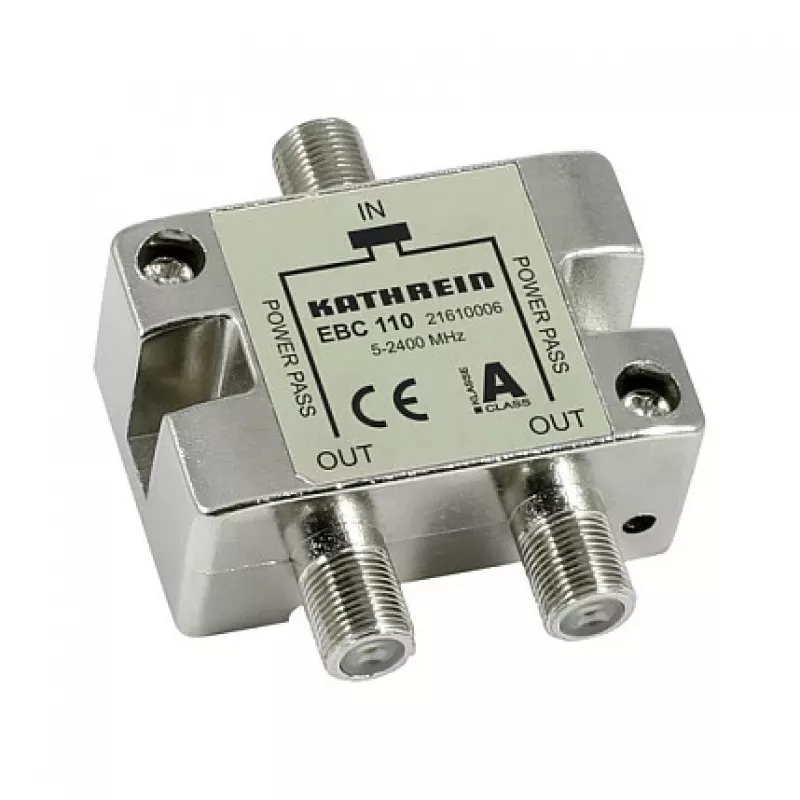

Kathrein EBC 110 is a 2-way cable splitter for distributing cable signals across two outputs. It supports a wide frequency range from 5 to 2400 MHz and is built with F-type connectors and screening class A for reliable shielding. The compact silver housing (55 × 52 × 23 mm) includes an earth clamp and allows remote feed to the inputs with a maximum of 24 V / 0.5 A. No isolating diodes are fitted.

Advantages

The splitter provides broad frequency coverage suitable for various cable and TV systems, stable signal distribution to two outputs, robust screening class A for reduced interference, and a compact metal housing with integrated earth clamp. Remote feed capability up to 24 V / 0.5 A enables power supply of remote amplifiers or devices connected through the splitter.

Suitable for

Key specifications

How to use

Mount the Kathrein EBC 110 in a dry, accessible location and attach the earth clamp to a suitable grounding point. Connect the input coaxial cable to the input F-connector and connect destination cables to the two output F-connectors. If a remote feed is required, ensure the supplying device provides no more than 24 V and 0.5 A to avoid damage. Verify connections are tight to maintain screening performance.

Recommendations

For best performance, use high-quality coaxial cables and F-connectors, avoid sharp bends in cables, and place the splitter where it is protected from moisture. Do not exceed the rated remote feed voltage and current. Check compatibility of connected devices with the splitter's frequency range.
