Kaiser Elektro dutinová prístrojová krabica 9061-01 pre tenké dosky h 35mm

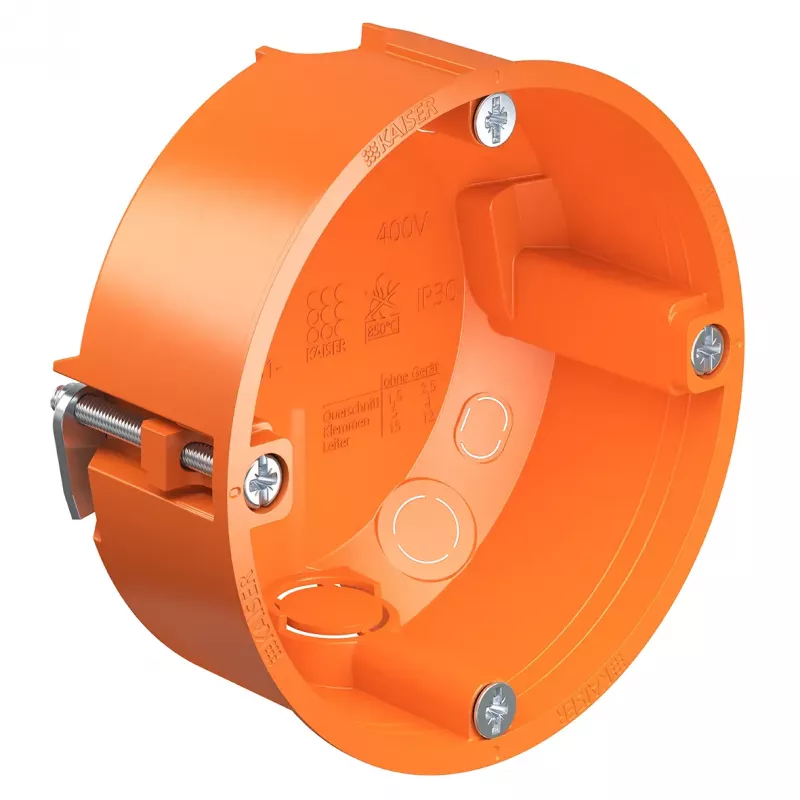

The Kaiser Elektro Cavity Wall Device Box 9061-01 is specifically designed for thin planking applications with a height of 35 mm. This high-quality plastic box ensures secure and reliable installation of switches, sockets, and other electrical devices in cavity walls. Compliant with DIN VDE 0606-1, it offers excellent fire safety and halogen-free materials.

Advantages

Tool-free cable entry simplifies installation, while the integrated pipe entries (M20/M25) provide flexibility for various wiring needs. The box features 8 cable entries and 2 pipe entries, ensuring ample capacity for complex setups. Its flame-retardant properties and IP20 protection guarantee safety and durability.

Suitable for

• Switches and sockets in cavity walls
• Thin planking with thickness from 7 to 35 mm
• Electrical installations requiring halogen-free components

Key specifications

• Installation Depth: 35 mm
• Drill Hole Diameter: 68 mm
• Material: Plastic
• Halogen-free: Yes
• Flame Retardant: Yes
• Internal Volume: Approx. 60 cm³
• Colour: Orange
• Protection Class: IP20
• Standard Compliance: DIN VDE 0606-1

Recommendations

For optimal performance, use with compatible devices and ensure proper wall thickness. The box is designed for screw mounting and provides reliable support for electrical components.
