Kaiser Elektro protipožiarna prístrojová spojovacia krabica podomietková pre protipožiarne steny

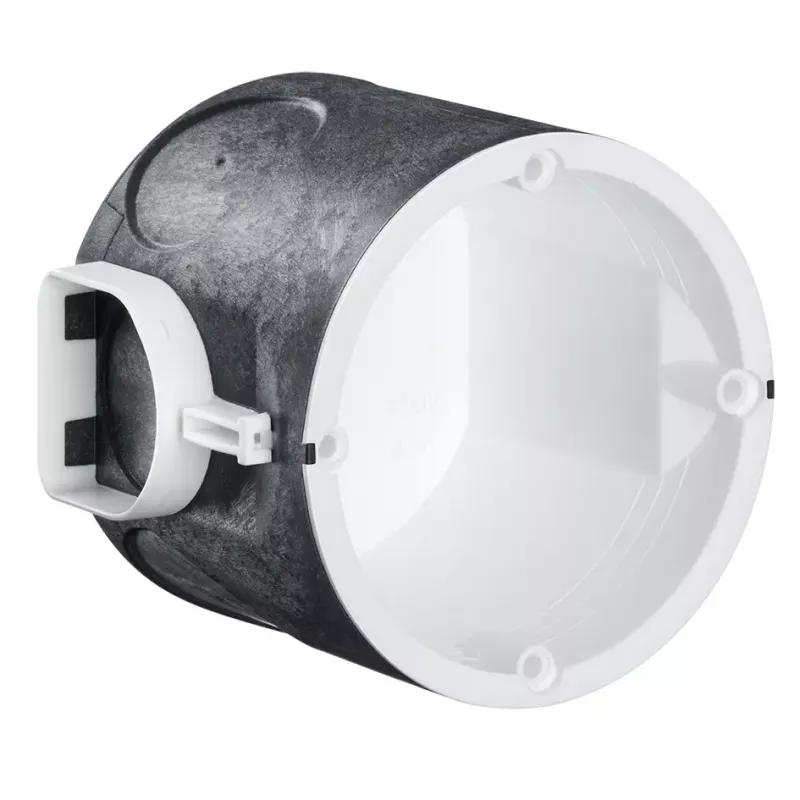

The Kaiser Elektro 1564-01 Brandschutz Geräteverbindungsdose is a high-quality flush-mounted device connection box specifically designed for use in fire protection walls. It ensures reliable electrical installations while maintaining the required fire resistance rating. The box is made of halogen-free special plastic and features integrated plaster cover for clean installation.

Advantages

This connection box offers 90-minute fire resistance (HWD 90) in accordance with DIN 4102-11, making it ideal for safety-critical environments. It is air-tight and halogen-free, contributing to improved indoor air quality and safety. The flexible sealing membranes allow for easy cable entry and sealing.

Suitable for

• Fire protection walls
• Solid walls
• Lightweight partition walls
• Flush-mounted installations requiring fire resistance

Key specifications

• Product Type: Device Connection Box
• Mounting Type: Flush-mounted
• Fire Resistance Class: HWD 90 (90 minutes)
• Material: Halogen-free special plastic
• Cable Entries: 4 x M25/M32, 4 x M20 (flexible sealing membranes)
• Number of Device Screws: 2
• Installation Opening Diameter: 74 mm
• Installation Depth: 65 mm
• Min. Wall Thickness: 100 mm
• Halogen-Free: Yes
• Air-Tight: Yes
• Protection Degree (IP): IP30
• Color: Orange
• Max. Conductor Cross-Section: 2.5 mm²
• Standards: DIN EN 60670-1, DIN 4102-11
• Design: Round
• Special Feature: Integrated plaster cover

Recommendations

For optimal fire safety, ensure that the installation complies with local building regulations and that the box is properly sealed after cable installation. Use only with compatible fire-resistant wall constructions.
