Kaiser Elektro rozvodná krabica 205x235x72mm 9197-91

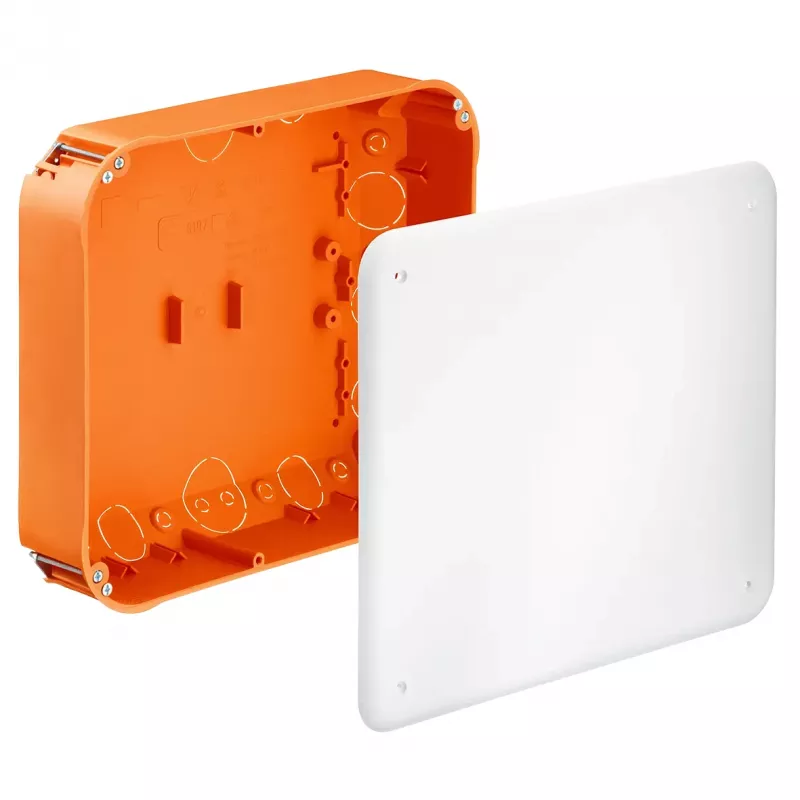

The Kaiser Elektro Junction Box 9197-91 is a high-quality, halogen-free thermoplastic junction box designed for surface mounting. With dimensions of 205 x 235 x 72 mm, it offers ample space for cable connections in electrical installations. The box features an IP54 protection rating and IK07 impact resistance, making it suitable for indoor and outdoor use. It comes with 10 pre-stamped metric knockouts (8x M20, 2x M25) for easy cable entry. The screw-on lid with stainless steel screws ensures a secure seal, and the integrated lid gasket provides additional protection against dust and moisture. This empty junction box does not include terminal blocks, allowing for flexible customization.

Advantages

High-quality thermoplastic material ensures durability and long service life. Halogen-free construction makes it environmentally friendly and safe for use in areas with strict fire safety requirements. The IP54 rating protects against dust and water splashes, while IK07 impact resistance safeguards against mechanical damage. Pre-stamped knockouts simplify cable entry installation, and the stainless steel lid screws resist corrosion. The integrated gasket ensures a tight seal, maintaining the protection class.

Suitable for

• Electrical junction and connection boxes for building installations
• Surface-mounted wiring in industrial, commercial, and residential settings
• Applications requiring halogen-free materials and IP54 protection

Key specifications

• Product Type: Junction Box
• Material: Thermoplastic, halogen-free
• Protection Class: IP54
• Impact Resistance: IK07
• External Dimensions (L x W x H): 235 x 205 x 72 mm
• Number of Cable Entries: 10 (8x M20, 2x M25)
• Lid Fastening: Screw-on lid with stainless steel screws
• Mounting Type: Surface mounting
• Colour: Grey (RAL 7035)
• Rated Insulation Voltage: 400 V
• Glow Wire Test: 750 °C
• Operating Temperature Range: -25 °C to +40 °C
• Terminal Block: Not included (empty box)
• Seal: Integrated lid gasket

Recommendations

For optimal installation, use appropriate cable glands and terminal blocks as needed. Ensure the mounting surface is clean and dry before installation. This junction box is ideal for use in electrical distribution systems where a reliable and protected connection point is required.
