Keystone modul DELOCK 87120 SC single-port plochý adaptér, zelený/biely, 16,5×27,4×21,9 mm

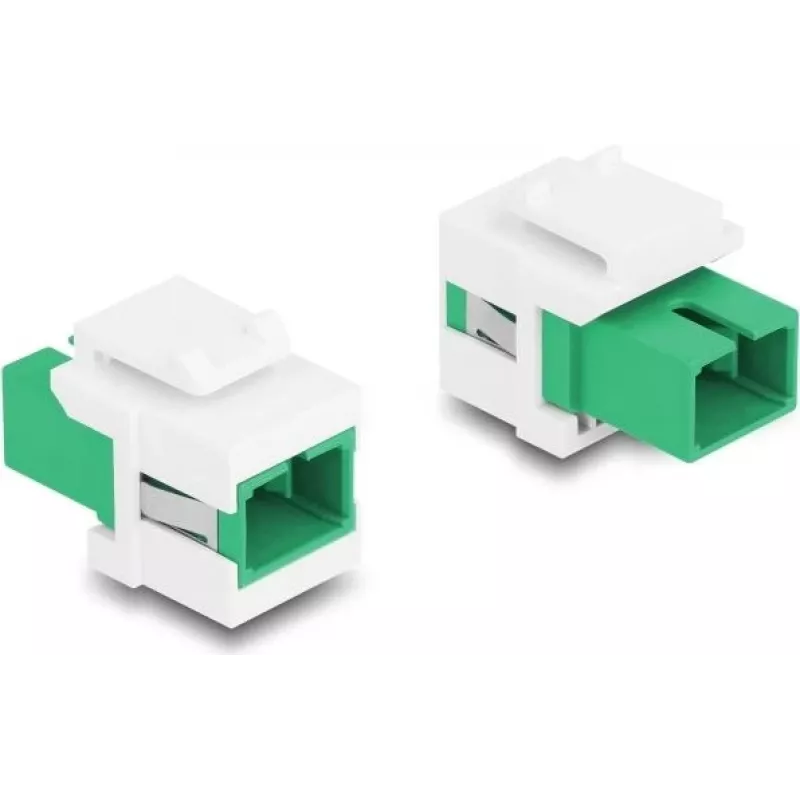

DELOCK 87120 is a flat keystone module with an SC simplex female connector in a green and white housing. The single‑port module measures 16.5 × 27.4 × 21.9 mm and is delivered as one piece in a polybag. It is designed for compact fiber optic panel, face plate or surface-mount box installations where a standardised snap‑in keystone format is required to provide an SC fiber interface for single‑mode networks.

Advantages

The module provides a standard SC simplex female interface in a slim keystone form factor, enabling space-efficient installation in patch panels and wall plates. Its flat design and standard dimensions allow easy snap‑in mounting into keystone cutouts. The green/white housing and included dust covers support clear identification and basic protection for fiber connectors. Low insertion loss (typical < 0.2 dB) ensures minimal signal attenuation when joining single‑mode fiber links.

Suitable for

• Single‑mode fiber patch panels requiring SC simplex ports
• Keystone wall plates and faceplates for fiber outlet points
• Surface‑mount boxes and small enclosures with keystone openings
• Applications where a compact SC interface is needed for fiber extension or re‑routing

Key specifications

• Connector type: SC simplex female
• Intended fiber: single‑mode
• Typical insertion loss: < 0.2 dB
• Housing colour: green/white
• Form factor: flat keystone module
• Dimensions (W × D × H): 16.5 × 27.4 × 21.9 mm
• Quantity: 1 piece
• Includes dust covers for connector protection

How to use

Insert the keystone module into a compatible keystone cutout on a patch panel, wall plate or surface‑mount box until it snaps into place. Align and mate an SC simplex fiber connector to the female interface; ensure dust covers are removed from both ends before connection and replaced when ports are unused. Observe standard single‑mode fiber handling precautions such as avoiding tight bends and protecting connector endfaces from contamination.

Recommendations for use

For reliable performance, clean fiber connector endfaces before mating and store unused ports with the supplied dust covers. Use this module in compatible keystone frames or faceplates designed for flat keystone inserts and avoid excessive mechanical force during installation to preserve the housing and connector alignment.
