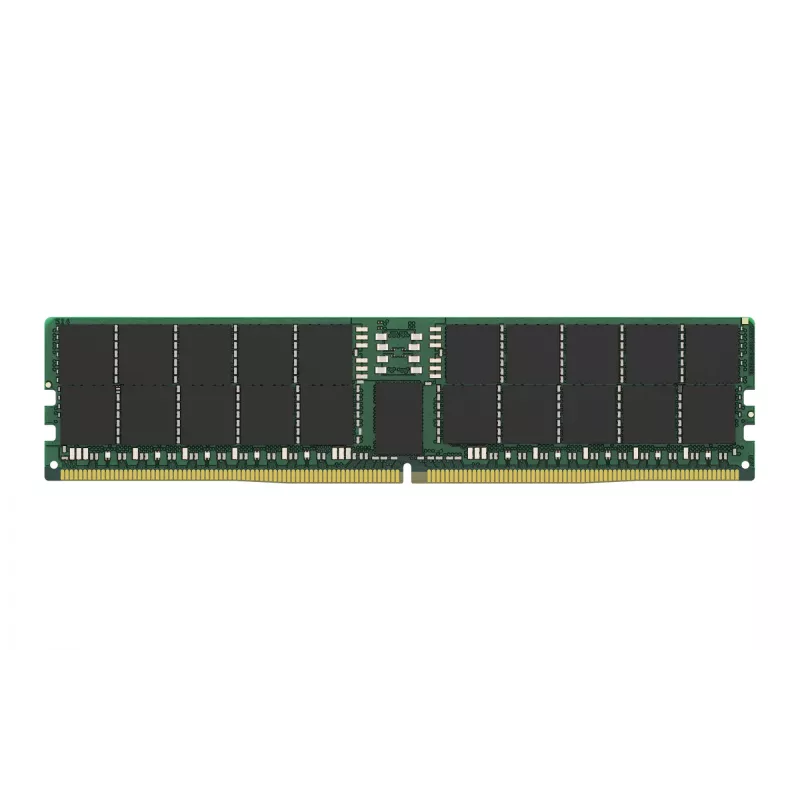

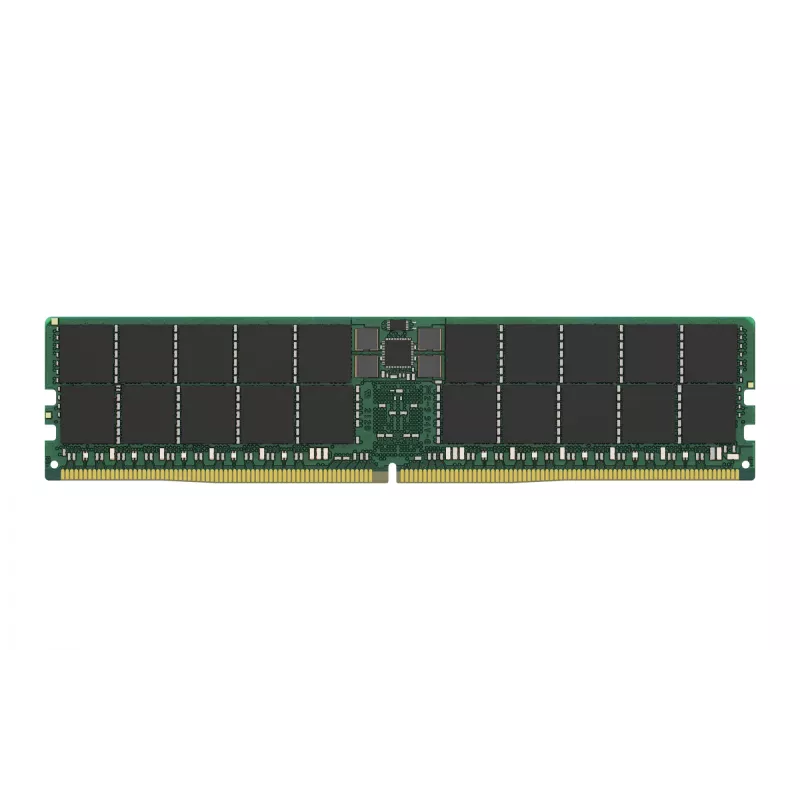

Kingston Technology 96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1,1V, 288-pinový, 24Gbit

The Kingston Technology DDR5 96GB 5600MT/s memory module is an ECC Registered DIMM designed for use in servers and high-end workstations requiring large-capacity, reliable memory. Operating at an effective data rate of 5600MT/s with a CAS latency of 46 and a memory clock speed of 2800 MHz, this 1 x 96GB module uses the 288-pin DIMM form factor and runs at 1.1V to balance performance with energy efficiency. The module's ECC registration helps detect and correct memory errors, making it suitable for environments where data integrity and uptime are important.

Advantages

This Kingston DDR5 memory module offers a high single-module capacity of 96 GB that reduces the need for multiple DIMMs while supporting large memory footprints. The DDR5 architecture and 5600MT/s effective data rate deliver improved bandwidth compared with previous generation modules. ECC Registered functionality provides enhanced reliability through error detection and correction, and the 1.1V operating voltage contributes to lower power consumption under load.

Suitable for

• Enterprise servers and database systems that require large, stable memory pools
• Virtualization hosts running multiple virtual machines or containers
• High-performance workstations used for scientific computing, simulations, or large-scale data analysis
• Memory-dense server configurations where fewer modules simplify layout and cooling

Key specifications

• Memory capacity: 96 GB (single module, 1 x 96GB)
• Memory type: DDR5 ECC Registered DIMM
• Effective data rate: 5600 MT/s
• Memory clock speed: 2800 MHz
• CAS latency: 46
• Form factor: 288-pin DIMM
• Operating voltage: 1.1 V

How to use

Install the module into a compatible 288-pin DDR5 DIMM slot on a motherboard or server platform that supports DDR5 ECC Registered memory and the required capacity per module. Power down the system and ground yourself before handling the module to prevent electrostatic damage. Align the module with the slot keyed notch, press firmly and evenly until the retention clips engage. After installation, verify BIOS/UEFI recognizes the total installed memory and confirm ECC functionality is enabled where applicable. Follow the server or motherboard manufacturer's guidelines for supported configurations and slot population rules.

Recommendations

Use this ECC Registered DDR5 module in systems explicitly supporting registered ECC DDR5 memory and verify firmware and BIOS compatibility. For optimal reliability, populate memory channels according to the platform's recommended layout, apply proper cooling in dense configurations, and update system firmware to the latest stable release before deploying in production environments.
