Klauke 8SG6 rúrkový káblový koncovka 95 mm² M6 pre rozvádzače

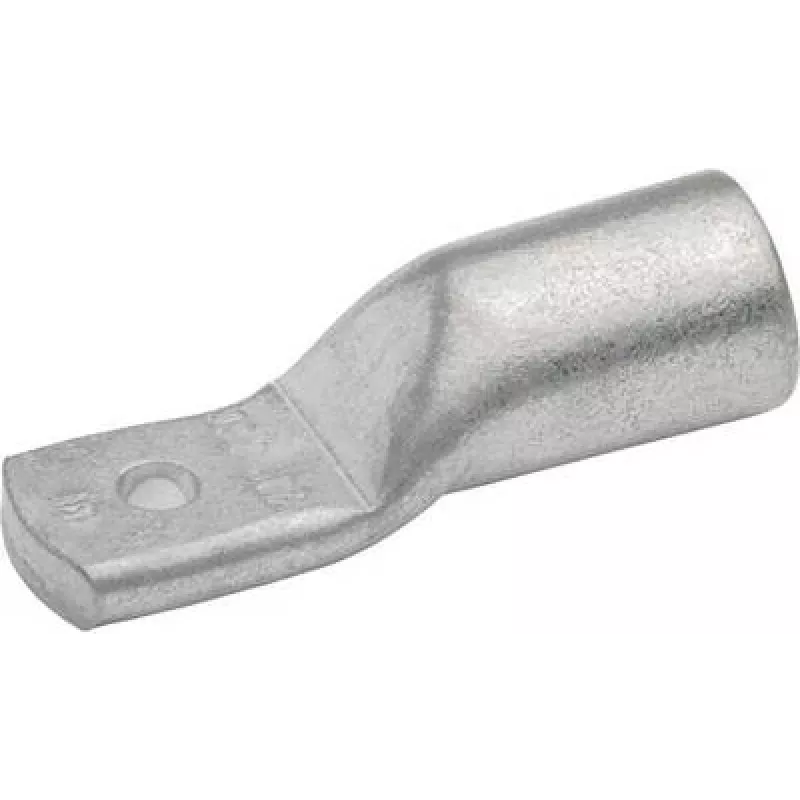

Electrical installers and switchgear assemblers use the Klauke 8SG6 tubular cable lug to terminate 95 mm² copper conductors with an M6 bolt. The lug is crimped onto the conductor, creating a durable, low-resistance connection in industrial power distribution and control cabinets.

Key specifications

• Conductor cross-section: 95 mm²
• Bolt hole: M6 (6.4 mm diameter)
• Material: Electrolytic copper, tin-plated
• Overall length: 55 mm
• Palm width: 22 mm
• Palm thickness: 3.5 mm
• Barrel inner diameter: 13.5 mm
• Barrel outer diameter: 17.5 mm
• Inspection hole: Yes
• Standard: DIN 46235

Why choose it

Tin plating provides corrosion resistance and reliable contact. The inspection hole allows visual confirmation of full conductor insertion before crimping.

Ideal use cases

• Switchgear and control panel wiring
• Industrial power distribution
• Motor and transformer connections

Good to know

Use with a suitable crimping tool for 95 mm² copper lugs. The lug is halogen-free and suitable for voltages up to 1000 V.
