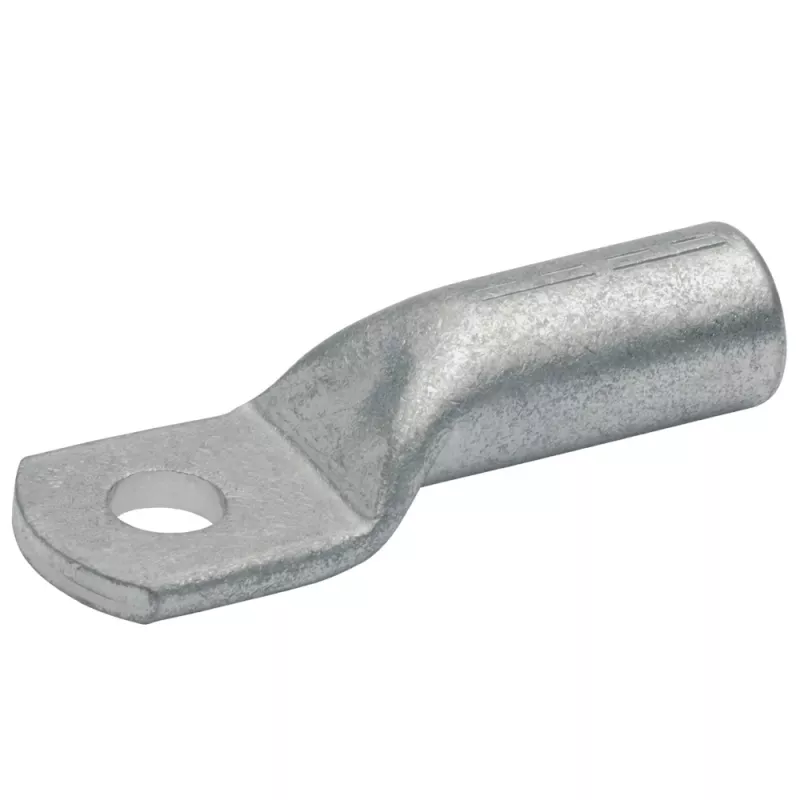

Klauke KLAU lisovacia káblová koncovka 101R6 6qmm M6

The Klauke 101R6 is a high-quality compression cable lug designed for reliable and permanent connections of copper conductors. Manufactured from electrolytic copper (E-Cu) with a galvanic tin plating, it offers excellent corrosion resistance and conductivity. This lug is part of the R-Series and complies with DIN 46235 standards, ensuring professional-grade performance.

Advantages

Electrolytic copper material ensures optimal electrical conductivity. Tin-plated surface provides protection against oxidation and corrosion. Inspection hole allows for visual verification of proper conductor insertion. Straight design (180°) facilitates easy installation in tight spaces. Suitable for operating temperatures up to 120 °C and voltages up to 1000 V.

Suitable for

• Copper conductors with cross-section 6 mm²
• Electrical installations requiring secure crimp connections
• Industrial and commercial wiring applications
• Use with M6 bolt (hole diameter 6.4 mm)

Key specifications

• Cable cross-section: 6 mm²
• Bolt hole diameter: M6 (6.4 mm)
• Material: Electrolytic copper, tinned
• Lug type: Standard compression cable lug
• Connection method: Crimp
• Design: With inspection hole
• Angle: Straight (180°)
• Standard: DIN 46235
• Total length: 29 mm
• Palm width: 12.5 mm
• Barrel outer diameter: 5.5 mm
• Temperature resistance: Up to 120 °C
• Voltage rating: Up to 1000 V
• RoHS compliant: Yes

Recommendations

For optimal performance, use with appropriate Klauke crimping tools and dies. Ensure conductor is fully inserted into the barrel before crimping. Verify connection integrity through the inspection hole.
