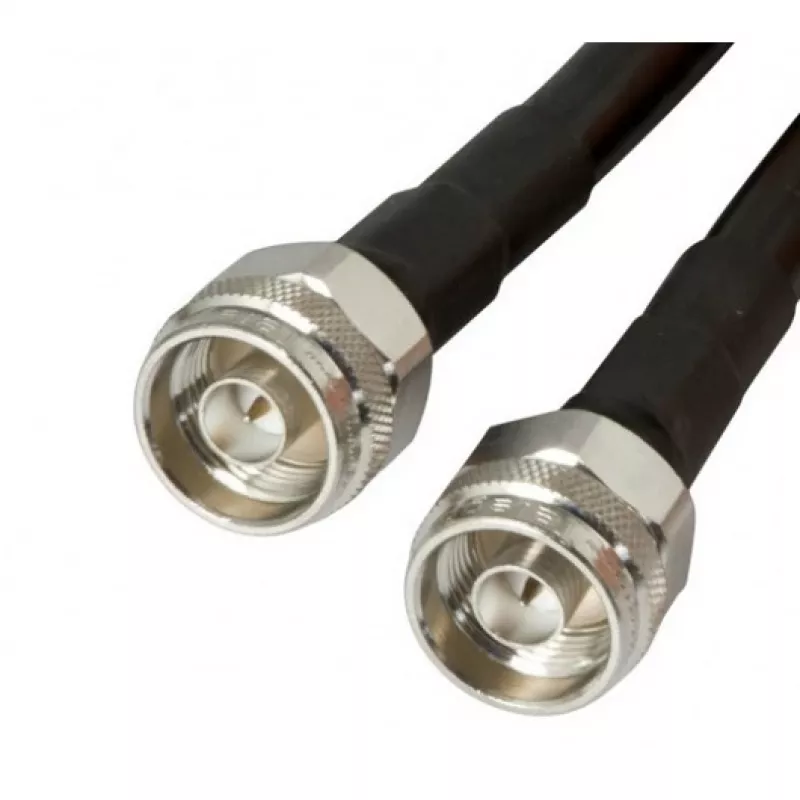

Koaxiálny kábel ALLNET ALL-CAB-NM-NM2-RG8 2m N-Typ čierny

Coaxial cable ALLNET ALL-CAB-NM-NM2-RG8 is a 2 m RF cable with N-type male connectors on both ends, designed for reliable RF signal transmission. The cable uses a solid inner conductor with a diameter of 2.75 mm, a dielectric of 7.4 mm, an 8.1 mm shield and an overall jacket diameter of 10.3 mm. The assembly combines Telegärtner connectors and Belden RG400-style cable construction for stable connections in telecom and broadcast environments.

Advantages

The cable offers durable N-type male/male connectors and a robust RG400-style coaxial construction for good shielding and low loss. Its 2 m length provides flexibility for equipment placement while maintaining signal integrity. The black jacket gives a discreet professional appearance and the combination of solid centre conductor and flexible screen supports consistent performance.

Suitable for

• Telecommunications links and antenna connections
• Broadcast and RF test setups
• Connecting radio equipment with N-type interfaces
• Laboratory and measurement environments requiring stable RF cabling

Key specifications

• Connector type: N-type male / N-type male
• Length: 2 m
• Inner conductor diameter: 2.75 mm (solid)
• Dielectric diameter: 7.4 mm
• Shield diameter: 8.1 mm
• Outer jacket diameter: 10.3 mm
• Cable type: RG400-style coaxial (Belden), Telegärtner connectors
• Color: Black
• Brand: ALLNET, MPN: ALL-CAB-NM-NM2-RG8, EAN: 4038816937490

How to use

Connect each N-type male connector to the corresponding N-type female port, ensuring threads are engaged and hand-tightened. For best RF performance, avoid sharp bends and maintain a minimum bend radius suitable for a 10.3 mm jacket. Route the cable to minimize exposure to mechanical strain and secure it with appropriate clamps or ties, avoiding crushing the jacket. Verify connections with the equipment powered off, then power up and check signal levels.

Recommendations

Use this cable for short runs where low-loss, shielded N-type connections are required. Store and install away from sources of strong electromagnetic interference and avoid repeated flexing near the connector ends to prolong service life.
