Konektor 3M 37304-2206-000 FL, flexibilný káblový konektor pre vodiče 0,33–0,52 mm²

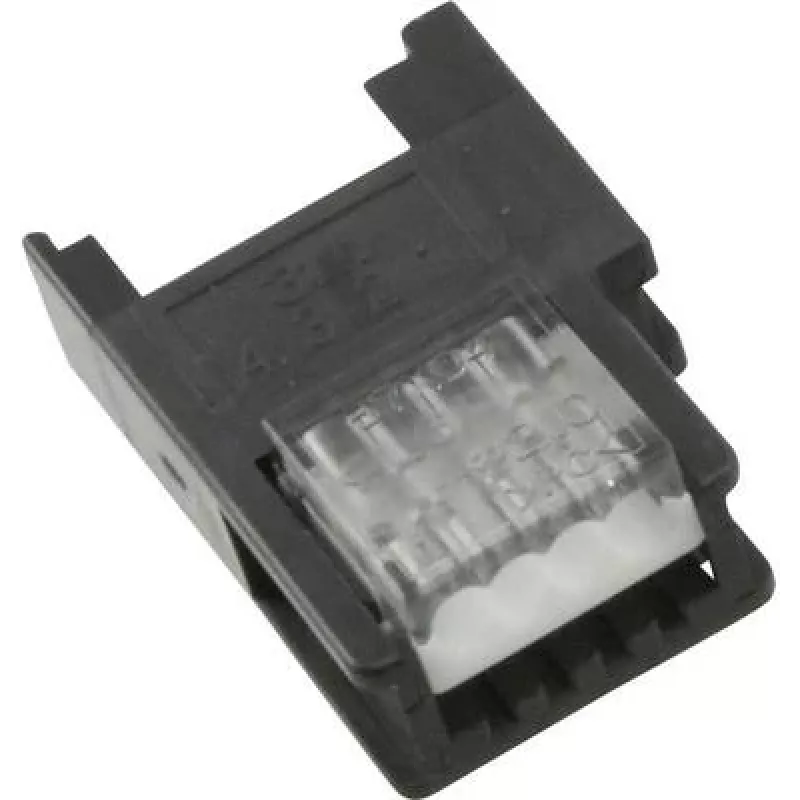

3M 37304-2206-000 FL is a compact four-pole connector for flexible conductors with cross-sections from 0.33 to 0.52 mm². The part is designed to provide reliable electrical contact and mechanical retention for small-gauge flexible cables used in control panels, lighting, signal circuits and repair tasks. Its compact design simplifies wiring and helps maintain consistent connections while reducing installation time.

Advantages

The connector accepts flexible conductors in the specified range and offers secure mechanical retention and reliable electrical contact without additional tools. Its four-pole configuration supports multiple conductor connections in a single compact unit, and the grey Miniclamp housing ensures easy identification and compatibility with standard panel and enclosure mounting arrangements.

Suitable for

• Control panels and terminal blocks
• Lighting circuits and fixtures
• Signal and low-current wiring
• Repair and maintenance of small-gauge flexible cables

Key specifications

• Manufacturer: 3M
• MPN: 37304-2206-000 FL
• EAN: 2050000272745
• Conductor cross-section (flexible): 0.33–0.52 mm²
• Conductor cross-section (solid): 0.3–0.56 mm²
• Number of poles: 4
• Housing: Miniclamp, grey

How to use

Strip the flexible conductor to the length recommended by the connector manufacturer, insert the conductor into the appropriate pole until it seats, and ensure mechanical retention is achieved according to the connector's design (push-in or clamp mechanism). Repeat for each conductor and verify continuity and mechanical stability before finalizing the installation.

Recommendations

Use within the specified conductor cross-section ranges and follow applicable wiring standards and safety practices. Verify compatibility with panel or enclosure mounting and test connections after installation. Do not exceed rated current or environmental limitations specified by 3M for this connector.
