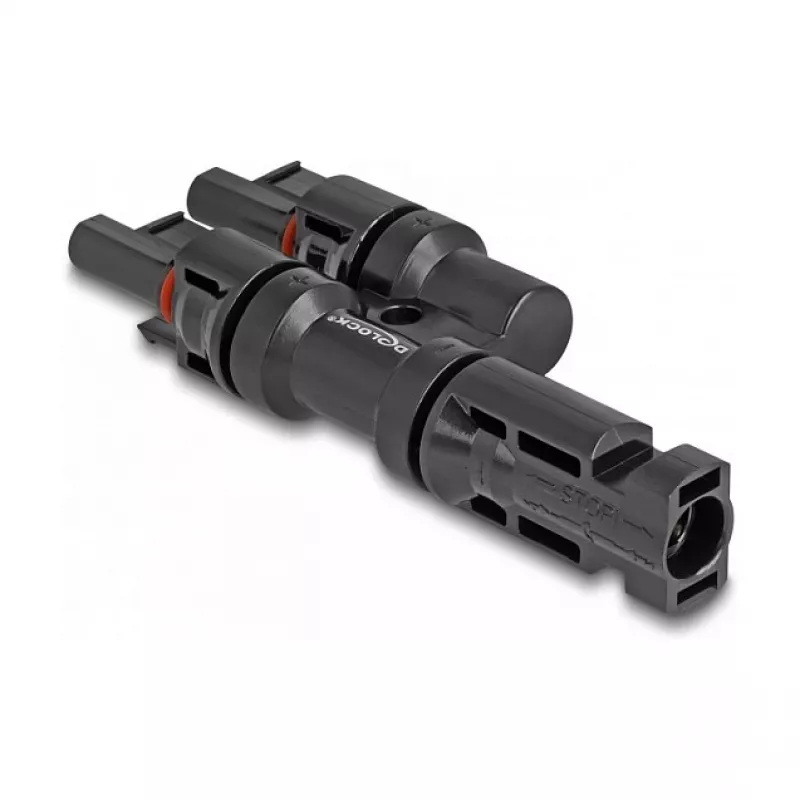

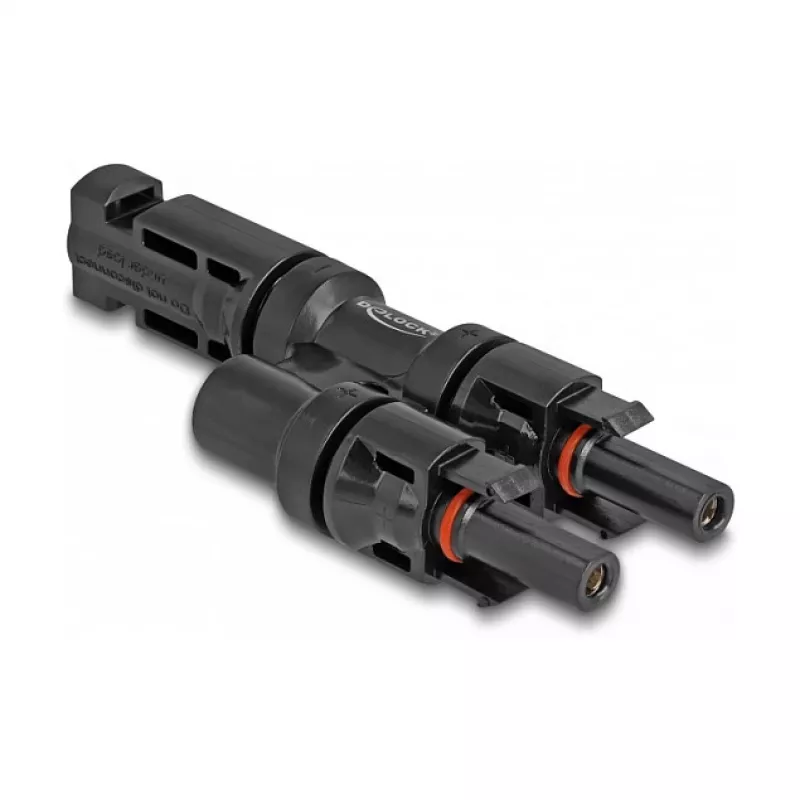

Konektor solárneho modulu DeLOCK DL4 1 konektor samec na 2 konektor samica čierny

The DeLOCK DL4 solar connector adapts a single male input to two female outputs, allowing power from a photovoltaic panel to be distributed to two downstream cables or devices. With a compact housing measuring 39 mm wide, 104 mm deep and 18 mm high, the connector is intended for outdoor solar installations and is manufactured in China.

Advantages

The DL4 connector features a snap-in locking mechanism that prevents accidental disconnection while enabling tool-assisted release. The housing is rated IP67 for dust and waterproof protection, providing reliable performance in outdoor environments. The male-to-2-female configuration simplifies branching of PV strings without additional tools or complex wiring.

Suitable for

• Splitting a single solar panel output to two separate cables
• Connecting modules in small photovoltaic arrays
• Outdoor solar accessory installations that require IP67 protection

Key specifications

• Brand: DELOCK
• Model / MPN: 60022
• EAN: 4043619600229
• Type: DL4 solar connector, 1 male to 2 female
• Dimensions (W x D x H): 39 x 104 x 18 mm
• Protection class: IP67 (dust and waterproof)
• Manufactured in: China

How to use

Align the male and female DL4 contacts and push until the snap-in locking mechanism engages. To disconnect, use the appropriate release tool to press the locking latch and withdraw the connector. Ensure all contacts are clean and cables are properly prepared and secured according to the PV system requirements before energizing.

Recommendations

Install and maintain the connector in accordance with local electrical codes and the photovoltaic system manufacturer's instructions; avoid exposure to mechanical strain on the cable entries and inspect seals periodically to maintain IP67 protection.
