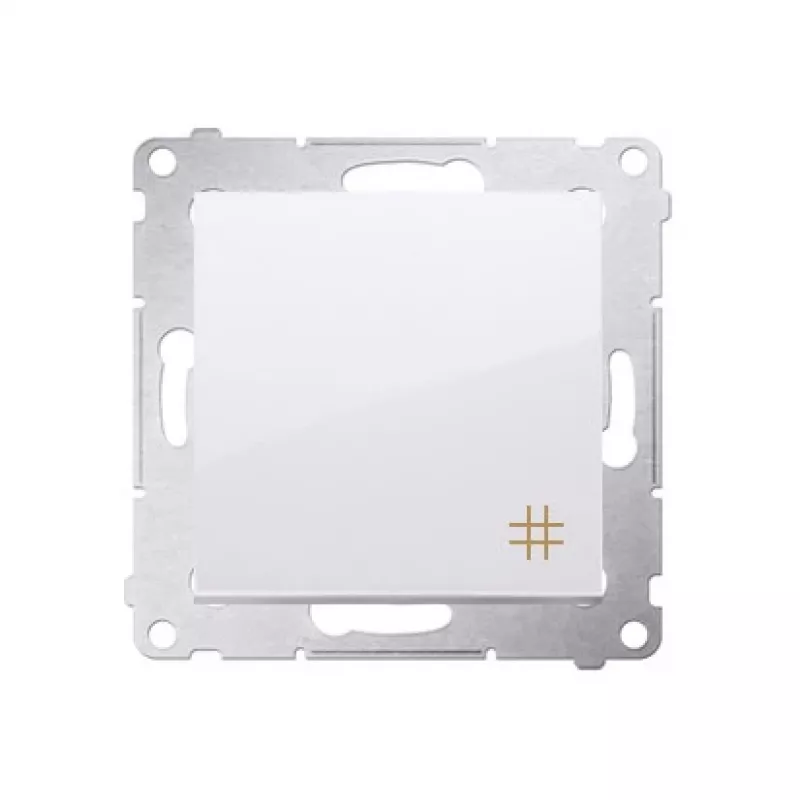

KONTAK-SIMON Simon 54 Premium biely krížový prepínač s pružinovými svorkami 10AX 250V

The Simon 54 Premium cross switch enables multi-point lighting control from three or more locations, combining a sleek white finish with reliable spring clamp terminals for fast, screwless installation.

Advantages

Spring clamp terminals reduce wiring time and ensure secure, maintenance-free connections. The glossy white thermoplastic faceplate resists scratches and yellowing, while the rocker mechanism provides smooth, durable switching. Rated at 10AX, it handles both resistive and inductive loads, including fluorescent and LED lighting.

Suitable for

• Staircases and long corridors requiring control from three or more points
• Residential and commercial flush-mounting installations
• Electricians seeking quick, tool-free wiring with spring clamps
• Projects demanding a clean, modern white aesthetic

Key specifications

• Type: Cross (intermediate) switch, 4-way
• Series: Simon 54 Premium
• Colour: White, glossy finish
• Rating: 10AX, 250V AC
• Terminals: Spring clamps (screwless), up to 2 x 2.5 mm²
• Mounting: Flush, standard box
• Material: High-quality thermoplastic
• IP rating: IP20
• Operating temperature: -5°C to +40°C
• Humidity: 30-90% RH non-condensing
• Certifications: CE, RoHS

Recommendations

For reliable multi-way lighting control with minimal installation effort, pair this cross switch with matching Simon 54 rocker switches and cover plates. Ensure the flush-mounting box is at least 35 mm deep for comfortable wiring space.
