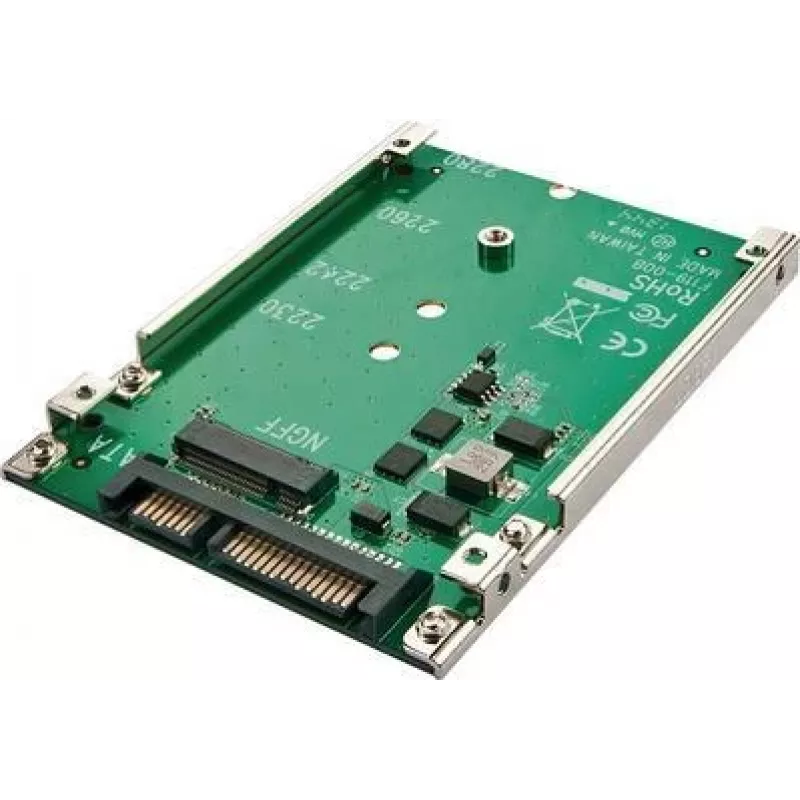

Konvertor rozhrania Renkforce M.2 NGFF SATA 1192249 — adaptér M.2 NGFF na SATA

The Renkforce Interface Converter M.2 NGFF SATA is an adapter designed to connect M.2 (NGFF) SATA SSD modules to standard SATA interfaces. It enables installation of an M.2 SATA drive into systems, enclosures or docking stations that accept 2.5" SATA connections, providing direct data access and compatibility for cloning, backup or storage expansion. The adapter preserves the electrical SATA signalling while offering a compact board-level solution for integrating M.2 SATA modules into existing SATA-based setups.

Advantages

The adapter provides a simple and passive conversion from M.2 (NGFF) SATA to standard SATA without requiring additional drivers. Its compact, low-profile design allows installation in tight spaces or inside enclosures that support 2.5" SATA drives. By converting the connector and preserving SATA protocol compatibility, the product supports direct cloning, imaging and data recovery operations with common SATA tools. No external power conversion is necessary beyond the standard SATA power connection.

Suitable for

• Upgrading desktop or laptop storage using an M.2 SATA SSD in systems with SATA bays
• Data migration and cloning from M.2 SATA modules to SATA drives or vice versa
• Testing and troubleshooting M.2 SATA SSDs in SATA-based enclosures or docking stations
• Using M.2 SATA modules for backup, additional storage or temporary data access

Key specifications

• Interface conversion: M.2 (NGFF) SATA to standard SATA data and power connections
• Supported drive type: M.2 modules using SATA signalling (not NVMe/PCIe)
• Form factor: compact board-level adapter suitable for 2.5" SATA bays or enclosures
• Power: uses standard SATA power connector (no external adapter required)
• Data transfer: operates at SATA protocol speeds supported by host and drive

How to use

Insert the M.2 SATA module into the adapter’s M.2 slot, ensuring correct orientation and a secure mechanical fit. Mount or place the adapter inside the target enclosure or system so that the SATA data and power connectors align with the host cables. Connect a SATA data cable to the adapter and to the motherboard or SATA controller, and attach a SATA power cable from the power supply. Power on the system; the connected M.2 SATA drive should be recognized by the host operating system and appear as a standard SATA drive for cloning, imaging or normal use.

Recommendations

Use this adapter only with M.2 modules that employ SATA signalling (not with NVMe/PCIe M.2 drives). Ensure proper handling to avoid electrostatic discharge and confirm correct orientation when inserting the module. Verify that your host system supports the intended SATA speed and has available SATA power and data connections before installation.
