Kryt pre ALLNET ALLTCover10WSv1 tablet — strieborný, 309×228 mm, 280 g

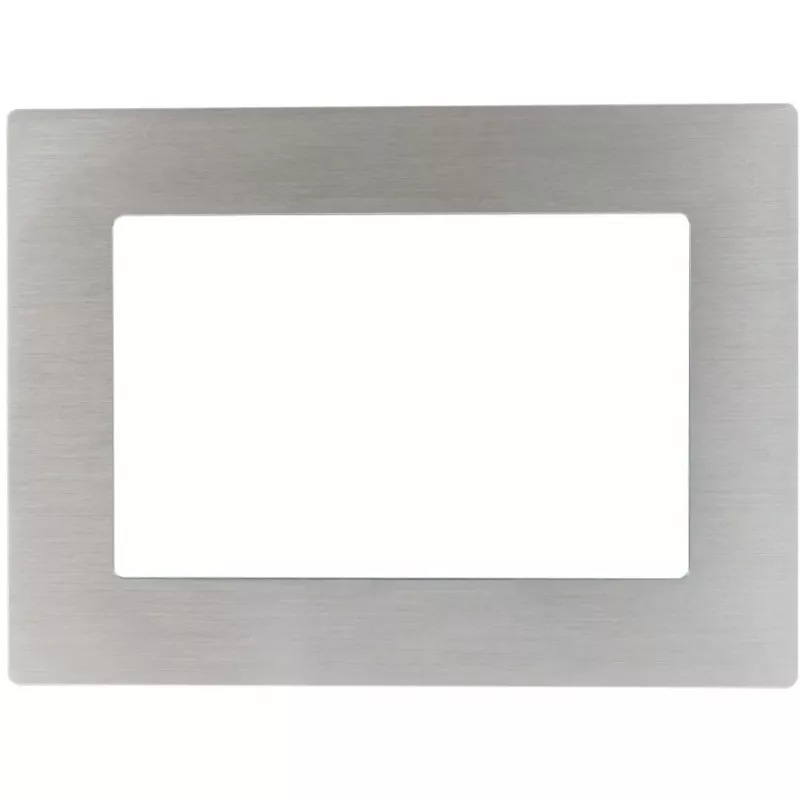

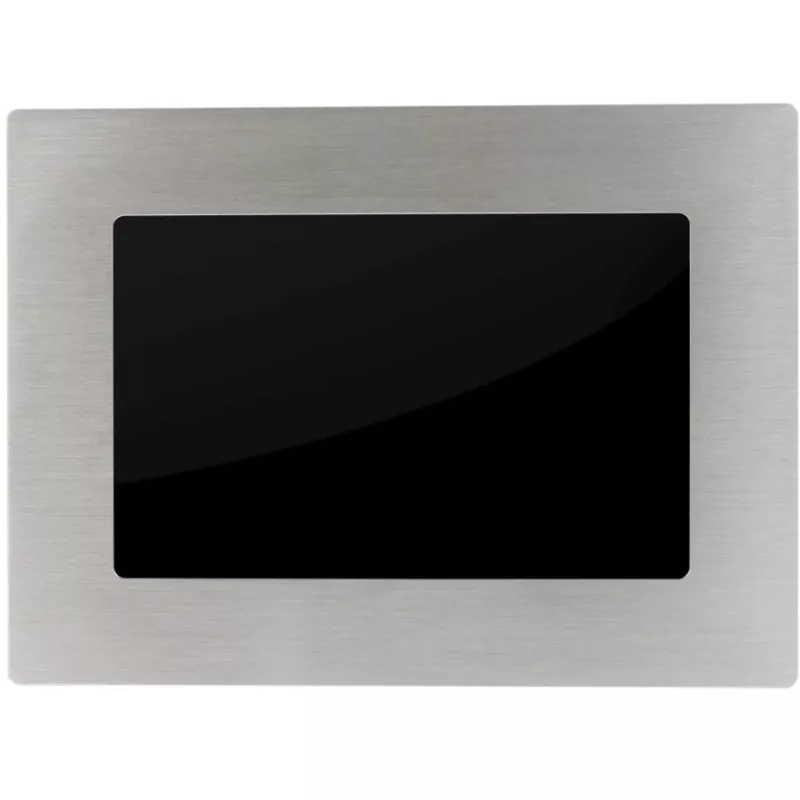

Replacement bezel for the ALLNET ALLTCover10WSv1 tablet in silver finish. Designed for installation in an enclosure or mounting frame, this bezel measures 309 × 228 mm and weighs 280 g. It provides exterior trim and edge protection for a 10" ALLNET touch display, fits corresponding ALLNET tablet housings and is intended for repair, retrofit or new installation where a flush, neat finish is required.

Advantages

The bezel is made from redesigned high-quality aluminum panels that sit flush with the mounting frame to achieve an almost flush wall closure. Magnets are recessed and screwable so they do not protrude from the bezel surface. The reduced distance between bezel and touchscreen improves access to peripheral touchscreen areas while maintaining a protective trim around the display.

Suitable for

• Repair or replacement of damaged or worn tablet front trim
• Retrofit installations of ALLNET 10" touch displays into enclosures or mounting frames
• New builds where a flush wall-mounted finish is required
• Integrations that require compatibility with ALLNET tablet housings

Key specifications

• Material: aluminum panels (redesigned high-quality)
• Color: silver

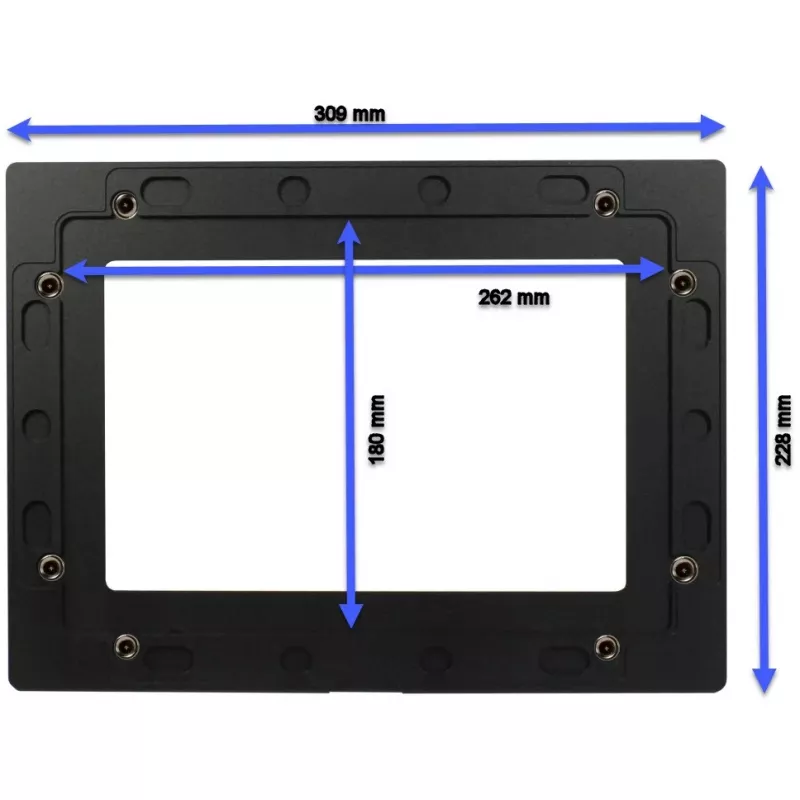

• Outer dimensions: 309 × 228 mm
• Compatible display size: 25.4 cm (10") touch display
• Weight: 280 g

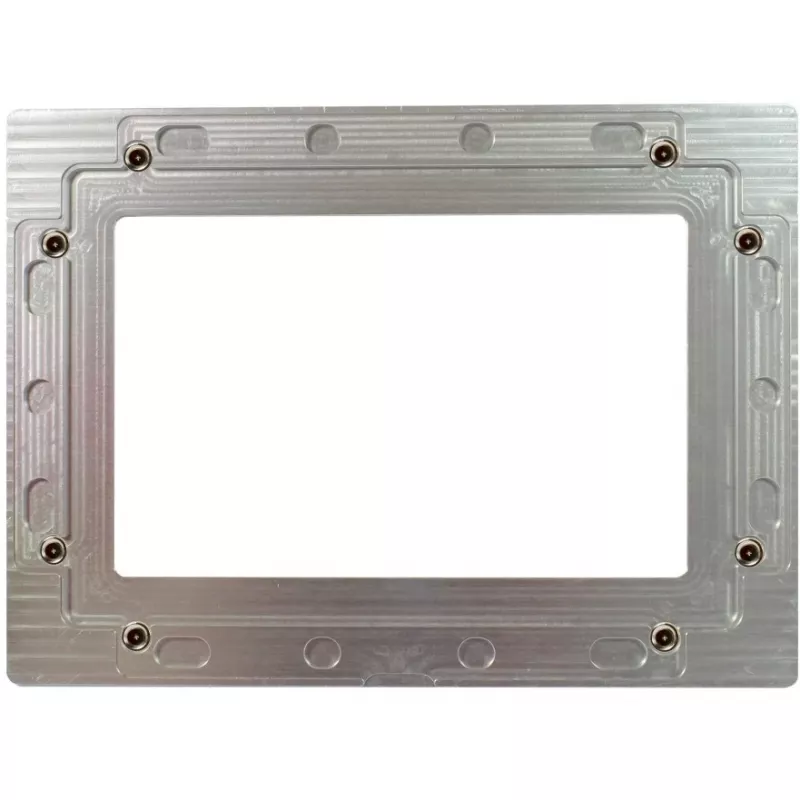

• Mounting: designed for enclosure or mounting frame installation; magnets recessed and screwable
• Finish: flush with mounting frame for minimal bezel-to-screen distance
• Quantity: single bezel

How to use

Position the bezel over the ALLNET 10" touch display within the compatible housing or mounting frame so that the panel sits flush with the frame. Secure the bezel using the designed mounting points and recesses for the screwable magnets; ensure magnets are correctly seated and tightened so they remain recessed and do not protrude. Verify alignment and that the bezel-to-screen gap is minimal to allow full access to touchscreen edges while avoiding contact with the display surface.

Recommendations

Use the bezel together with the appropriate ALLNET mounting frame (optional) and follow the mounting frame instructions. Handle the aluminum panels with care to avoid scratches during installation and ensure magnets are tightened to prevent movement. For retrofit or repair, confirm compatibility with the specific ALLNET tablet housing prior to installation.
