KVM extender vysielač Dexlan 050009

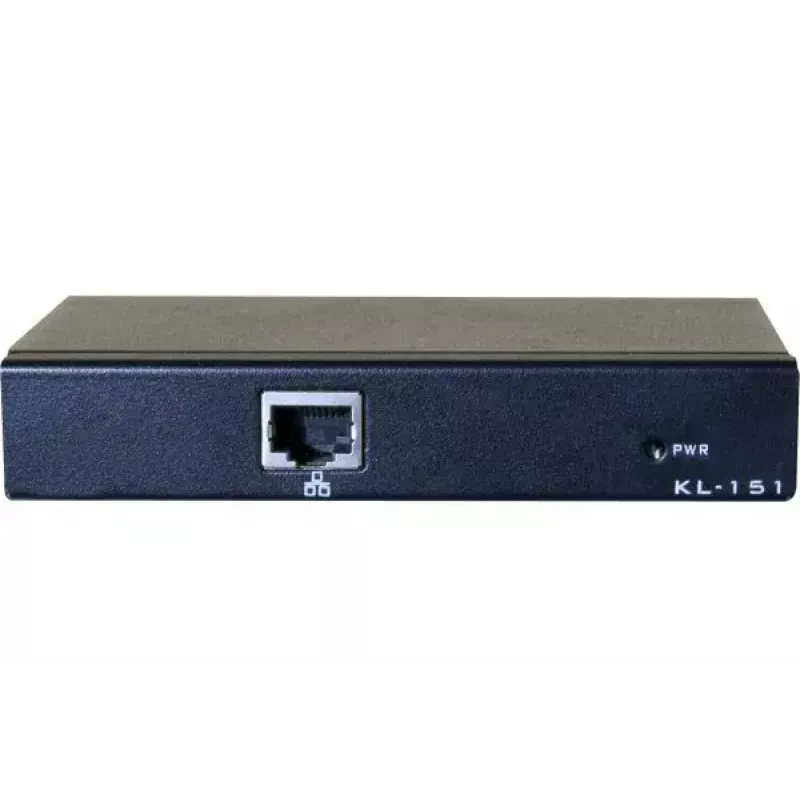

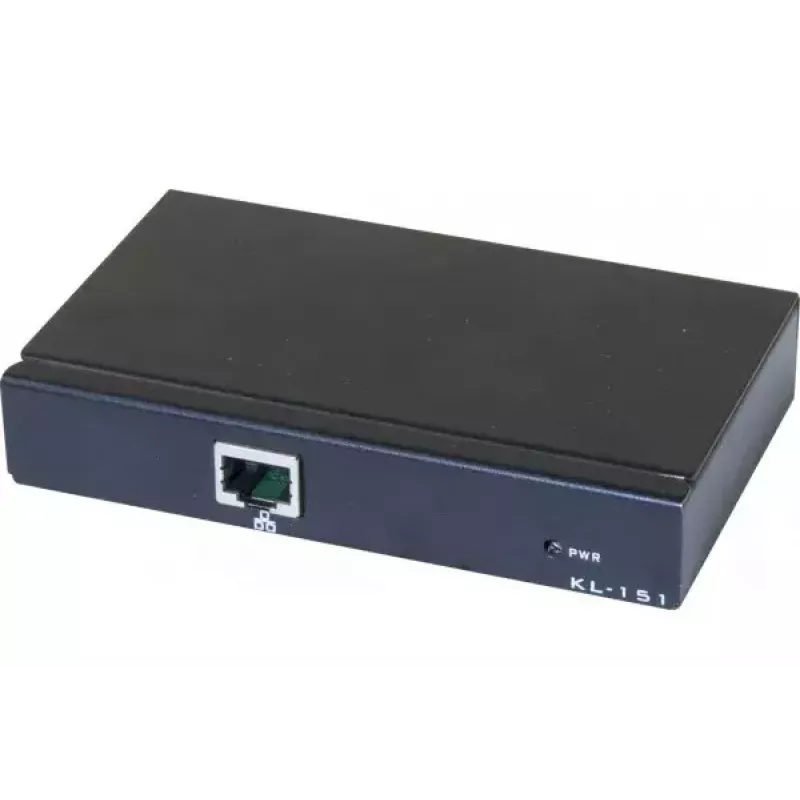

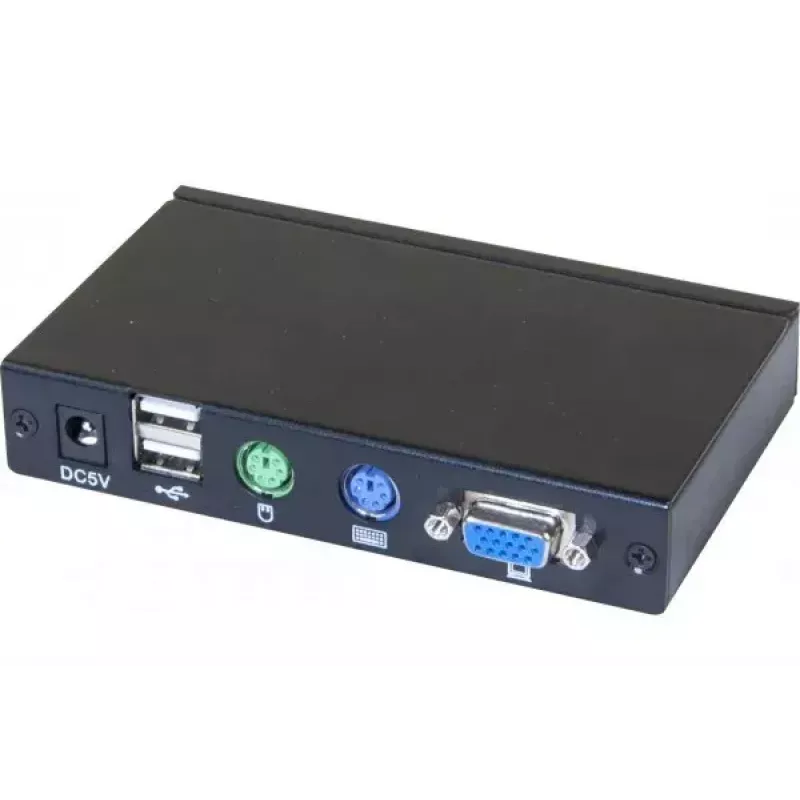

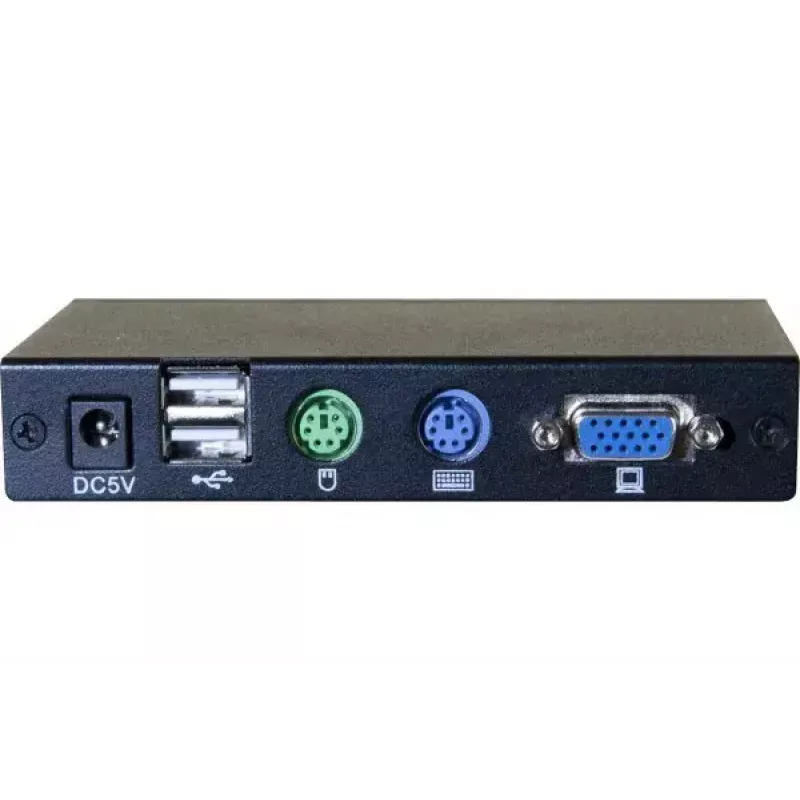

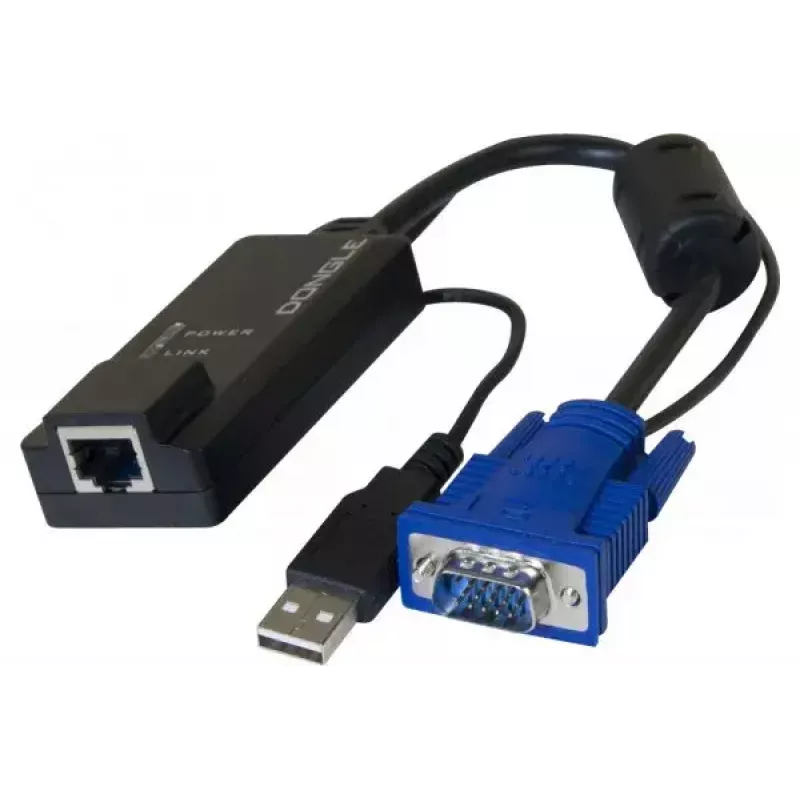

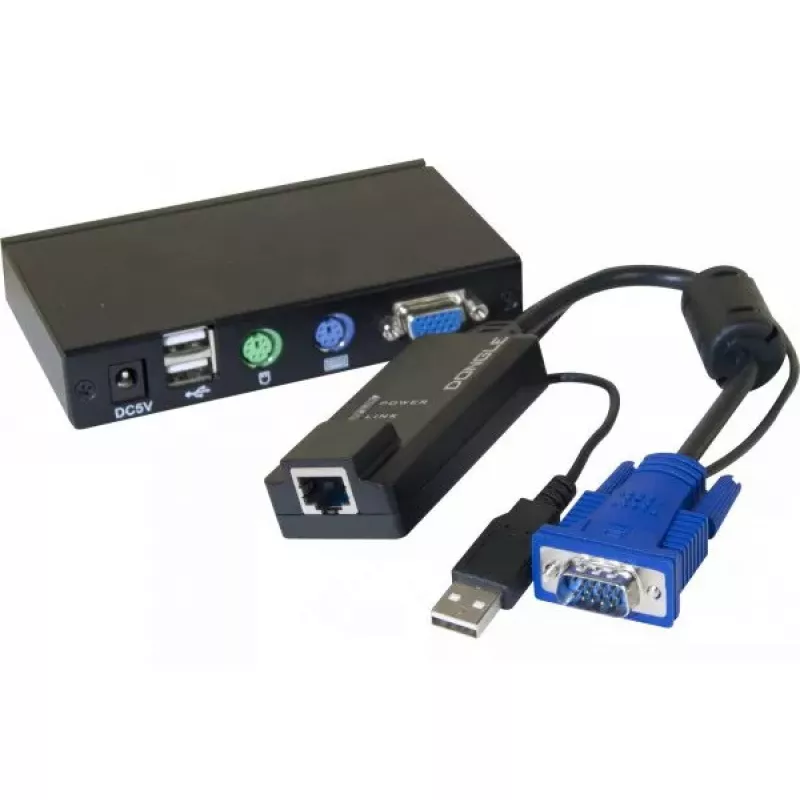

The DEXLAN 050009 kit includes a transmitter dongle and a receiver unit connected by a single RJ45 cable. It extends the connection between a VGA-USB console (keyboard/monitor/mouse) and a computer up to 100 metres using one cable, providing a simple and economical extension solution.

Advantages

The kit supports a single-cable extension up to 100 metres, simplifying installation and reducing cabling. The receiver integrates a USB-to-PS/2 converter, allowing connection of a PS/2 MiniDin6 keyboard or mouse without additional adapters. The compact transmitter and receiver are designed for easy placement near the console and the computer.

Key specifications

How to use

Connect the transmitter dongle to the VGA-USB console (keyboard, monitor, mouse). Use an RJ45 cable to link the transmitter and receiver up to 100 metres. At the computer end, connect the receiver to the PC via the appropriate VGA and USB ports; if a PS/2 keyboard or mouse is used, connect it to the receiver's PS/2 MiniDin6 port which is handled by the integrated USB–PS/2 converter.

Recommendations

For reliable operation, use a good-quality shielded or unshielded twisted-pair RJ45 cable of appropriate category (Cat5e or higher) and avoid running the cable near strong electromagnetic sources. Verify connector pinouts and secure connections before powering the systems.
