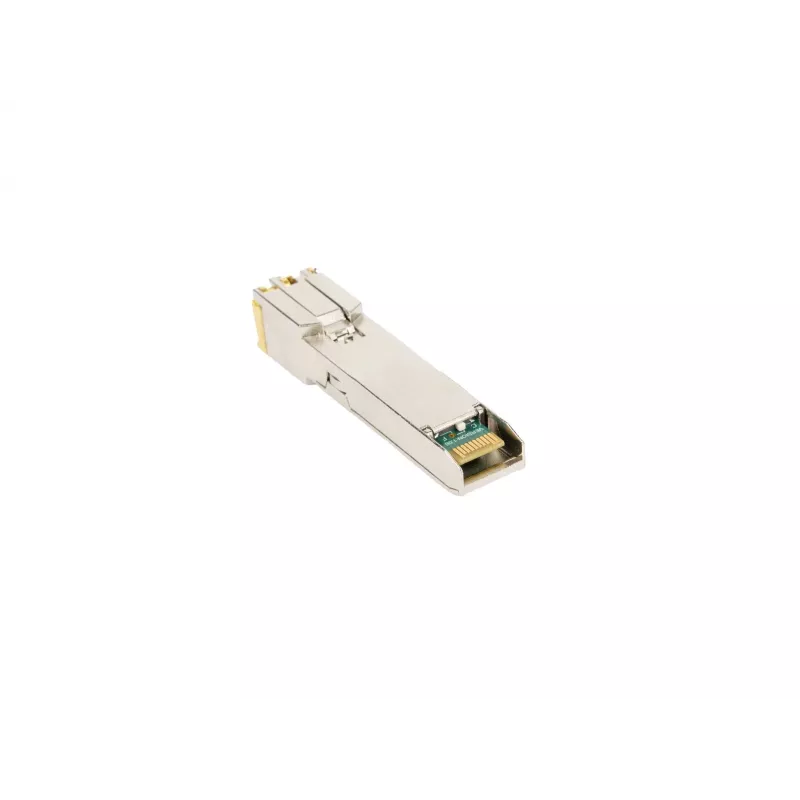

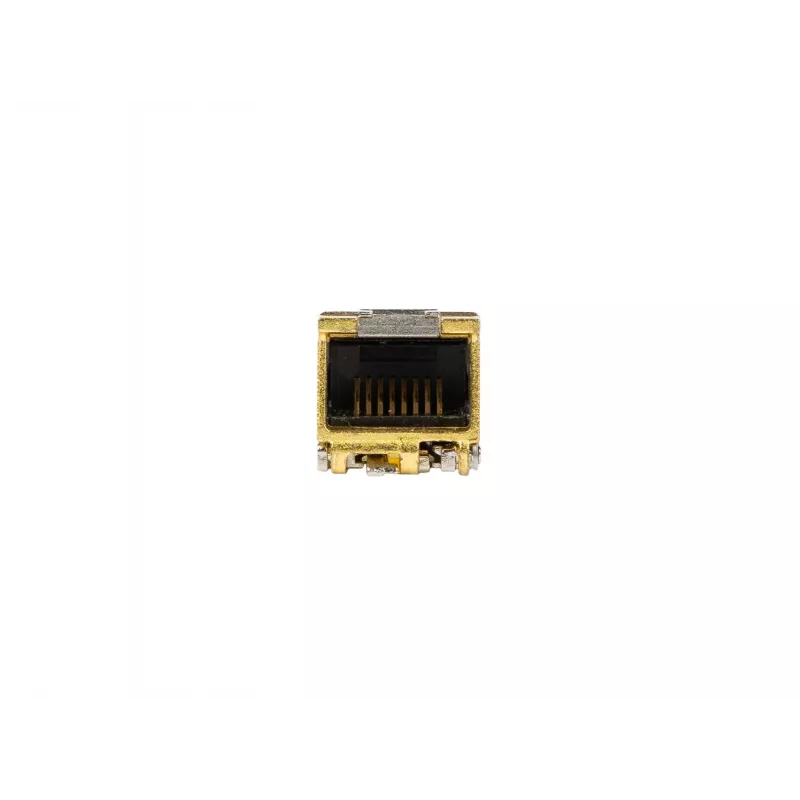

LANBERG SFP1-ETH-RJ45-1000 Gigabit Ethernet SFP medený RJ45 transceiver modul, 1000BASE-T, 100 m

Many modern switches and routers come with SFP slots that only accept fiber modules, leaving copper-based networks without a simple upgrade path. The LANBERG SFP1-ETH-RJ45-1000 solves this by converting an SFP port into a standard Gigabit Ethernet RJ45 interface, allowing you to connect existing Cat 5e or Cat 6 copper cabling directly to SFP-enabled equipment.

Who is it for

Network administrators and IT professionals who need to integrate copper Ethernet segments into fiber-based infrastructure or extend networks over existing twisted-pair cabling without replacing switches or media converters.

Main features

• Converts SFP slot to Gigabit Ethernet RJ45 copper port
• Supports 1000BASE-T standard with data rate up to 1 Gbps
• Hot-swappable for easy installation and replacement
• Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring
• Zinc alloy housing for durability and heat dissipation
• Low power consumption under 1.0 W
• Operates over Cat 5e or Cat 6 UTP/STP cable up to 100 meters

Specifications

• Module Type: SFP (Small Form-Factor Pluggable)
• Connector Type: RJ45
• Data Rate: 1 Gbps
• Media Type: Copper
• Ethernet Standard: 1000BASE-T
• Cable Type: Cat. 5e / Cat. 6 UTP/STP or higher
• Max Cable Distance: 100 meters
• Standard Compliance: MSA (Multi-Source Agreement)
• Hot-Swappable: Yes
• DDM/DOM Support: Yes
• Power Consumption: < 1.0 W
• Operating Voltage: 3.3 V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Housing Material: Zinc Alloy
• Application: Gigabit Ethernet over copper
• Compatibility: Compatible with most SFP-enabled switches, routers, and network cards

Tips

Ensure your SFP port supports copper modules and that your switch firmware is up to date. For best performance, use Cat 6 cabling for runs approaching 100 meters.
