LANBERG Switch Dsp1-1008 8x 1gb/s Unmanaged Gigabit Ethernet Desktop 5v

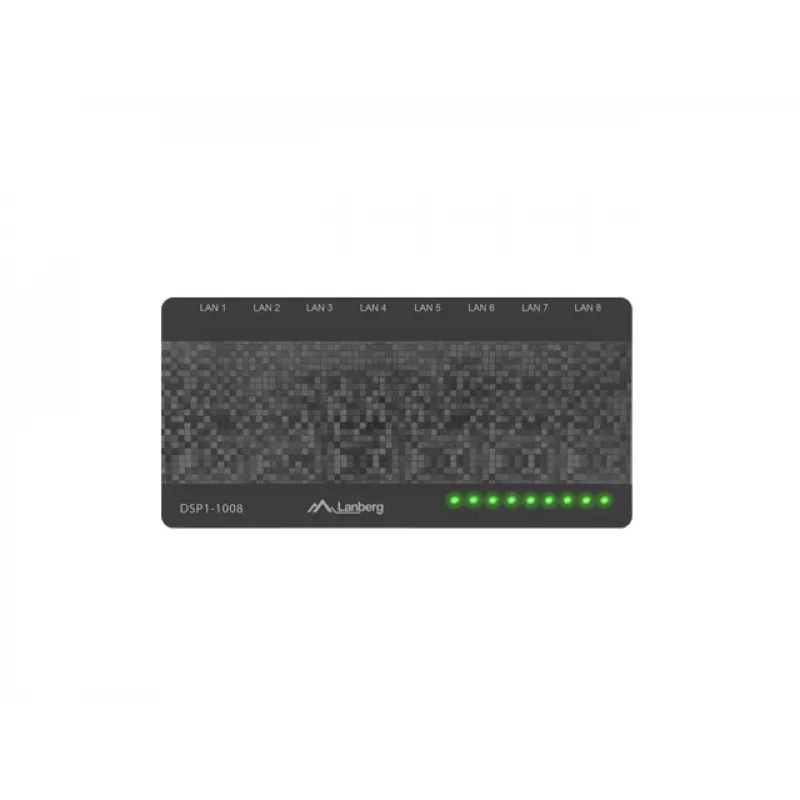

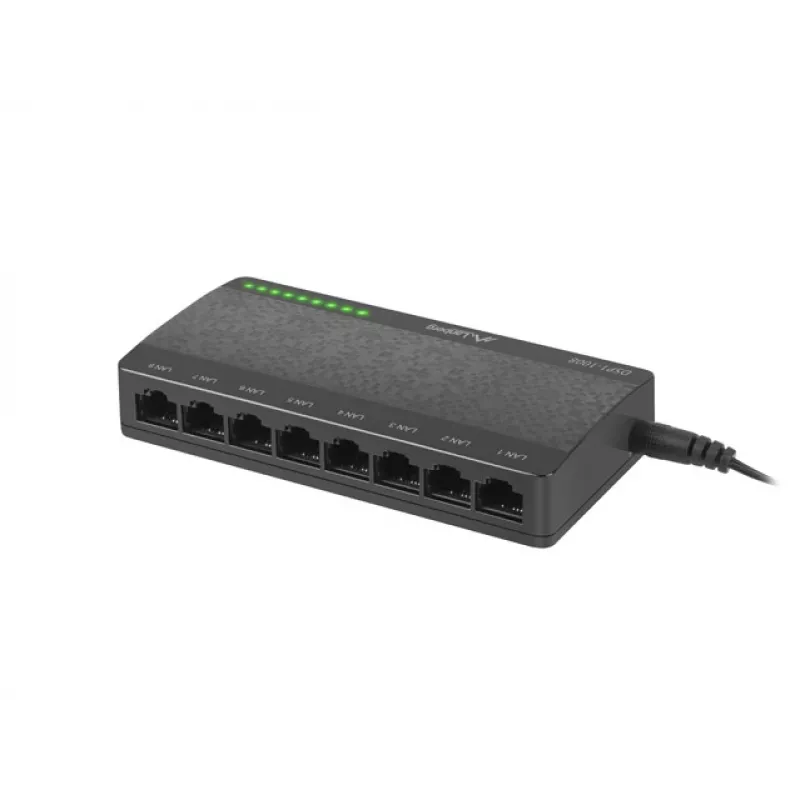

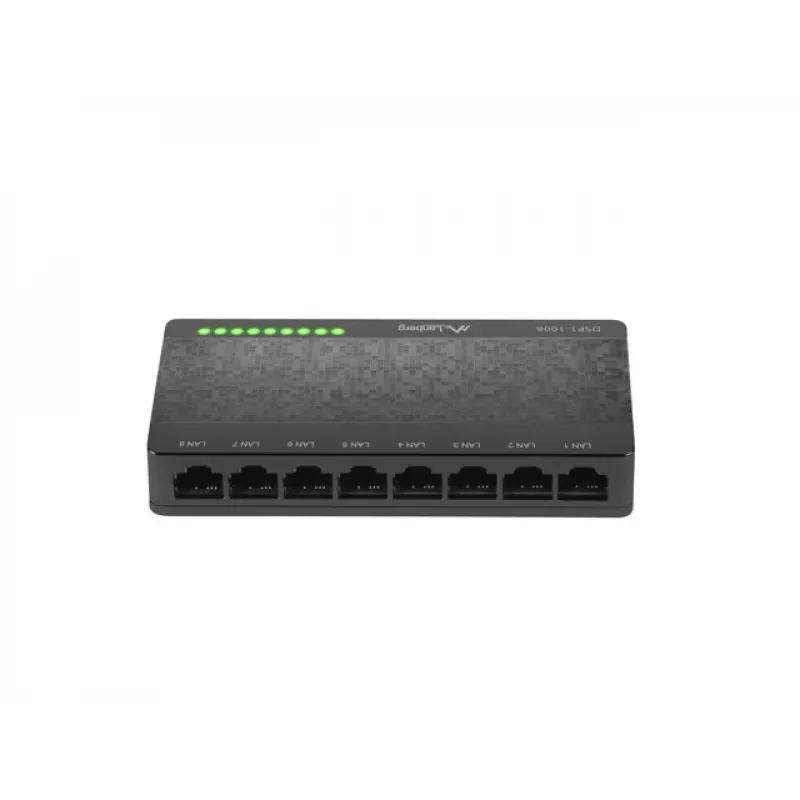

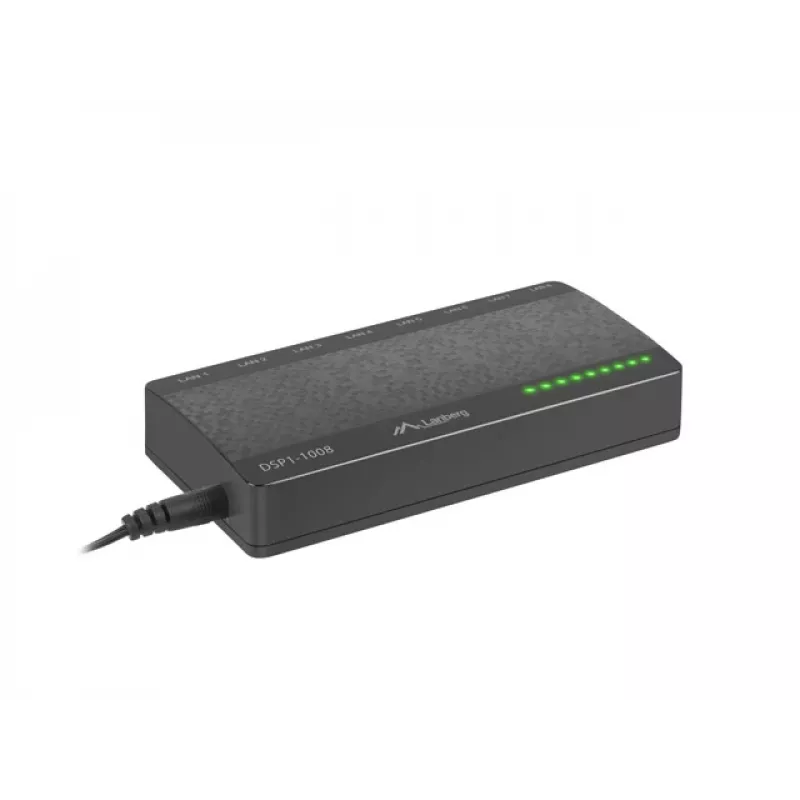

Lanberg DSP1-1008 is a compact unmanaged desktop switch with 8 Gigabit Ethernet RJ-45 ports (10/100/1000 Mbps). The device offers plug-and-play operation, automatic connection negotiation and MDI/MDIX support, with a switching bandwidth of 16 Gbps and a MAC address table capacity of 4K entries. Passive cooling ensures silent operation and the slim black casing with mounting holes allows desktop or wall installation for home, SOHO or small office environments.

Advantages

The switch provides straightforward installation without configuration, automatic cable type and link-speed detection, Flow Control (Back Pressure in Half-Duplex and IEEE 802.3x in Full-Duplex) and basic MAC-learning/aging functions for stable traffic handling. Its small form factor, low power consumption and silent passive cooling make it suitable where unobtrusive, reliable network connectivity is required.

Suitable for

• Home networks and multimedia streaming
• SOHO and small office networks
• Expanding wired ports for routers or access points
• Silent desktop or wall-mounted installations

Key specifications

• Ports: 8 x RJ-45 10/100/1000 Mbps
• Switching bandwidth: 16 Gbps
• MAC address table: 4K entries
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Flow control: Back Pressure (Half-Duplex), IEEE 802.3x (Full-Duplex)
• Cooling: Passive (fanless)
• Power: External adapter (AC 100–240 V, 50/60 Hz -> DC 5 V, 1.0 A)
• Power consumption: Max. 2.15 W
• Indicators: Power, Link/ACT per LAN port
• Dimensions: 124 x 59 x 23 mm
• Weight: 0.15 kg

How to use

Place the switch on a flat surface or mount it on a wall using the provided mounting holes. Connect the external 5 V DC power adapter to the device and plug it into a mains outlet. Use standard Cat5e or Cat6 Ethernet cables to connect devices to any of the 8 RJ-45 ports; the switch will automatically negotiate link speed and MDI/MDIX. LED indicators show power status and per-port link/activity. No software configuration is required for normal operation.

Recommendations

Install the switch in a well-ventilated indoor location away from direct heat sources. For gigabit performance use Cat5e or Cat6 cables. Ensure the power adapter matches the specified input/output ratings. For mixed duplex environments, enable appropriate flow control on connected devices if supported to avoid packet loss.
