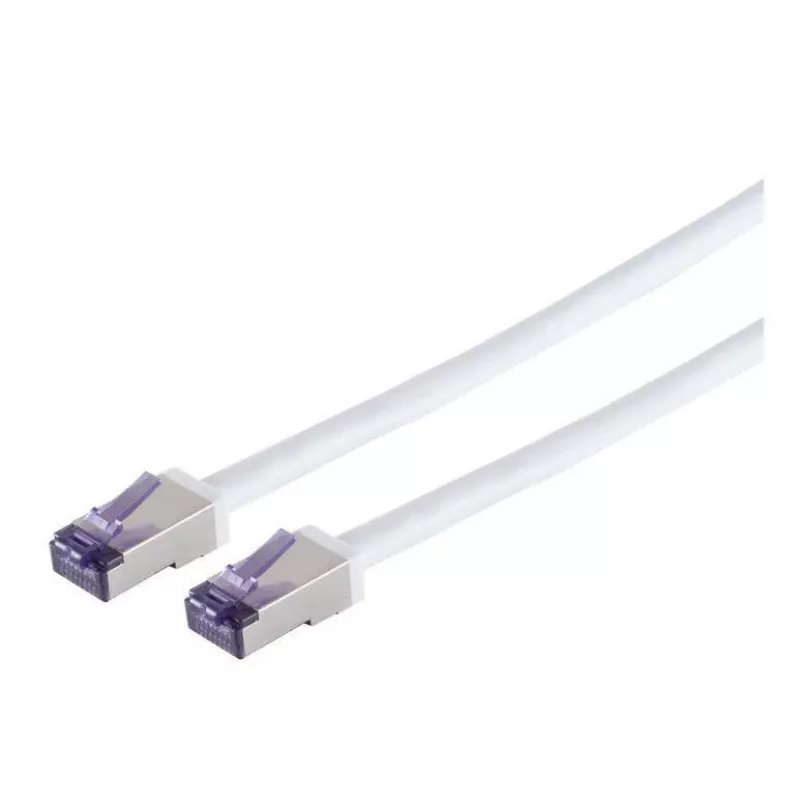

Lanview LVN-CAT6A-FLEX-1MWH sieťový kábel biely 1 m S/FTP (S-STP)

Lanview High-Flex Cat6a Patch Cable (LVN-CAT6A-FLEX-1MWH) is a 1 m straight-through networking cable designed for high-speed data transmission up to 10000 Mbit/s and bandwidth up to 500 MHz. The cable uses S/FTP shielding to minimise electromagnetic interference and is fitted with gold-plated RJ-45 connectors for reliable contact and improved durability. Its white jacket and flexible construction suit installations in demanding environments where space and bend radius are considerations.

Advantages

The S/FTP shielding class protects against crosstalk and external interference, supporting stable 10 Gbit/s connections. Gold-plated RJ-45 connectors (50 µ") provide better conductivity and corrosion resistance. The high-flex design improves handling in tight runs and patch panels while maintaining signal integrity.

Suitable for

• 10 Gbit/s Ethernet links in data centres and server rooms
• High-bandwidth office networks and workstations
• Patch panels, switches and network equipment requiring 1 m patch leads
• Environments with potential EMI where screened cable is required

Key specifications

• Cable length: 1 m
• Cable category: Cat6a, S/FTP
• Maximum speed: up to 10000 Mbit/s
• Bandwidth: up to 500 MHz
• Connectors: RJ-45 to RJ-45, gold-plated contacts (50 µ")
• Cable type: Straight-through
• Colour: White
• Weight: 0.04 kg

How to use

Connect one RJ-45 end to your network device (switch, router or NIC) and the other end to the corresponding port on the second device or patch panel. Ensure connectors are fully inserted until the latch clicks. Avoid sharp bends and excessive pulling; maintain recommended bend radius to preserve shielding and conductor integrity.

Recommendations

For optimal performance, use this Cat6a S/FTP patch cable for short interconnects (patch panels to switches or switch to server) and keep runs within its intended 1 m length. Install away from strong electrical noise sources when possible and verify network link speeds after installation.
