Lanview LVN125306 RJ45 konektor kábla, transparentný

The Lanview LVN125306 RJ45 wire connector is a male plug designed for terminating both stranded and solid network cables. Its transparent housing and compact dimensions (13 mm width, 22 mm depth) make it suitable for visible patching and space-efficient installations; the pack contains 50 connectors.

Advantages

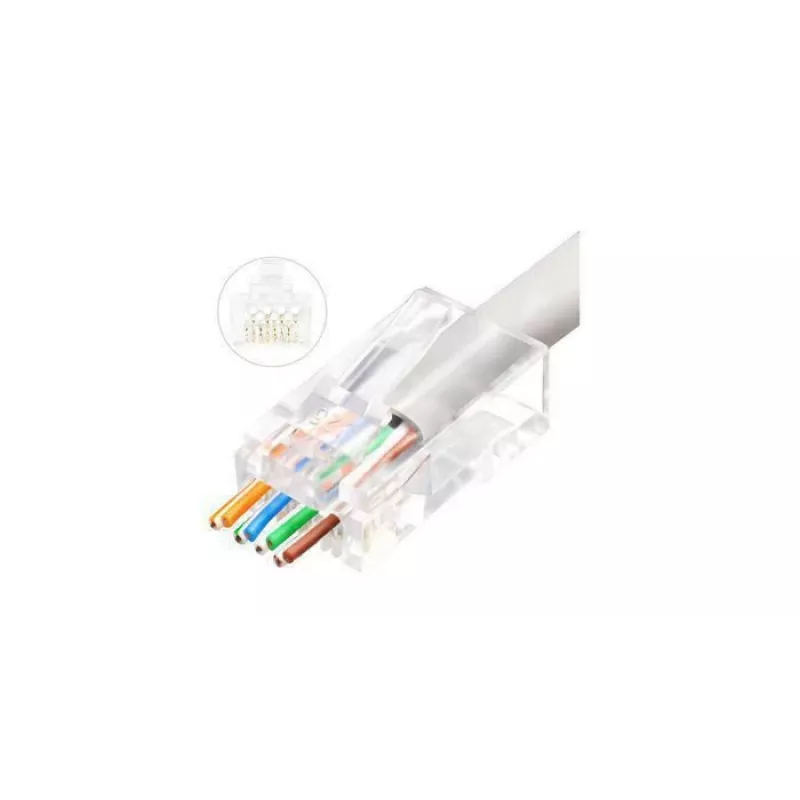

The connector uses an easy-connect terminating principle that allows conductors to be pulled through the front of the connector, simplifying installation. The design reduces the distance between the pair twist and the contact pins to improve signal performance. The transparent body permits visual inspection of conductor placement.

Suitable for

• Terminating Cat5e/Cat6 network cables (stranded or solid conductors)
• Patching panels, wall jacks and short cable assemblies
• Small-scale installations and repair or replacement tasks

Key specifications

• Brand: Lanview
• Manufacturer part number (MPN): LVN125306
• EAN: 5704174534624
• Connector type: RJ45 male
• Housing color: transparent
• Pack quantity: 50 pieces
• Weight (pack): 156 g
• Dimensions (per connector): 13 mm (W) × 22 mm (D)

How to use

Prepare the cable by stripping the outer sheath to expose the twisted pairs, untwist to the minimum length recommended for your application, and align conductors according to the wiring standard in use (e.g., T568A/T568B). Insert each conductor through the front of the connector until it seats against the contact pins, then crimp according to the crimp tool instructions to secure the contacts and housing.

Recommendations

For best results, follow the chosen wiring standard consistently, avoid excessive untwisting of pairs to maintain performance, and verify connections with a cable tester after termination. Use a compatible RJ45 crimp tool rated for the connector type to ensure reliable contact and strain relief.
